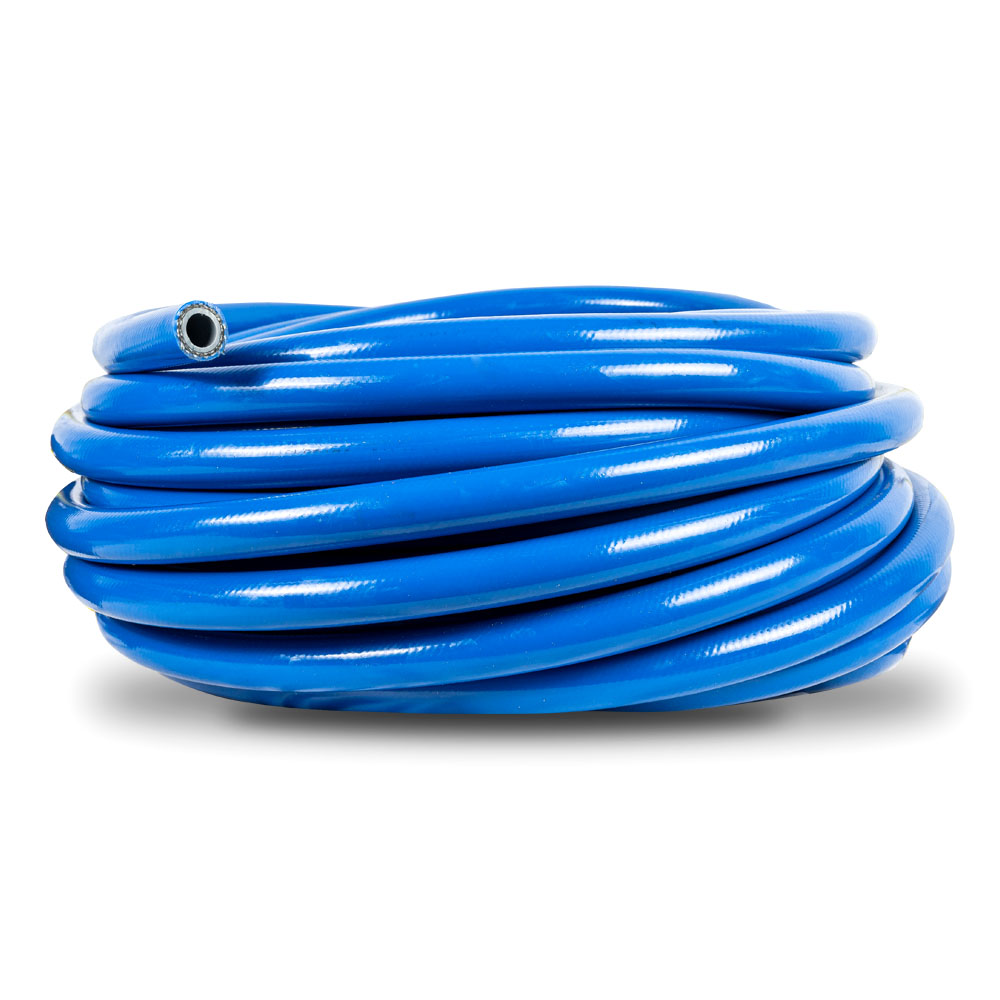

HYGIENE ULTRA 30M 1/2" MM
Description

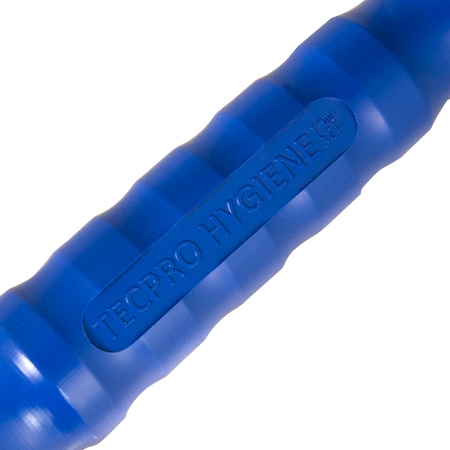

This is Hygiene Ultra 40 hose, suitable for contact with liquid food products featuring an antimicrobial top layer. The antimicrobial properties of this hose will stop the growth of micro-organisms, dramatically lowering the risk of cross contamination. This hose has a diameter of DN12 which makes it a good choice for anyone using a compressed air connection on their foam injector.
Technical Spec

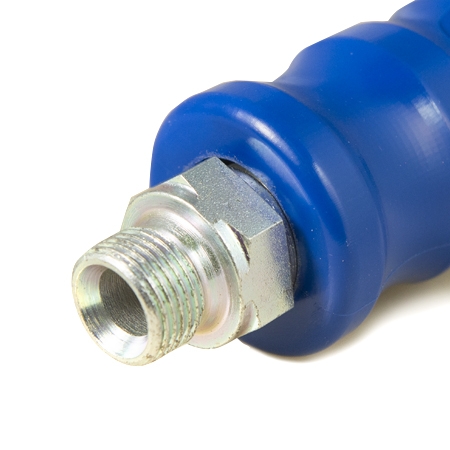

Inlet | 1/2" Male |
---|---|
Outlet | 1/2" Male |
Bar | 40 |
Colour | Blue |
Length | 30m |
Max Temp °C | 70 |

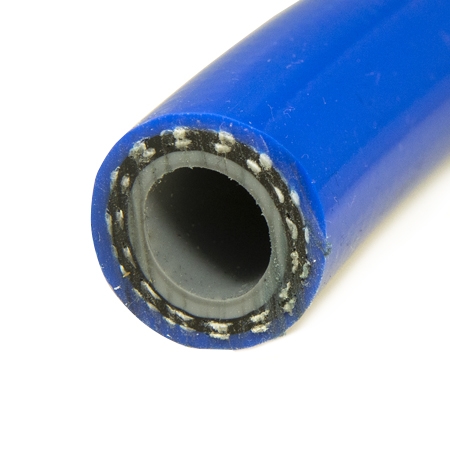

DN Internal Diameter | 12mm |
Commodity Code | 3917390099 |
Weight | 4.95 |
Country of Origin | United Kingdom |
Datasheets
Need help?
Contact G&S 01768 865985
Overview
Open plant cleaning using foam
Open plant cleaning enures all machines and surfaces in a food processing environment are thoroughly cleaned and disinfected. As a producer or processor of foods it is critical to maintain constant hygiene standards. This is done by applying a clingy foam using specialist equipment such as a foam injector and foam lance. Due to it's internal 12mm diameter our Hygiene Ultra 40 hose is ideal for a system that generates foam using a compressed air module at the injector. This diamteter enables the foam to travel down the hose without collapsing back into a liquid state, the foam exits via a specialist foam lance or wash gun. Another major benefit of using our exclusive Hygiene Ultra 40 hose as part of a cleaning system is it's antimicrobial top layer. The properties of this layer will stop the growth of micro-organisms, dramatically lowering the risk of cross contamination.
G&S have a range of equipment dedicated to cleaning food processing environments. Take a look at our Food Industry page for more information.


Help with sizes
Foam Injector size guide.
Use the below chart to help you select the correct injector size.
Pressure
Flow
20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 190 | 200 | 210 | 220 | 230 | 240 | 250 | ||
10 |
2.2 (15) |
2.0 (15) |
1.8
(13) |
1.7
(10) |
1.6
(075) |
1.5 (07) |
1.4
(07) |
1.3
(05) |
|||||||||||||||||
11 |
2.2 (15) |
2.0 (15) |
1.9 (13) |
1.8 (13) |
1.7
(10) |
1.6
(075) |
1.5 (07) |
1.4
(07) |
1.3
(05) |
||||||||||||||||
12 |
2.2 (15) |
2.1 (15) |
2.0 (15) |
1.9 (13) |
1.8 (13) |
1.7
(10) |
1.6
(075) |
1.5
(07) |
1.4
(07) |
1.3 (05) |
|||||||||||||||
13 |
2.2 (15) |
2.1 (15) |
1.9
(13) |
1.8
(13) |
1.7
(10) |
1.6
(075) |
1.5
(07) |
1.4
(07) |
14 |
2.2 (15) |
2.1 (15) |
2.0 (15) |
1.9
(13) |
1.8
(13) |
1.7
(10) |
1.6
(075) |
1.5
(07) |
1.4
(07) |
|||||||
15 |
2.2 (15) |
2.1 (15) |
2.0 (15) |
1.9
(13) |
1.8
(13) |
1.7
(10) |
1.6
(075) |
1.5
(07) |
1.4 (07) |
||||||||||||||||
16 |
2.2 (15) |
2.1 (15) |
2.0
(15) |
1.9 (13) |
1.8
(13) |
1.7
(10) |
1.6
(075) |
||||||||||||||||||
18 |
2.3 (20) |
2.2 (15) |
2.1
(15) |
2.0
(15) |
1.9
(13) |
1.8
(13) |
1.7
(10) |
1.6 (075) |
|||||||||||||||||
19 |
2.3 (20) |
2.3 (20) |
2.2 (15) |
2.1
(15) |
2.0
(15) |
1.9 (13) |
1.8
(13) |
1.7
(10) |
|||||||||||||||||
21 |
1.9
(13) |
1.8
(13) |
1.7
(10) |
You will need to know the flow rate and pressure of the pressure washer or system that the injector is to be installed.
Firstly select the closest flow rate (round up if required)
Then move right across the chart until you are at the closest pressure column.
The top number (1.6) is the injector size.
For foam injectors not using compressed air the number in brackets underneath is the correct ST75 foam lance size required.
Alternative | ||||
Injector Size | Injector Part No | ST75 Size | ST75 Foam Lance | ST72 Foam Lance |
1.3 | 200160500 | 05 | 200075576 | 200072633 |
1.4 | 200160505 | 07 | 200075572 | 200072633 |
1.5 | 200160510 | 07 | 200075572 | 200072633 |
1.6 | 200160515 | 075 | 200075572 | 200072633 |
1.7 | 200160520 | 10 | 200075573 | 200072625 |
1.8 | 200160525 | 13 | 200075578 | 200072625 |
1.9 | 200160530 | 13 | 200075578 | 200072625 |
2.0 | 200160535 | 15 | 200075579 | 200072629 |
2.1 | 200160540 | 15 | 200075579 | 200072629 |
2.2 | 200160545 | 15 | 200075579 | 200072629 |
2.3 | 200160550 | 20 | Please Contact | 200072629 |
