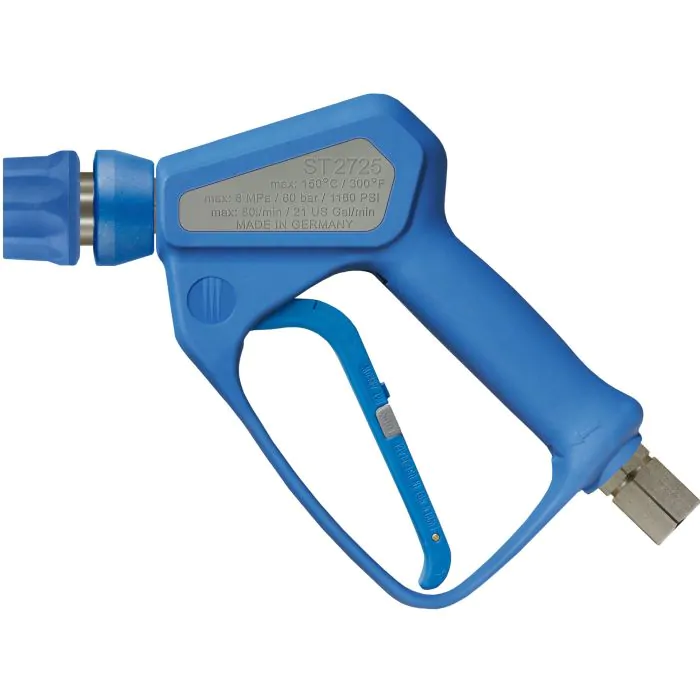

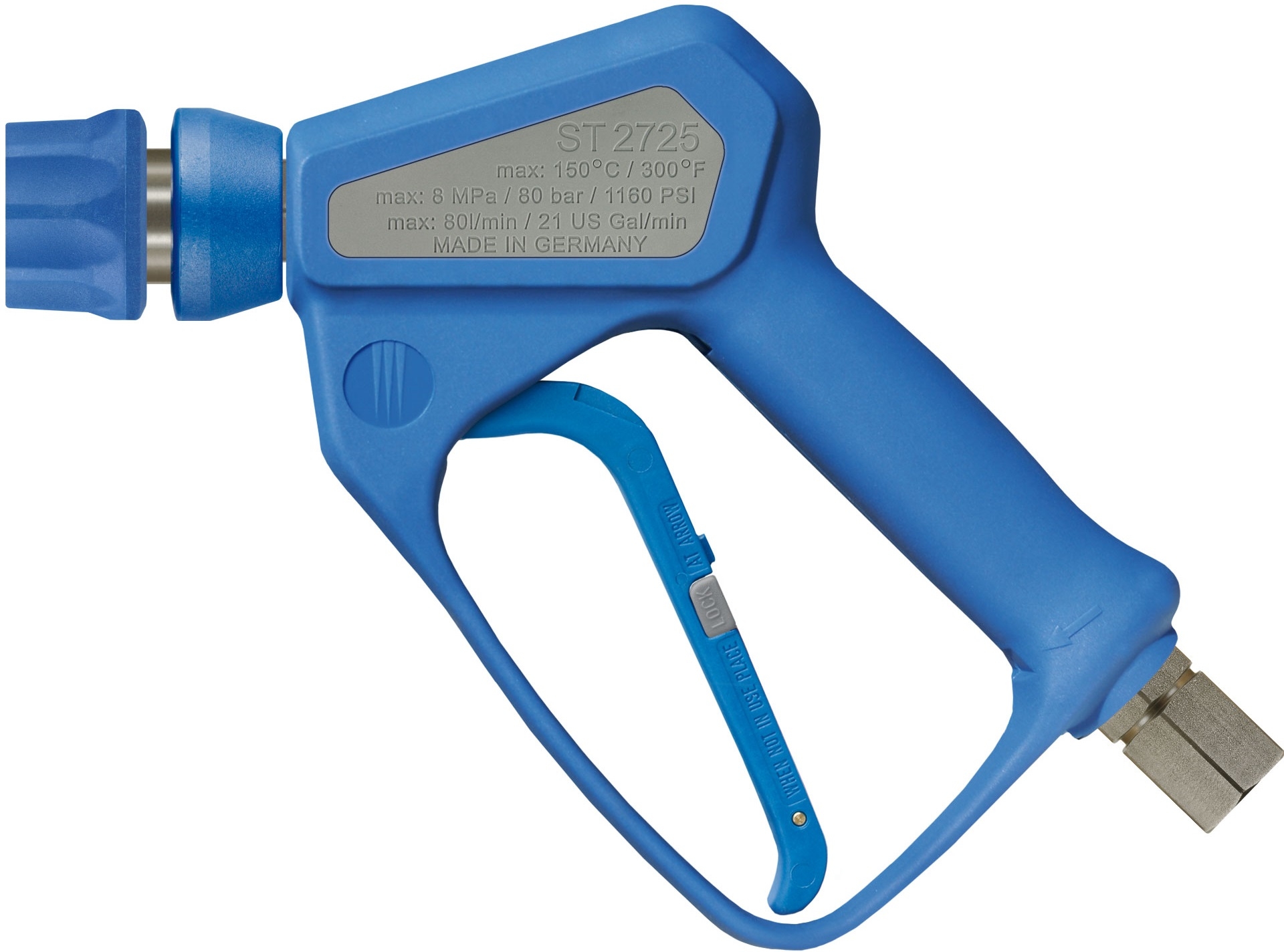

ST2725S GUN 1/2"F SWIVEL x ST3100 COUPLING
Description
The RM Suttner ST2725 stainless steel gun has the benefit of having a chemically resistant valve mechanism and low trigger force technology. This gun is made from impact resistant food safe plastic, which make it ideal for cleaning food processing environments.

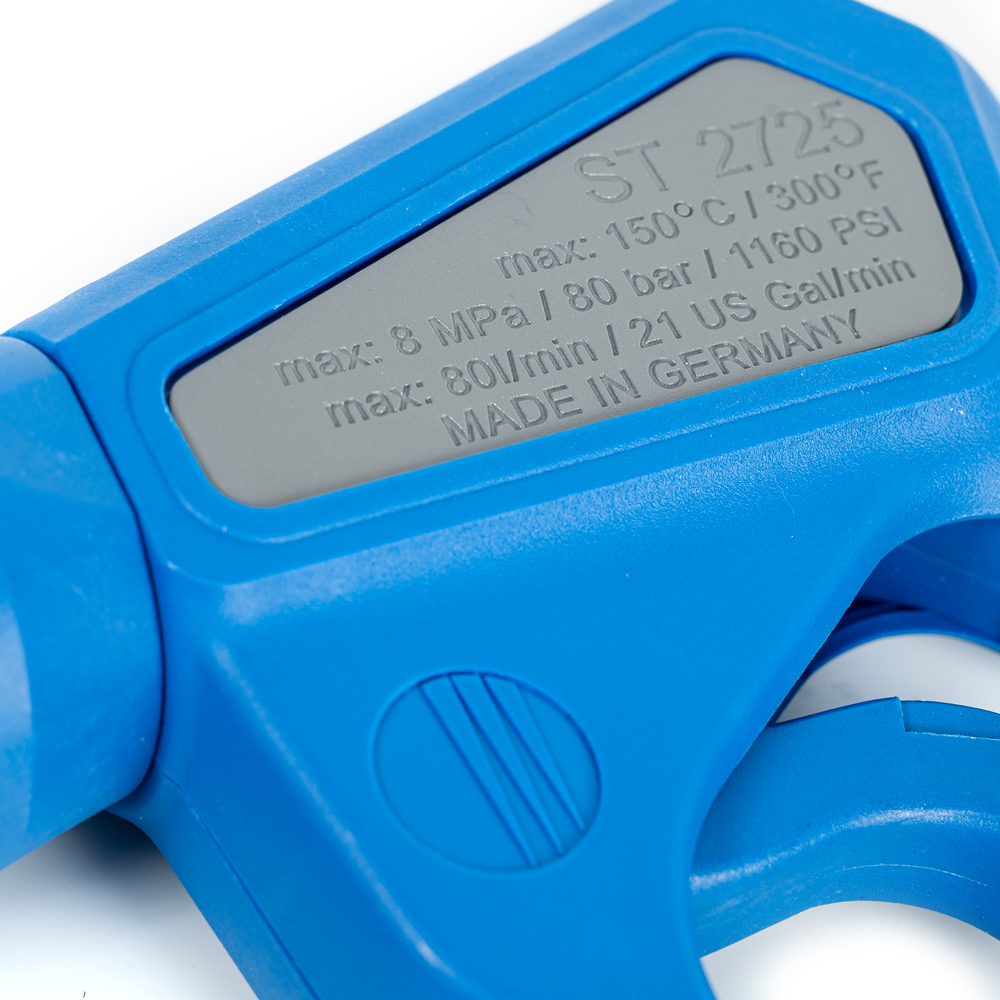

Technical Spec
Inlet | 1/2" Female Swivel |
---|---|
Outlet | ST3100 Female |
Max LPM | 80 LPM |
Material | Stainless Steel |
Bar | 80 |
Colour | Blue |
Max Temp °C | 150 |
Commodity Code | 8424200000 |
Weight | 0.80 |
Country of Origin | Germany |
Datasheets
-
ST2725 Exploded View Download
Need help?
Contact G&S 01768 865985
Overview

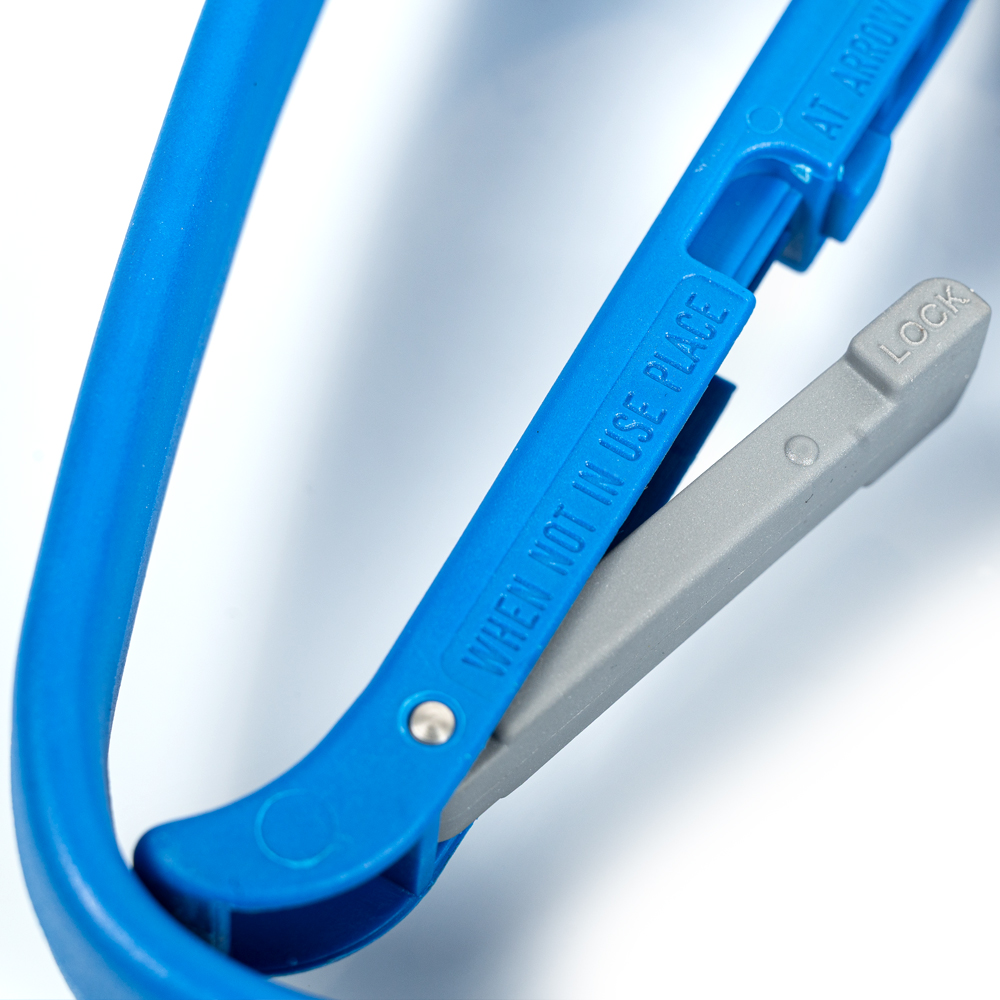

The Suttner ST2725 guns are designed for medium pressures and high flows. These professional guns have a progressive valve closing system, chemically resistant stainless steel valve piston with PEEK valve seat. The ST2725 guns also come with Suttner’s LTF trigger technology, which means that the trigger is 40% easier to pull and 90% easier to hold when in operation, compared to standard wash guns. The outer case is made from impact resistant food safe plastic which comply with Regulation (EC) No. 1935/2004
Spare Parts
- 1. Housing G1/4 female SKU: 040001045
- 2. Pipe inlet SKU: 070001157
- 3. Axle for trigger SKU: 040007081
- 4. Pin SKU: 040007060
- 5. Support plate SKU: 040007059
- 6. Half Shell with handle ST-2725 SKU: 020008647
- 7. Half Shell ST-2725 SKU: 020008648
- 8. Label ST-2725 SKU: 020009315
- 9. Screw 3.5x16 SKU: 040000051
- 10. Adaptor SKU: 020000247
- 11. Housing G1/4 female SKU: 040001044
- 12. Piston rod complete SKU: 202700400
- 13. Trigger complete blue SKU: 202725455
- 14. Pressure roller complete SKU: 202600400
- 15. Swivel G1/2 FT - G1/4 MT SKU: 200340050

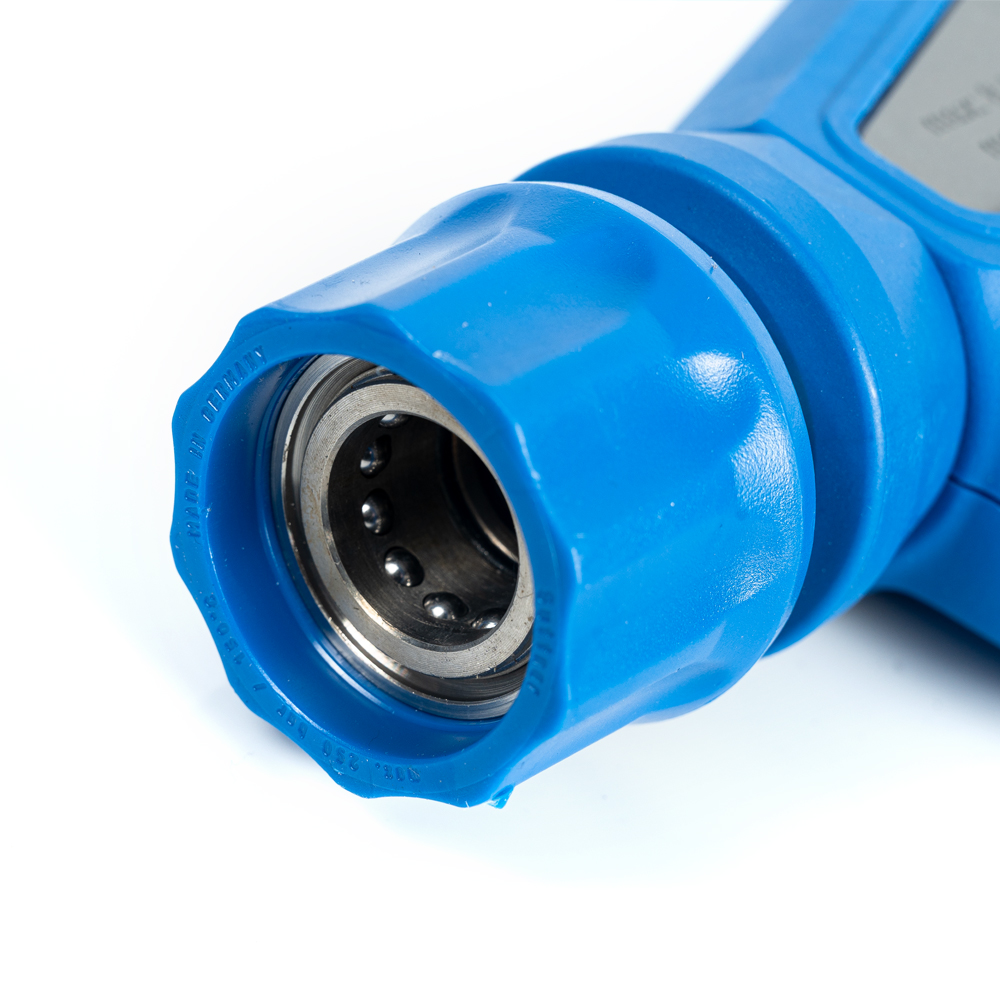

- 16. Coupling-sleeve SKU: 203100475
- 17. Valve seat SKU: 202725480
- 18. Conical nipple SKU: 202725450
