  1. Home
  2. ST75 FOAM HEAD 1.9 (10) 1/4"F BLUE

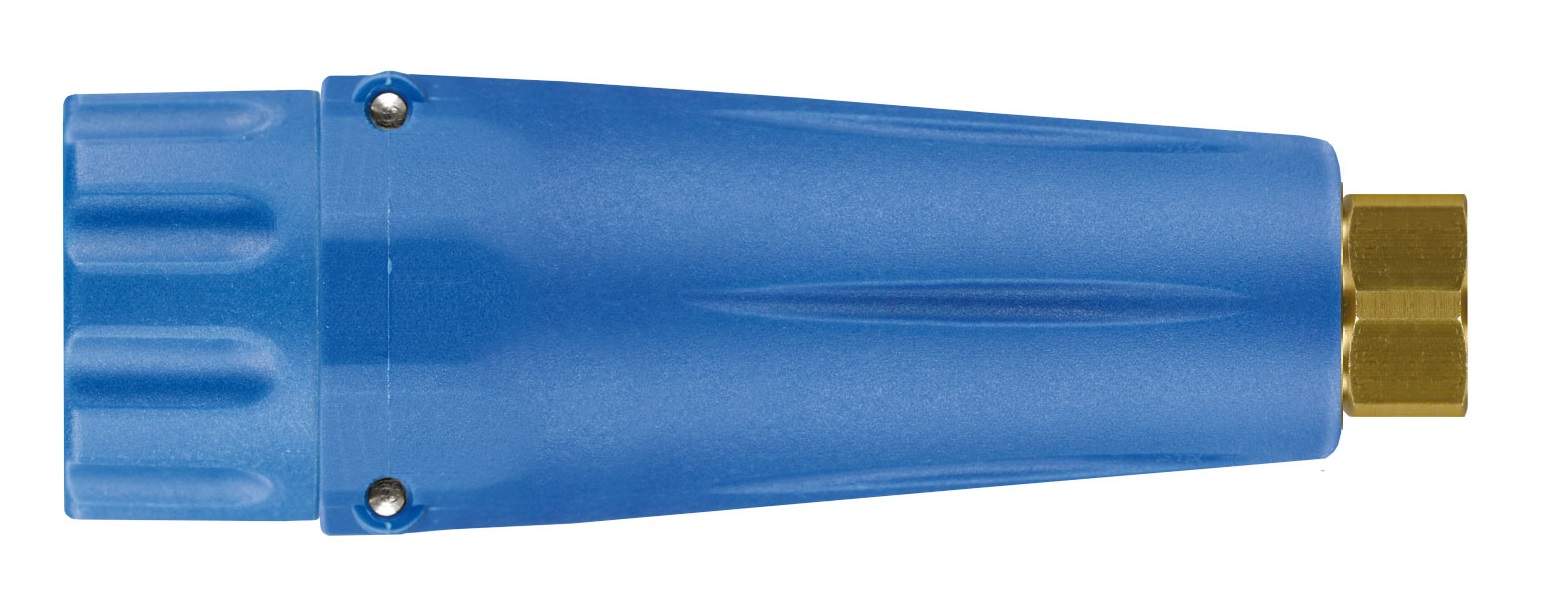

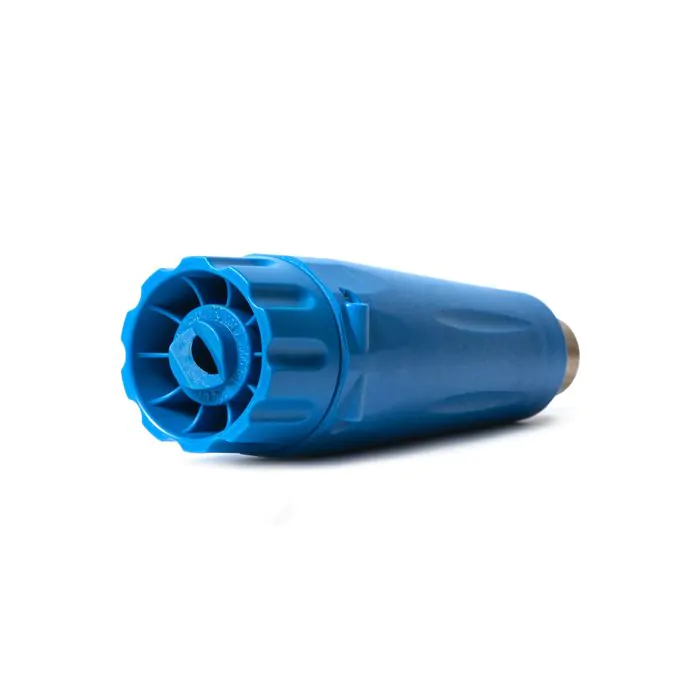

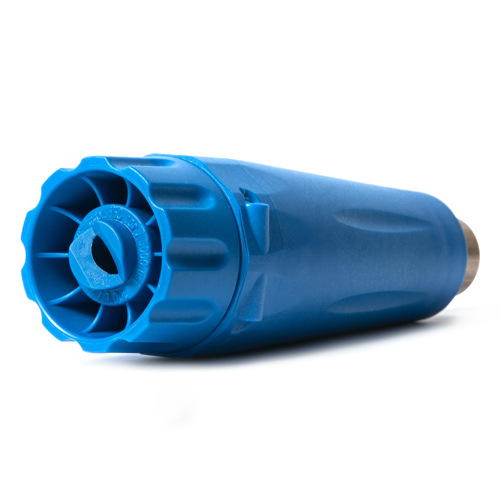

ST75 FOAM HEAD 1.9 (10) 1/4"F BLUE

ST75 FOAM HEAD 1.9 (10) 1/4"F BLUE

SKU

Technical Spec

Inlet 1/4" Female
Material Brass
Bar 350
Max Temp °C 100
Nozzle Size 1.9mm
Weight 0.16
Country of Origin Germany

Description

The ST75 foam head is a high-quality attachment designed for professional pressure washing. It produces thick, consistent foam when paired with a compatible foam injector, helping to loosen dirt and improve cleaning results.

Datasheets

Need help?

Contact G&S 01768 865985

Related Products
O-RING FOR QUICK SCREW COUPLINGS
O-RING FOR QUICK SCREW COUPLINGS
Product Code: 79020
View Product
FOAM PAD FOR LS3, ST73, ST75, ST76 & ST175
FOAM PAD FOR LS3, ST73, ST75, ST76 & ST175
Product Code: GS25151251
View Product
ST75 NOZZLE 1.9 (10)
ST75 NOZZLE 1.9 (10)
Product Code: 200075410
View Product

Overview

ST75 Foam Head 1.9 (10) 1/4" F

The ST75 Foam Head is a high-performance lance or gun attachment designed for professional cleaning applications. Engineered by R+M Suttner in Germany, it delivers consistent, thick foam when used with a compatible foam injector, improving cleaning efficiency.

  • Produces dense, high-quality foam for effective pre-wash and cleaning
  • Designed for use with easywash365+ foam injectors
  • Foam helps loosen dirt and grime, improving pressure washing results
  • Durable brass construction for long service life
  • Lightweight design (0.16 kg) for easy handling
  • Manufactured in Germany, ensuring high engineering quality
Measurements

Technical Specification

  • Nozzle Size: 1.9mm (10)
  • Material: Brass
  • Max Working Pressure: 350bar
  • Max Temperature: 100°c
Measurements

Export Information

  • Commodity Code: 8424200000
  • Country of Origin: Germany
  • Weight: 160g

Use this chart to find the correct sized foam injector and accessories to create foam.

 You will need to know the flow and pressure of the pressure washer or system that the injector is to be installed onto. Firstly select the closest flow rate on the left (round up if required), then move right across the chart until you are at the closest pressure column. The top number is the injector size you require and the number in brackets is the foam head size, click on the box to view the required accessories and different foam injector options available.



Pressure
ST72 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250
Flow
10 2.2
(15) 		2.0
(15)		 1.8
(13)		 ← 1.7
(10)		 ← 1.6
(075)		 ← 1.5
(075)		 1.4
(06)		 ← 1.3
(05)		 ←
11 2.2
(15)		 2.0
(15)		 1.9
(13)		 1.8
(13)		 1.7
(10)		 ← 1.6
(075)		 ← 1.5
(075)		 1.4
(06)		 ← 1.3
(05)		 ←
12 2.2
(15)		 2.1
(15)		 2.0
(15)		 1.9
(13)		 1.8
(13)		 1.7
(10)		 ← 1.6
(075)		 ← 1.5
(075)		 ← 1.4
(06)		 ← 1.3
(05)
13 2.2
(15)		 2.1
(15)		 1.9
(13)		 ← 1.8
(13)		 ← 1.7
(10)		 ← 1.6
(075)		 ← 1.5
(075)		 ← 1.4
(06)		 ←
14 2.2
(15)		 2.1
(15)		 2.0
(15)		 1.9
(13)		 ← 1.8
(13)		 ← 1.7
(10)		 ← 1.6
(075)		 ← 1.5
(075)		 ← 1.4
(06)		 ←
15 2.2
(15)		 2.1
(15)		 2.0
(15)		 1.9
(13)		 ← 1.8
(13)		 ← 1.7
(10)		 ← 1.6
(075)		 ← 1.5
(075)		 ← 1.4
(06)
16 2.2
(15)		 2.1
(15)		 2.0
(15)		 ← 1.9
(13)		 1.8
(13)		 ← 1.7
(10)		 ← 1.6
(075)		 ←
18 2.3
(20)		 2.2
(15)		 2.1
(15)		 ← 2.0
(15)		 ← 1.9
(13)		 ← 1.8
(13)		 ← 1.7
(10)		 ← 1.6
(075)
19 2.3
(20)		 ← 2.2
(15)		 2.1
(15)		 ← 2.0
(15)		 ← 1.9
(13)		 1.8
(13)		 ← 1.7
(10)		 ←
20 2.8
(3x08)		 2.5
(3x07)		 2.5
(3x07)		 2.3
(3x06)		 2.2
(3x05)		 ← 2.1
(3x05)		 ← 2.0
(3x05)		 ← 1.9
(13)		 ← 1.8
(13)		 ← 1.7
(10)		 ←
21 2.8
(3x075)		 2.5
(3x07)		 2.5
(3x07)		 2.3
(3x06)		 ← 2.2
(3x05)		 ← 2.1
(3x05)		 ← 2.0
(3x05)		 ← 1.9
(13)		 ← 1.8
(13)		 ←
