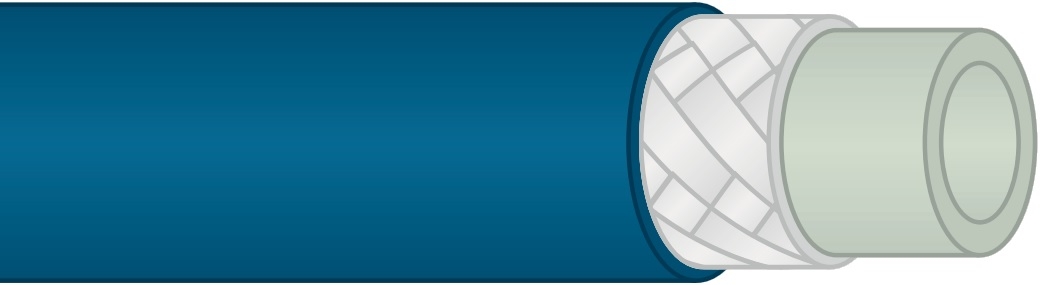

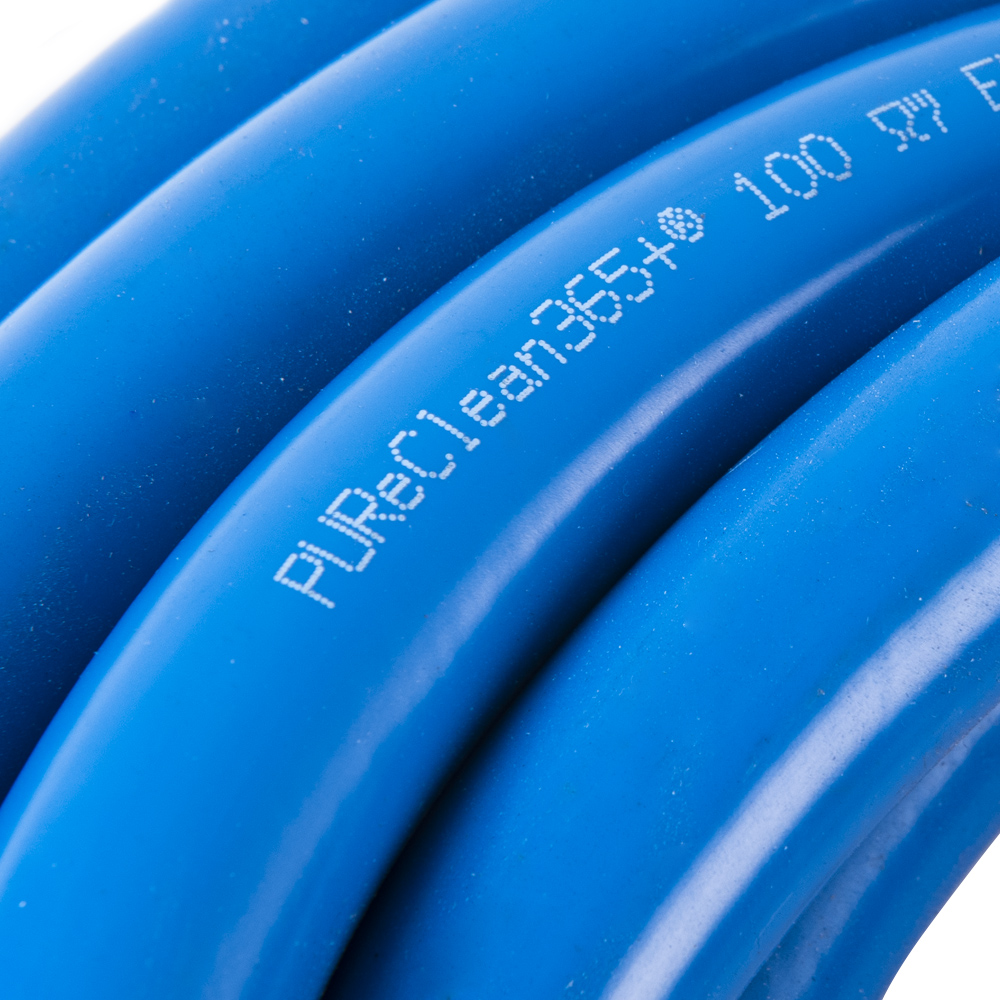

LOW PRESSURE HOSE, BLUE, PUReClean365+ FOOD HOSE, 18 BAR, PER METRE
Description
PUReClean365+® - Food hose is suitable for contact with liquid food products. Suitable for water and water mixes of usual cleaning detergents.
The price for this product is per metre with a minimum order of 5 metres. When adding your quantity orders placed must be in increments of 5.
Technical Spec
| Material | PVC |
|---|---|
| Bar | 18 |
| Colour | Blue |
| Max Temp °C | 100 |
| DN Internal Diameter | 12mm |
| Weight | 0.30 |
| Country of Origin | Germany |
Datasheets
-
PUReClean365+ Food Industry Hose Download
Need help?
Contact G&S 01768 865985
Overview
PUReClean 100 12mm Blue Hygiene Hose
Field of application: foam hose and pre-spraying hose for the food industry. Suitable for the contact with liquid food products » Food hose according to (EG) 1935/2004, (EU) 10/2011 and (EG) 2023/2006 » Especially designed for industrial foam cleaning applications » Threefold coated PVC hose with a flush surface » Increased 1-layer rot-proof textile mesh. » Suitable for: water and water mixes of usual cleaning detergents
Help with sizes
Foam Injector size guide.
Use the below chart to help you select the correct injector size.
Pressure
Flow
| 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 190 | 200 | 210 | 220 | 230 | 240 | 250 | ||
| 10 |
2.2 (15) |
2.0 (15) |
1.8
(13) |
1.7
(10) |
1.6
(075) |
1.5 (07) |
1.4
(07) |
1.3
(05) |
|||||||||||||||||
| 11 |
2.2 (15) |
2.0 (15) |
1.9 (13) |
1.8 (13) |
1.7
(10) |
1.6
(075) |
1.5 (07) |
1.4
(07) |
1.3
(05) |
||||||||||||||||
| 12 |
2.2 (15) |
2.1 (15) |
2.0 (15) |
1.9 (13) |
1.8 (13) |
1.7
(10) |
1.6
(075) |
1.5
(07) |
1.4
(07) |
1.3 (05) |
|||||||||||||||
| 13 |
2.2 (15) |
2.1 (15) |
1.9
(13) |
1.8
(13) |
1.7
(10) |
1.6
(075) |
1.5
(07) |
1.4
(07) |
14 |
2.2 (15) |
2.1 (15) |
2.0 (15) |
1.9
(13) |
1.8
(13) |
1.7
(10) |
1.6
(075) |
1.5
(07) |
1.4
(07) |
|||||||
| 15 |
2.2 (15) |
2.1 (15) |
2.0 (15) |
1.9
(13) |
1.8
(13) |
1.7
(10) |
1.6
(075) |
1.5
(07) |
1.4 (07) |
||||||||||||||||
| 16 |
2.2 (15) |
2.1 (15) |
2.0
(15) |
1.9 (13) |
1.8
(13) |
1.7
(10) |
1.6
(075) |
||||||||||||||||||
| 18 |
2.3 (20) |
2.2 (15) |
2.1
(15) |
2.0
(15) |
1.9
(13) |
1.8
(13) |
1.7
(10) |
1.6 (075) |
|||||||||||||||||
| 19 |
2.3 (20) |
2.3 (20) |
2.2 (15) |
2.1
(15) |
2.0
(15) |
1.9 (13) |
1.8
(13) |
1.7
(10) |
|||||||||||||||||
| 21 |
1.9
(13) |
1.8
(13) |
1.7
(10) |
||||||||||||||||||||||
You will need to know the flow rate and pressure of the pressure washer or system that the injector is to be installed.
Firstly select the closest flow rate (round up if required)
Then move right across the chart until you are at the closest pressure column.
The top number (1.6) is the injector size.
For foam injectors not using compressed air the number in brackets underneath is the correct ST75 foam lance size required.
| Alternative | ||||
| Injector Size | Injector Part No | ST75 Size | ST75 Foam Lance | ST72 Foam Lance |
| 1.3 | 200160500 | 05 | 200075576 | 200072633 |
| 1.4 | 200160505 | 07 | 200075572 | 200072633 |
| 1.5 | 200160510 | 07 | 200075572 | 200072633 |
| 1.6 | 200160515 | 075 | 200075572 | 200072633 |
| 1.7 | 200160520 | 10 | 200075573 | 200072625 |
| 1.8 | 200160525 | 13 | 200075578 | 200072625 |
| 1.9 | 200160530 | 13 | 200075578 | 200072625 |
| 2.0 | 200160535 | 15 | 200075579 | 200072629 |
| 2.1 | 200160540 | 15 | 200075579 | 200072629 |
| 2.2 | 200160545 | 15 | 200075579 | 200072629 |
| 2.3 | 200160550 | 20 | Please Contact | 200072629 |
