UDOR PUMP BWTC2120s 21L 200 BAR HOT
Description
BWT series - High water temperature 85°C - Udor pumps produce a flow from 15 to 21 l/m and operate at a maximum of 150 bar. These pumps are driven by electric or hydraulic motors and by diesel engines, suitable for car-wash, pressure washing, food and pharmaceutical industries. Udor pumps recommend performing an oil change after the first 50 hours of use and every 500 hours after that, valve and piston rings should be changed after every 1000 hours of use.
Technical Spec
| Inlet | 1/2" Female |
|---|---|
| Outlet | 3/8" Female |
| Max LPM | 21 LPM |
| Bar | 200 |
| RPM | 1450 RPM |
| Max Temp °C | 85 |
| Kw | 8.1 Kw |
| Commodity Code | 8413506990 |
| Weight | 15.80 |
| Country of Origin | Italy |
Datasheets
Need help?
Contact G&S 01768 865985
Overview

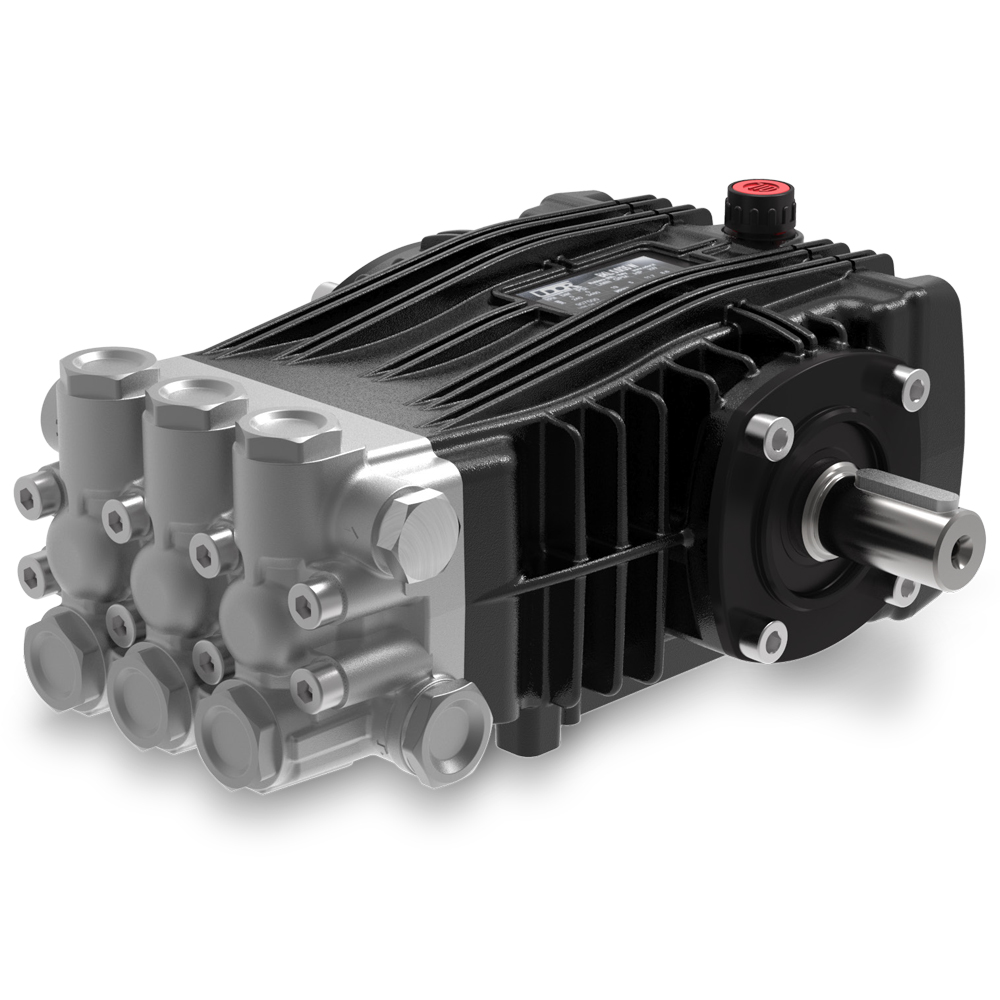

Udor Pump BWTC2120S
Udor pumps of the WTC series are suitable for car wash, pressure washing, pest control & disinfection industries and the food Industry. Udor pumps can be driven by electric or hydraulic motors and diesel engines.
UDOR was founded in 1966, today it develops, manufactures, markets, supplies and services diaphragm pumps and plunger pumps for pumping water, including chemical-added water. Production now covers over 150 models of Plunger Pumps (from 3 to 6 cylinders). UDOR pumps are designed to ensure reliability and long life. Constantly improving products to guarantee quality and upgrade performance. UDOR pumps are developed to be incorporated into various kinds of pumping systems such as: Agricultural Sprayers, High Pressure Washers, Water Cleaners, Fire Fighting Systems, Deicing Equipment, Reverse Osmosis systems, Misting equipment, Lawn Care Sprayers and others. The UDOR organisation complies with the requirements of ISO-9001.
Udor Pumps recommend the following service is performed on your pump:
Oil change: After first 50 hours
Oil change: Every 500 hours
Seal Change: Every 1500 hours
Valve change: Every 3000 hours
If you know the model of Udor pump you are working with and need to find all compatible spares and accessories. Please click the image below to visit our Udor compatibility page.
