ST 40. STAINLESS STEEL AUTOMATIC HOSE REEL
SKU
7404012
Description
Up to 35m Capacity Inlet 1/2" female Outlet 1/2" female For DN 12 hose 300 Bar Max 90°C
= 35m of DN 12 hose capacity.
Technical Spec
| Inlet | 1/2" Female |
|---|---|
| Outlet | 1/2" Female |
| Material | Stainless Steel |
| Bar | 300 |
| Max Temp °C | 90 |
| DN Internal Diameter | 12mm |

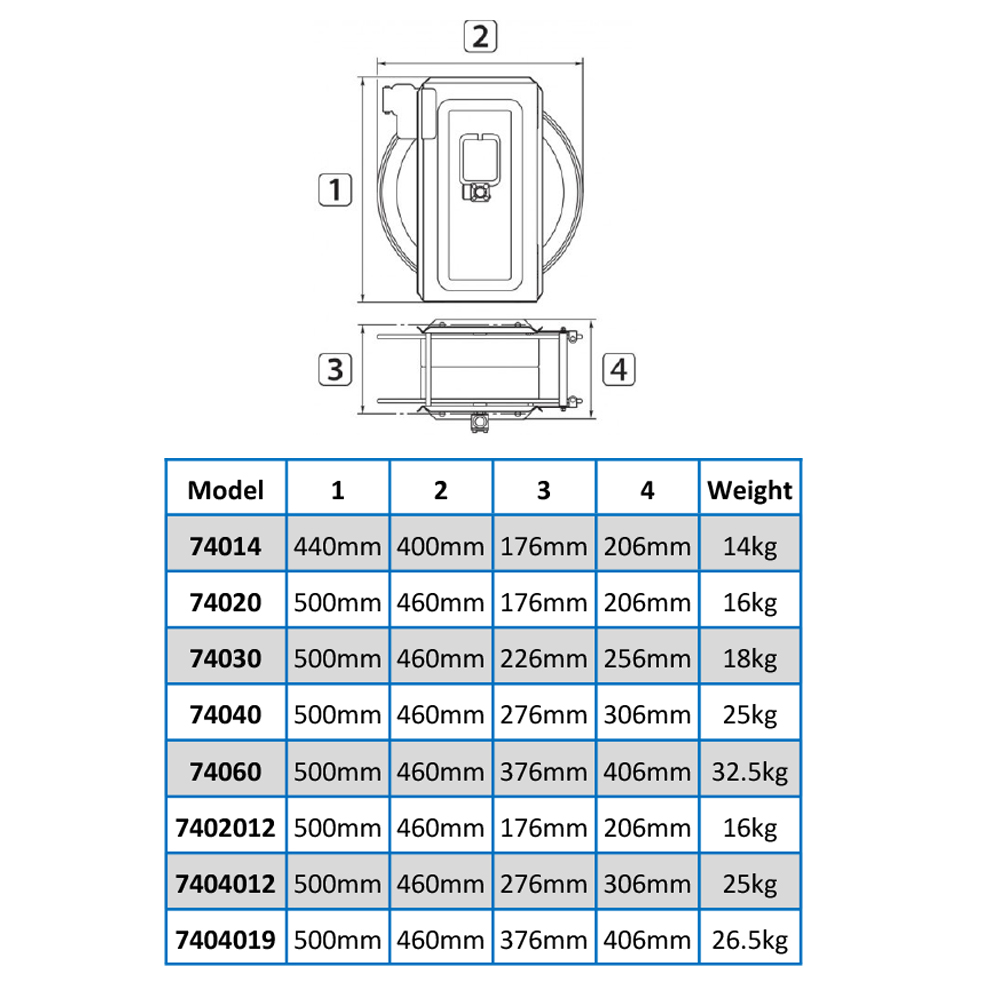

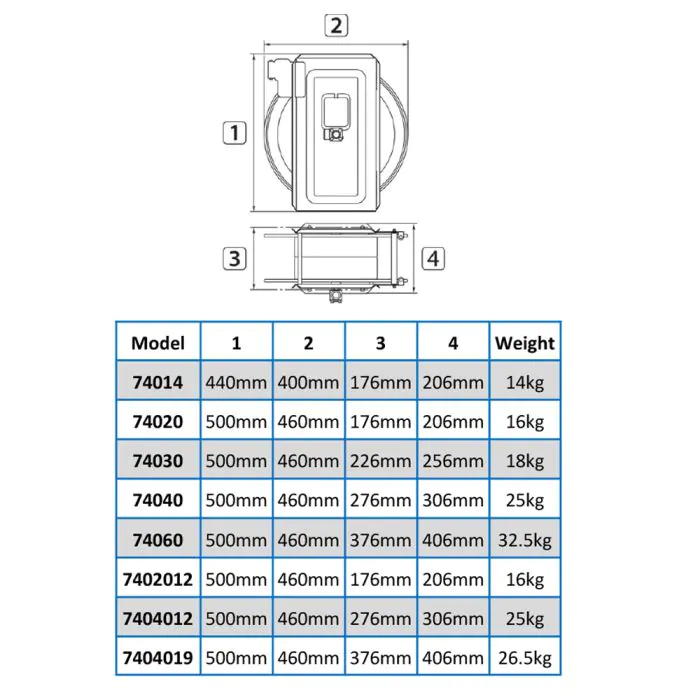

| Dimensions | - Height 500mm - Width 306mm - Depth 460mm - Reel Width 276mm |
| Weight | 25.00 |
Datasheets
Need help?
Contact G&S 01768 865985
Related Products
HOSE STOP 12-30mm BLUE ONLY
Product Code:
74103
ST 30. STAINLESS STEEL AUTOMATIC HOSE REEL
Product Code:
740312
WALL BRACKET WITH SWIVEL
Product Code:
741011
WALL BRACKET WITH SWIVEL
Product Code:
741001
ST322 SWIVEL ELBOW SS 1/2" F X 3/8"M
Product Code:
200322510
HOSE GUIDE, COMPACT.
Product Code:
74106
BOLTS SET FOR WALL SWIVEL BRACKETS
Product Code:
74102
ST 20. STAINLESS STEEL AUTOMATIC HOSE REEL
Product Code:
7402012
Overview

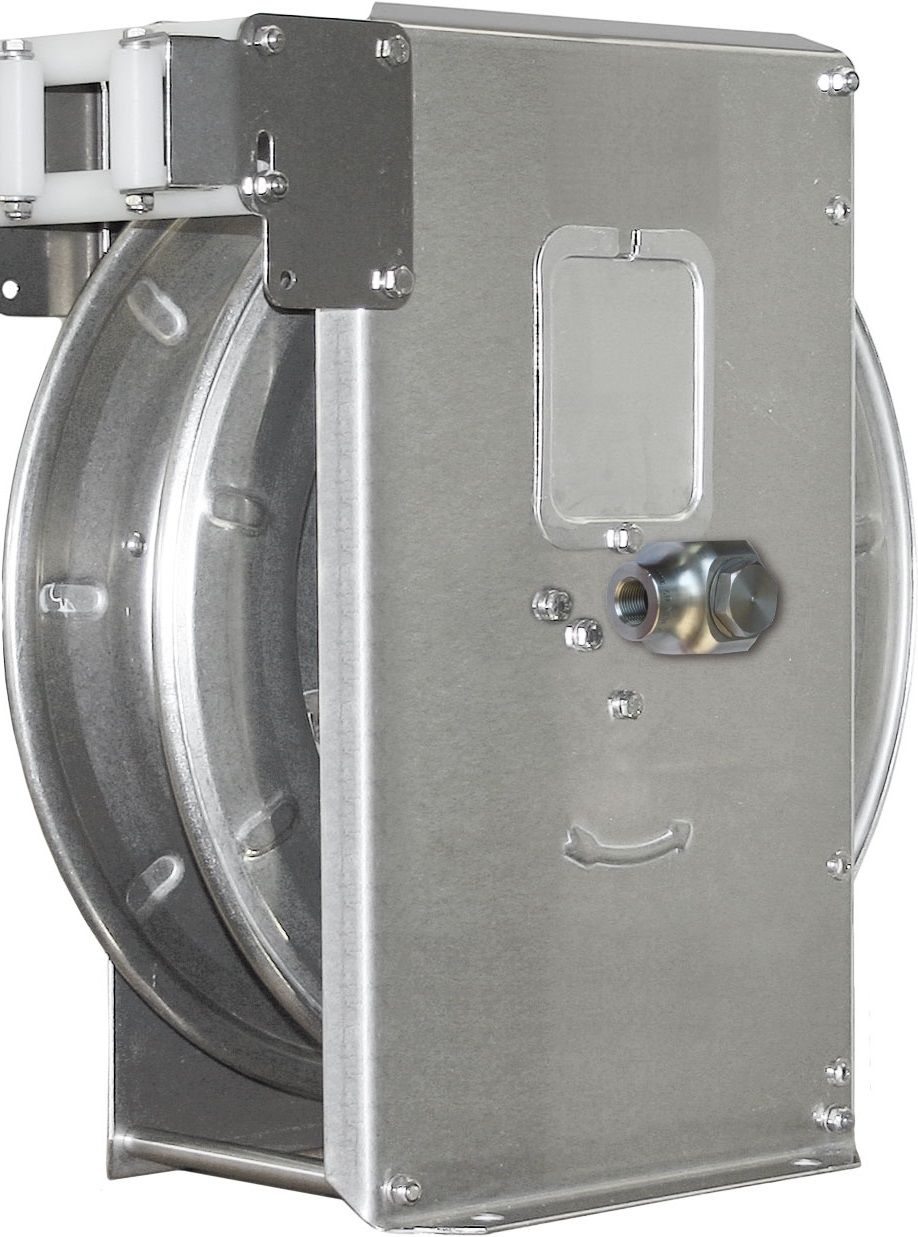

Stainless steel automatic hose reel.
The ST series are robust and reliable hose reels, with automatic spring return with the following features:
Maintenance free slide bearings made out of chemical, water and dirt resistant plastic.
There are 8 positions per rotation to stop the hose, a quick pull releases the locking mechanism.
The hose reels are all equipped with a Stainless Steel ST-322 swivel.
Suitable for the mediums: water, cleaning detergent, air, oils and greases.
(V2A / AISI 304)
