ST 20. STAINLESS STEEL AUTOMATIC HOSE REEL
SKU
7402012
Description
Up to 17m Capacity
Inlet 1/2" female
Outlet 1/2" female
For DN 12 hose
300 Bar
Max 90°C
Technical Spec
| Inlet | 1/2" Female |
|---|---|
| Outlet | 1/2" Female |
| Material | Stainless Steel |
| Bar | 300 |
| Max Temp °C | 90 |
| DN Internal Diameter | 12mm |

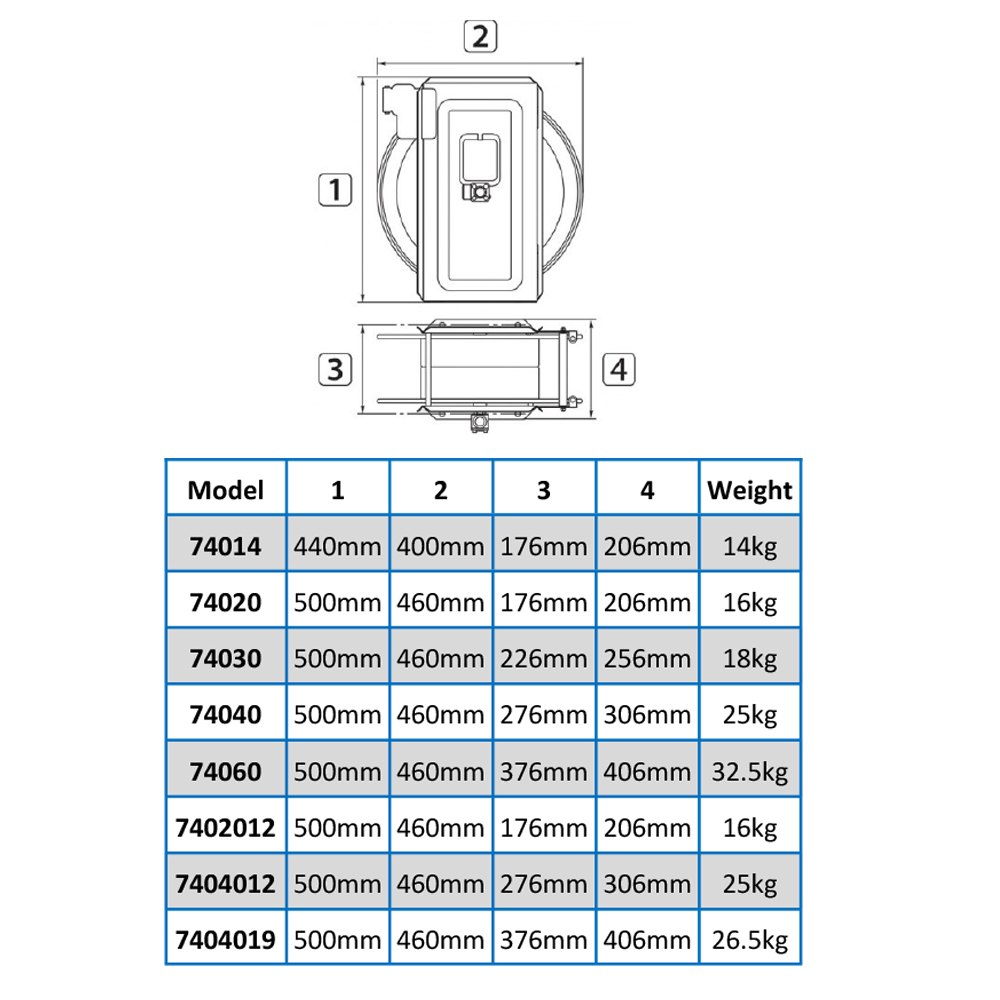

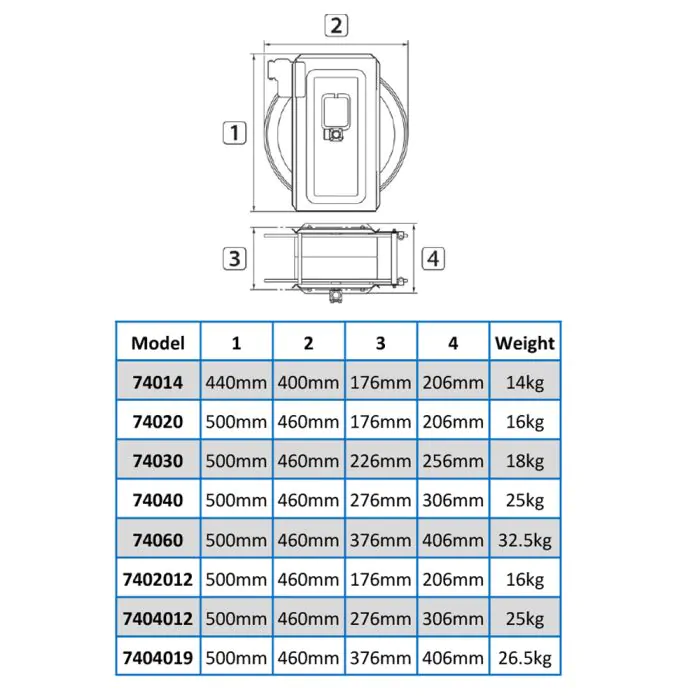

| Dimensions | - Height 500mm - Width 206mm - Depth 460mm - Reel Width 176mm |
| Weight | 16.00 |
Datasheets
Need help?
Contact G&S 01768 865985
Related Products
HOSE GUIDE, COMPACT.
Product Code:
74106
COUNTER PLATE
Product Code:
TPST1420BP
ST322 SWIVEL ELBOW SS 1/2" F X 3/8"M
Product Code:
200322510
BOLTS SET FOR WALL SWIVEL BRACKETS
Product Code:
74102
HOSE STOP 12-30mm BLUE ONLY
Product Code:
74103
WALL BRACKET WITH SWIVEL
Product Code:
74101
WALL BRACKET WITH SWIVEL
Product Code:
74100
Overview

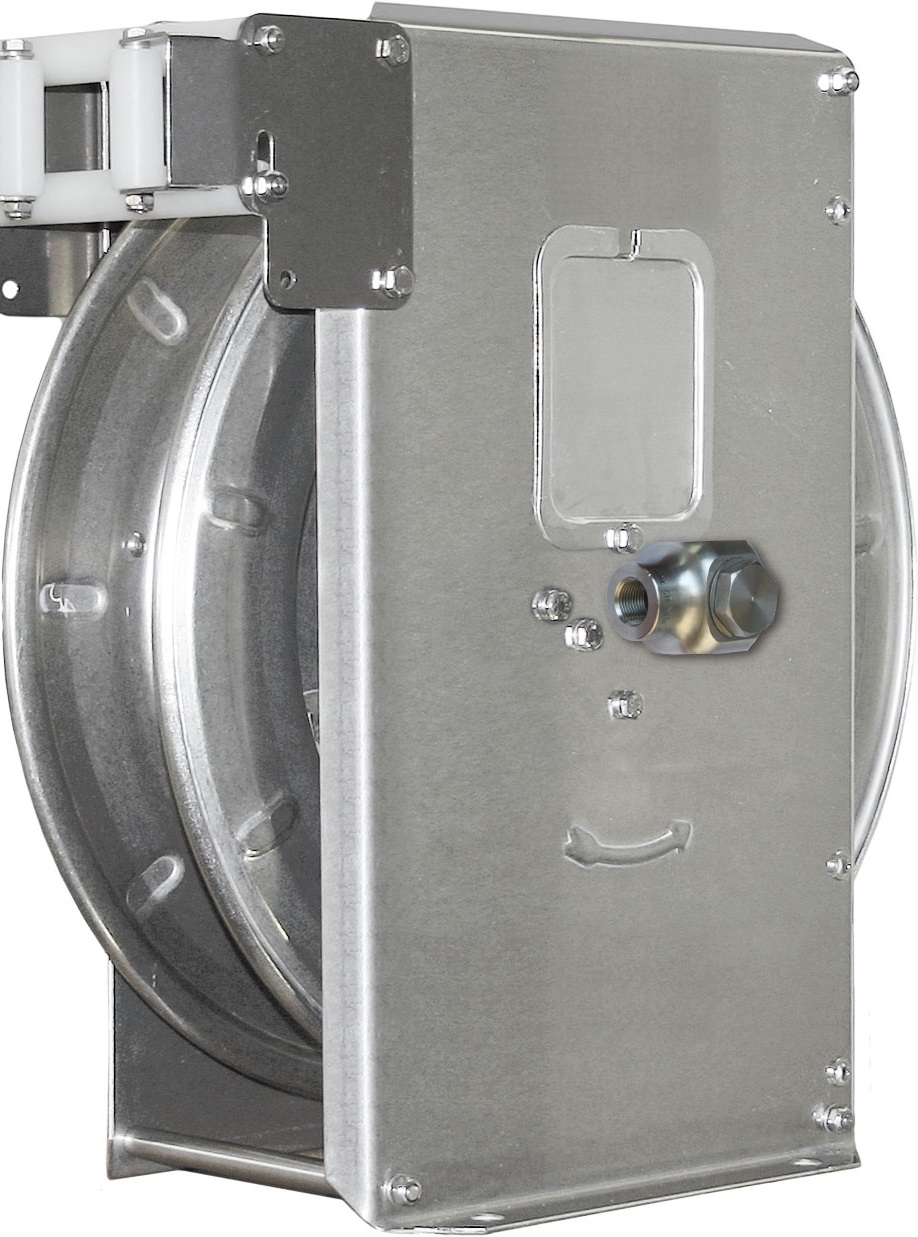

Stainless steel automatic hose reel.
The ST series are robust and reliable hose reels, with automatic spring return with the following features:
Maintenance free slide bearings made out of chemical, water and dirt resistant plastic.
There are 8 positions per rotation to stop the hose, a quick pull releases the locking mechanism.
The hose reels are all equipped with a Stainless Steel ST-322 swivel.
Suitable for the mediums: water, cleaning detergent, air, oils and greases.
(V2A / AISI 304)
