BLUE TRICOFLEX THERMOCLEAN AL20, 12mm LOW PRESSURE HOSE, 50m ROLL
Description
Tricoflex Thermoclean food grade hose is a high performance hose capable of withstanding heavy duty applications. This hose can tolerate high temperatures up to 70°C AT 20 bar continuously.

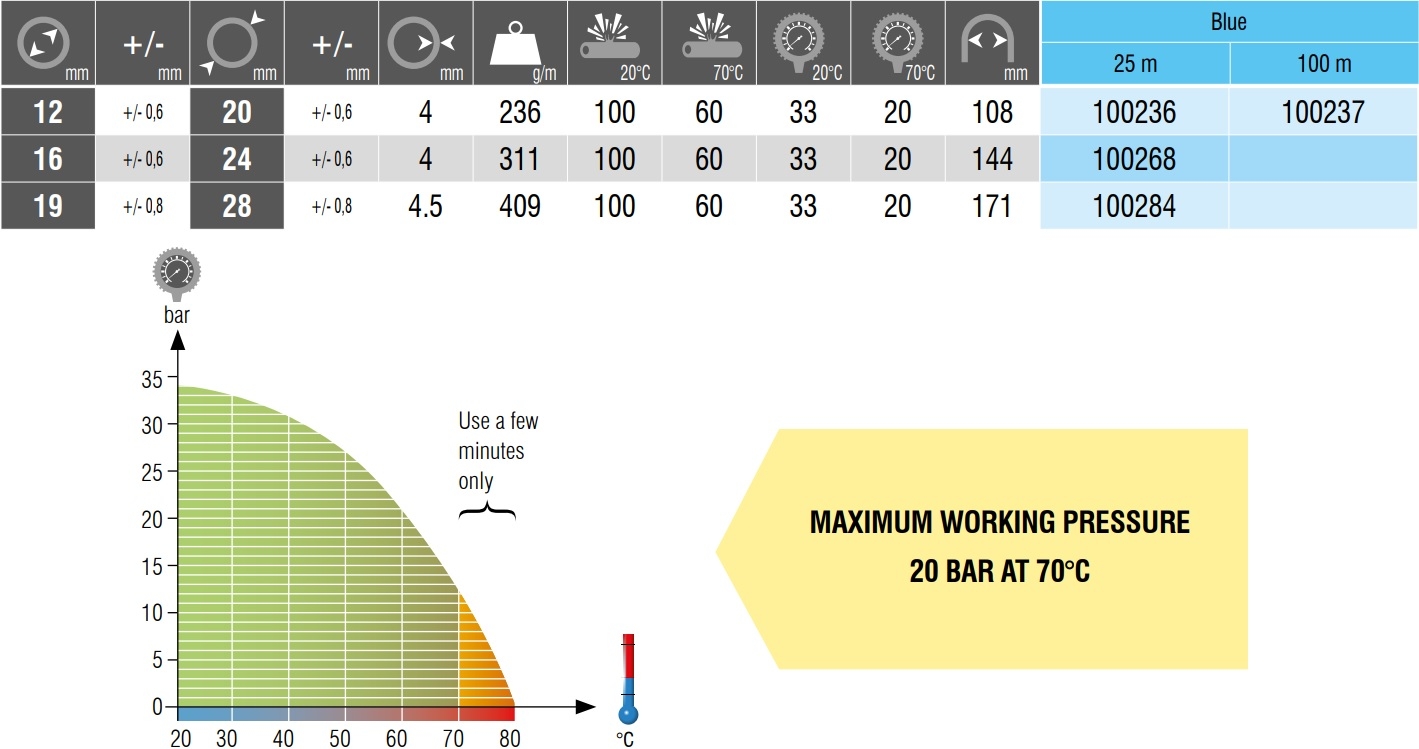

Technical Spec
Bar | 20 |
---|---|
Colour | Blue |
Length | 50m |
Max Temp °C | 70 |
DN Internal Diameter | 12mm |
Commodity Code | 3917390099 |
Weight | 11.88 |
Country of Origin | France |
Datasheets
-
Tricoflex Thermoclean Food Hose Download
Need help?
Contact G&S 01768 865985
Overview

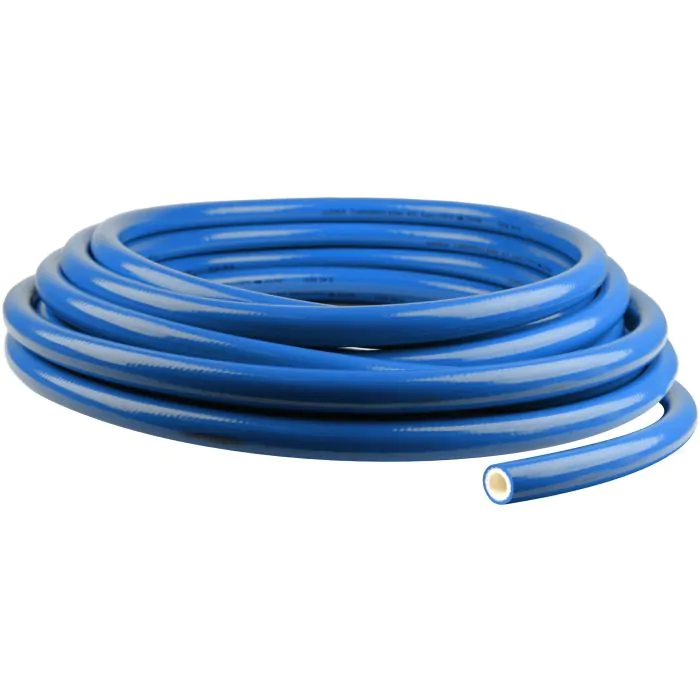

Tricoflex Thermoclean AL20 hose.
This is a medium pressure hot water hose for use in food processing areas, dairies, slaughter houses etc. It has a four layer structure, non-staining blue outer cover with high resistance polyester fibre reinforcement, which is resistant to oils, grease and detergents. The special intermediate adhesive layer and white inner layer give this hose it's high temperature performance. It can withstand temperatures of 70°C at 20 bar continuously. Available in 12mm or 19mm internal diameters.
Construction:
Outer Layer: Light blue cover in soft, non-staining, grease-proof, detergent and disinfectant resistant food grade PVC
Layer 2: Adhesion layer in food grade soft PVC
Layer 3: Polyester fibre reinforcement
Layer 4: Adhesion layer in food grade soft PVC
Inner Layer: White soft PVC, food grade, resistant to detergents and disinfectant
