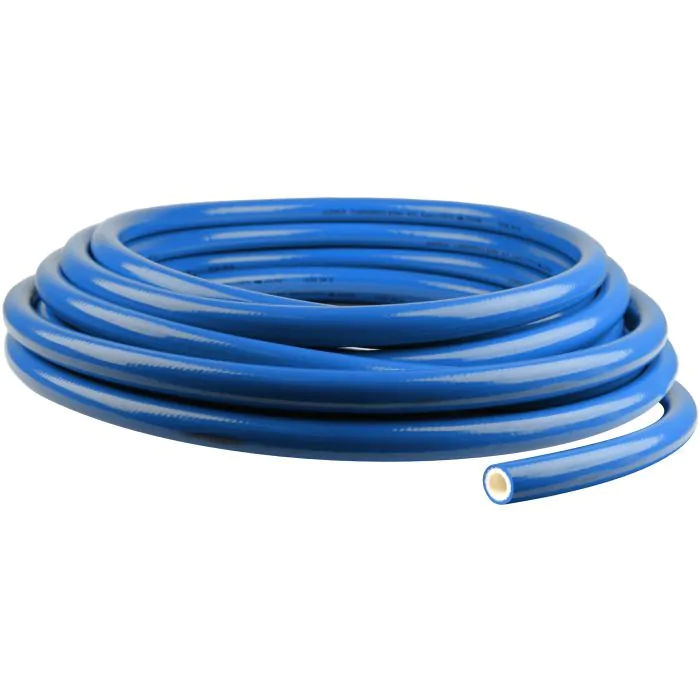

• BLUE TRICOFLEX THERMOCLEAN AL20, 19mm LOW PRESSURE HOSE, 50m ROLL
    BLUE TRICOFLEX THERMOCLEAN AL20, 19mm LOW PRESSURE HOSE, 50m ROLL BLUE TRICOFLEX THERMOCLEAN AL20, 19mm LOW PRESSURE HOSE, 50m ROLL BLUE TRICOFLEX THERMOCLEAN AL20, 19mm LOW PRESSURE HOSE, 50m ROLL BLUE TRICOFLEX THERMOCLEAN AL20, 19mm LOW PRESSURE HOSE, 50m ROLL
    Download Image

    Overview

    APPLICATIONS
    • Industrial cleaning in industry and food industry

    SECTORS OF ACTIVITY
    • Food processing industries (dairies, slaughterhouses, etc)
    • Local communities (canteens, refectories, kitchens…)
    • Shopkeepers (butcher’s,fish shops, markets…)

    Hot water cleaning hose for medium pressure (20 bar to 70°C).
    Four layer structure. Non-staining blue outer cover with high resistance polyester fibre reinforcement.
    Special intermediate adhesive layer and white inner layer with high temperature performance.

    ADVANTAGES
    Material properties used to manufacture THERMOCLEAN® AL 20 make it a high performance, safe and reliable hose capable to withstand heavy duty applications:
    • high temperature performance (up to 70°C under 20 bar continuously, peaks possible up to 80°C); four highly flexible polymer components provide excellent handling;
    • non-staining blue outer cover is resistant to oils, grease and detergents;
    • food-grade quality.

    CONNECTORS
    Barbed connectors with two O clips (O clips should
    be recrimped after first use).
    Swaged connectors with ferrules is possible.

    RECOMMENDATION
    To ensure a better connection, we recommend
    assembly after the hose end has been put in hot water
    at 60°C for 30 seconds

    BLUE TRICOFLEX THERMOCLEAN AL20, 19mm LOW PRESSURE HOSE, 50m ROLL

    Product Code: GSAL2019

    Datasheet

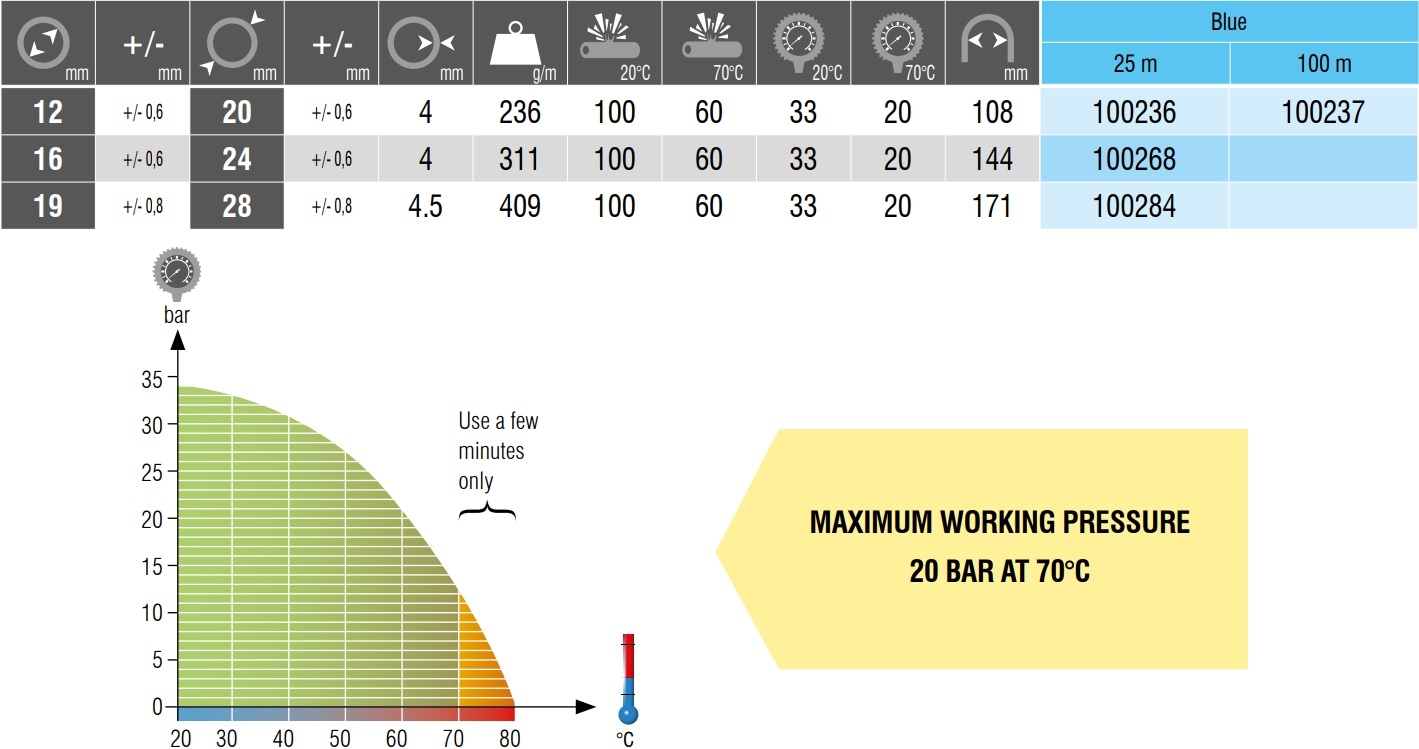

    Technical Specs

    Length: 50m
    Bore: DN 19
    Diameter: 28mm
    Max: 20 BAR
    Max: 70°C

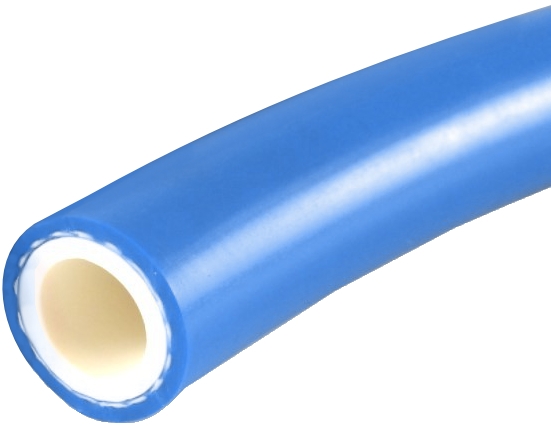

    Construction:
    Outer Layer: Light blue cover in soft, non-staining, grease-proof, detergent and disinfectant resistant food grade PVC

    Layer 2: Adhesion layer in food grade soft PVC

    Layer 3: Polyester fibre reinforcement

    Layer 4: Adhesion layer in food grade soft PVC

    Inner Layer: White soft PVC, food grade, resistant to detergents and disinfectant
