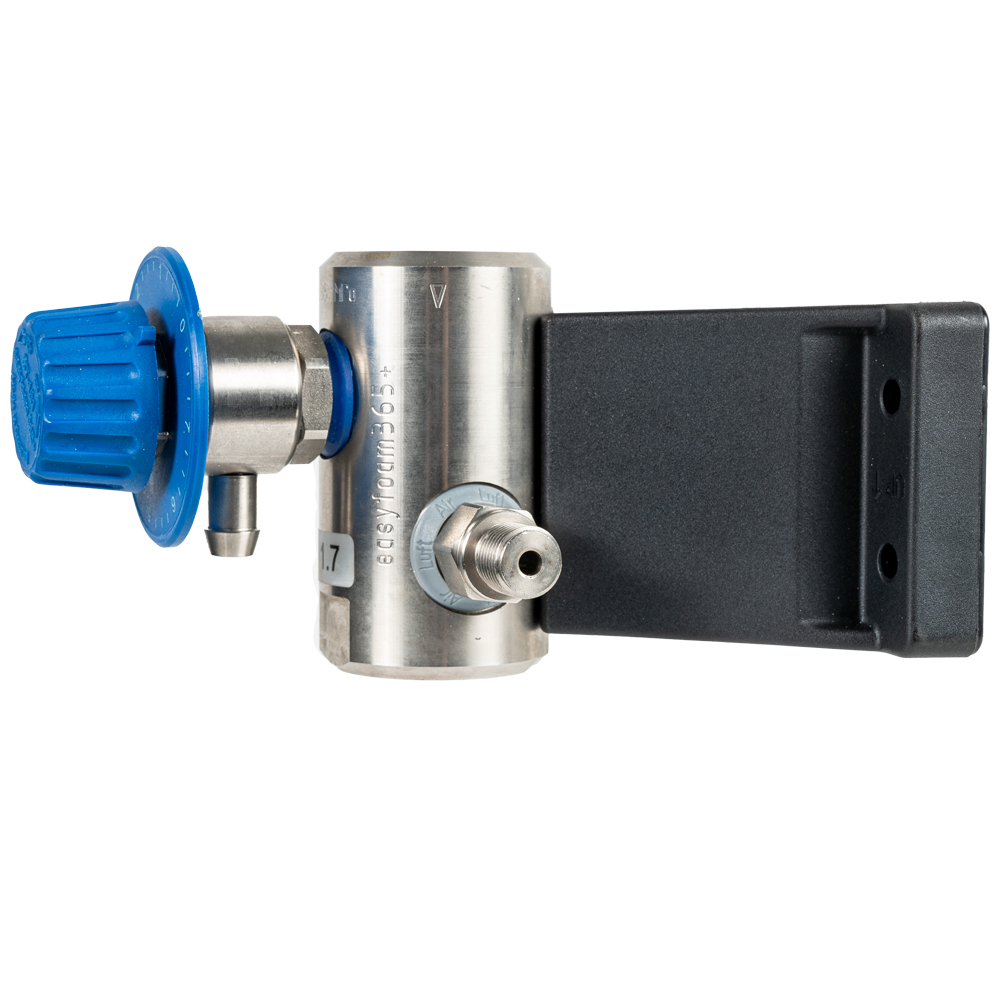

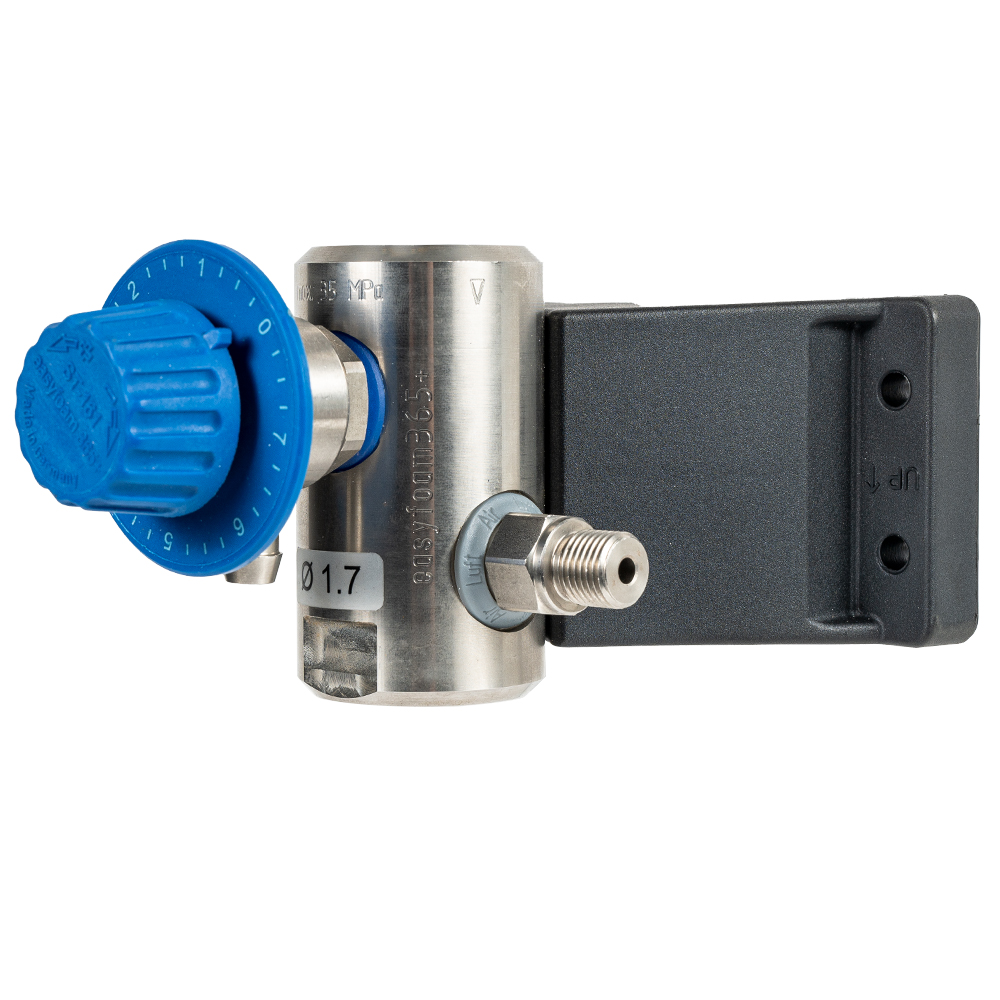

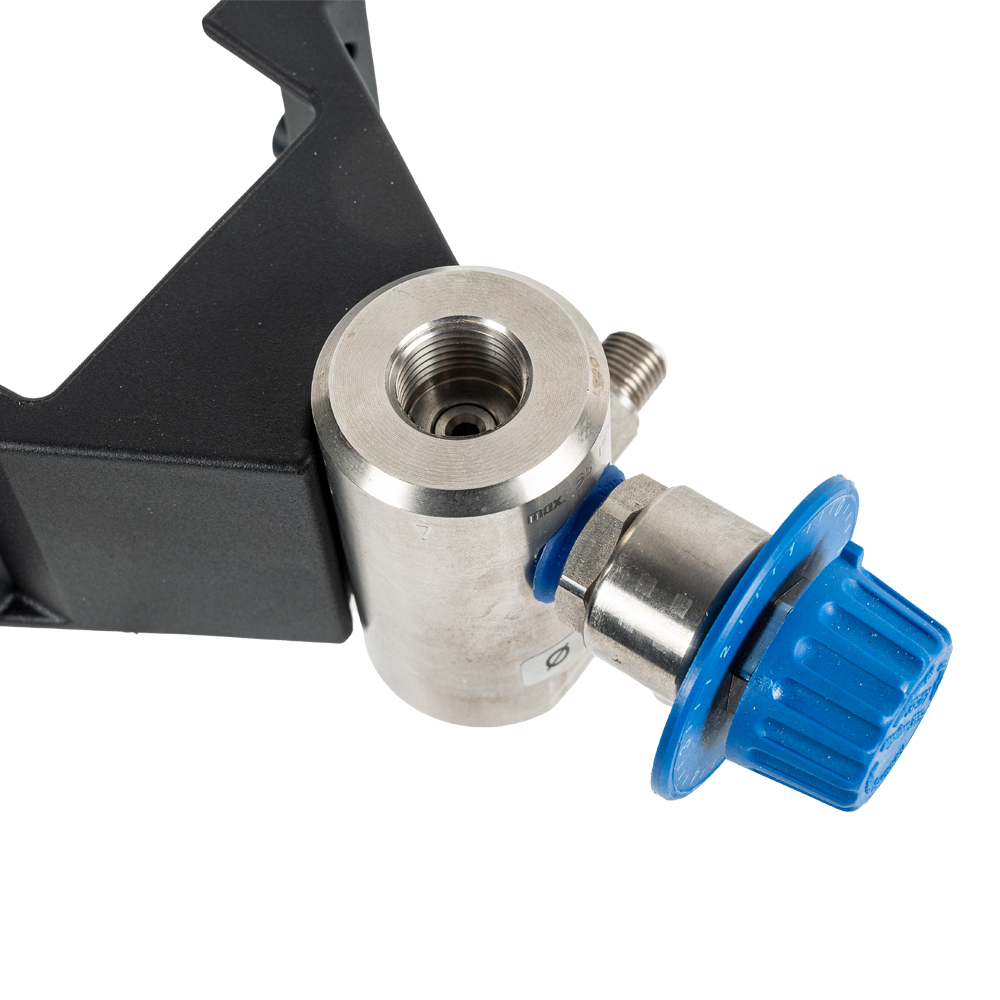

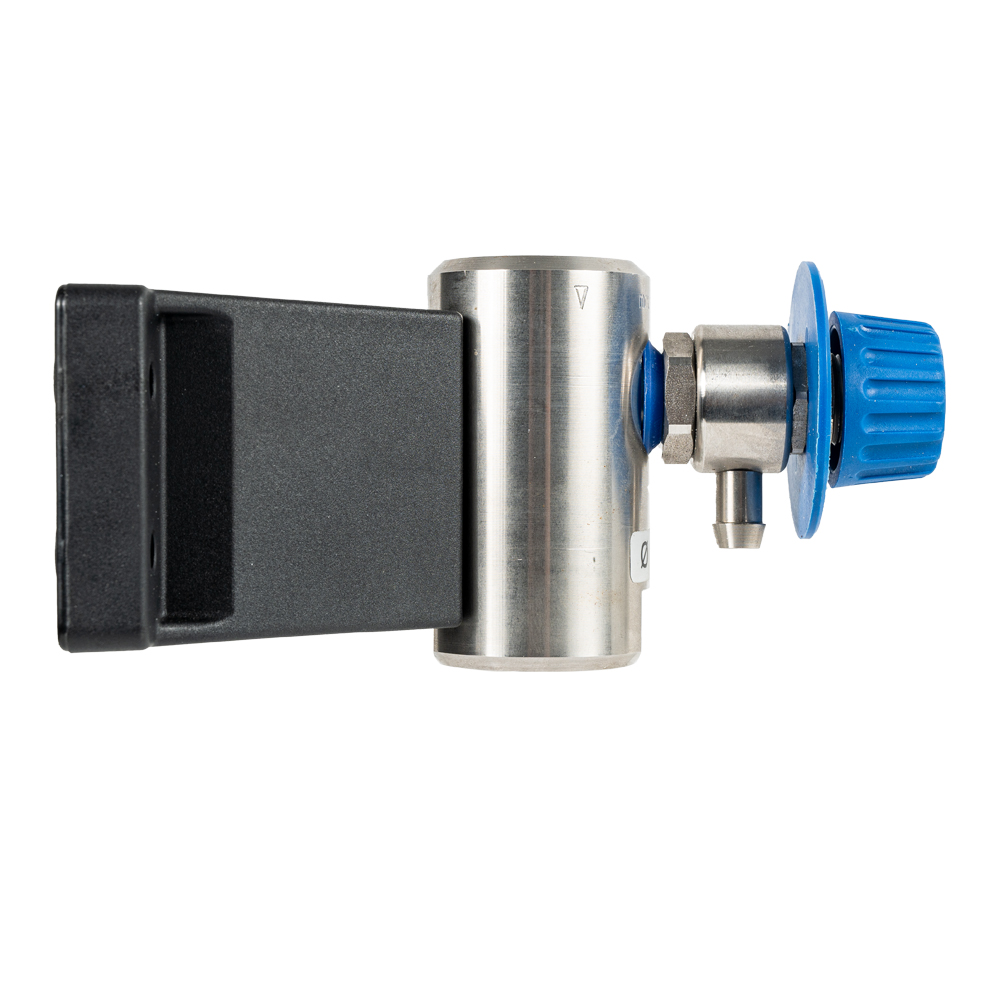

ST160.2 FOAM INJECTOR 1/2"F 1.8MM
SKU
200160656
Description
Stainless Steel
Inlet: 1/2" Female
Outlet: 1/2" Female
Max: 350 bar
Max: 90°C
Technical Spec
Inlet | 1/2" Female |
---|---|
Outlet | 1/2" Female |
Material | Stainless Steel |
Bar | 350 |
Colour | Blue |
Max Temp °C | 90 |
Nozzle Diameter | 07 |
Weight | 1.59 |
Country of Origin | Germany |
Datasheets
Need help?
Contact G&S 01768 865985
Overview
In order to produce foam with the ST-160.2 a foam lance without air intake is absolutely required.

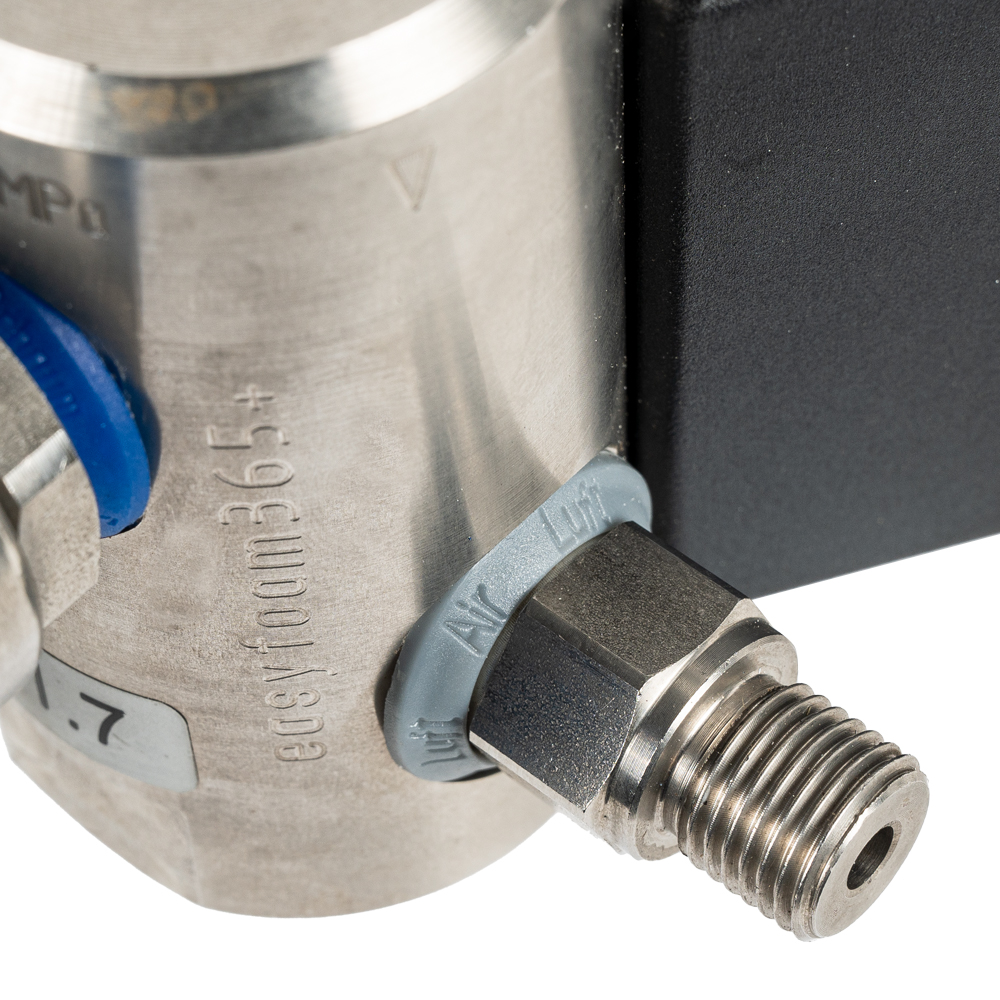

The air quantity needed for foaming is supplied by an additional connection positioned at the injector.
The use of a spray gun with large cross section areas such as for example ST-2720, ST-2725, ST-3100 or ST-3300 with suitable lances and foam hoses (blufood) is recommended.
The injector is especially designed for low and medium pressure applications from a water inlet pressure of 5 bar and it generates an excellent foam when being provided with the required quantity of compressed air.
Injector chemically resistant stainless steel 1.4305 / AISI 304.

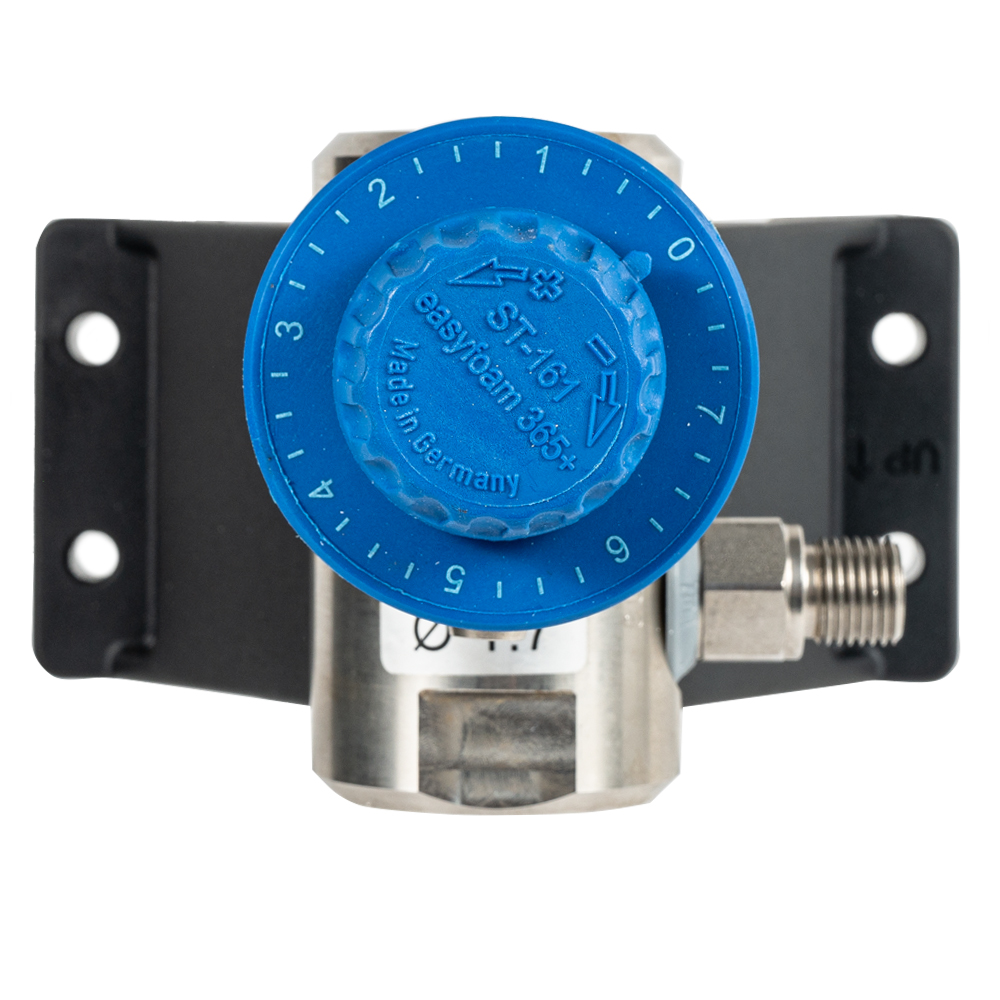

Injector with metering valve ST-161, compressed air connection and wall bracket.
Inlet / outlet 1/2" F. Max. 350 bar / 90 °C
