TURBO DEVIL FLOATER 520 1/4"F

TURBO DEVIL FLOATER 520 1/4"F

SKU

Description

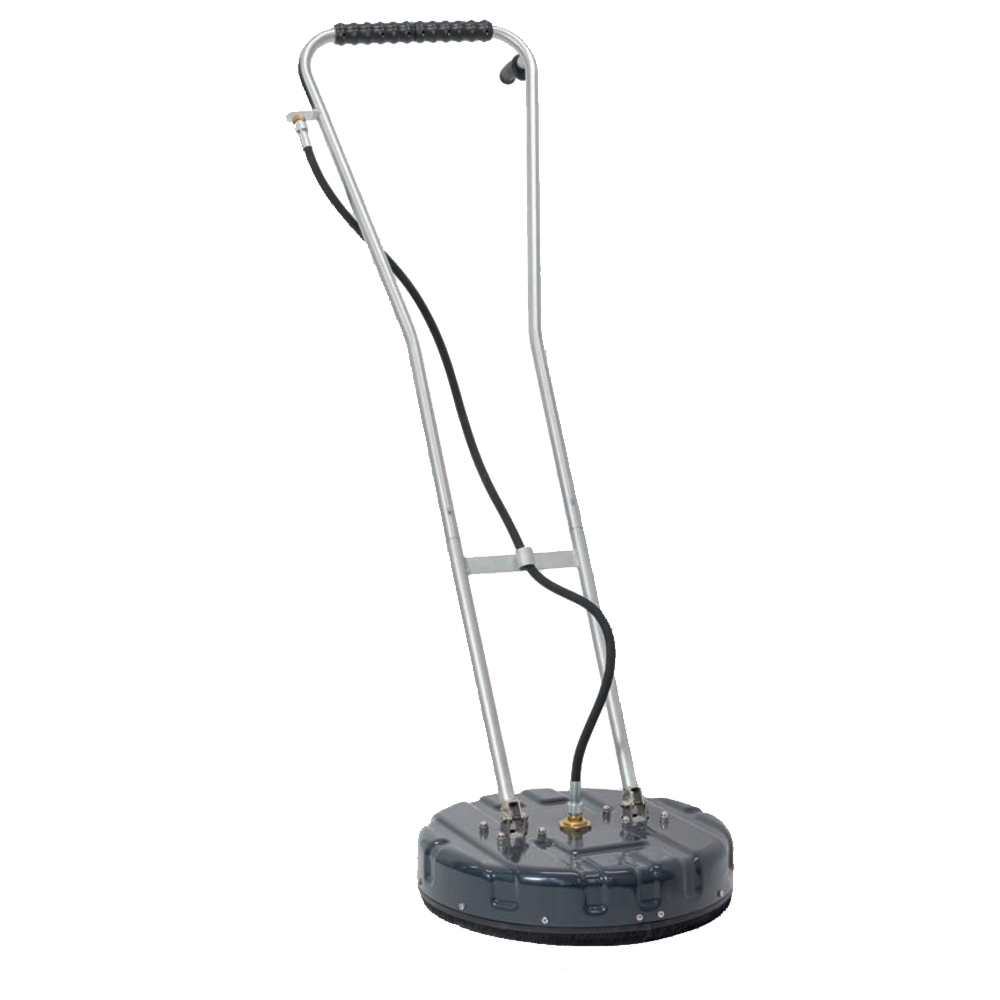

This is the new Turbo Devil Floater 520. A high quality stainless steel design with robust ABS cover. Easily folded to save storage space and features an integrated screen filter to stop the nozzles from clogging. Two 1/4"M nozzles are required, when using our nozzle sizing chart remember to divide the selected nozzle size by the number of required jets.

Technical Spec

Inlet1/4" Female
Max LPM22 LPM
MaterialStainless Steel / ABS plastic cover
Bar250
Max Temp °C90
Dimensions - Width 500mm
Commodity Code8424200000
Weight9.00
Country of OriginGermany

Datasheets

Need help?

Contact G&S 01768 865985

Overview

Turbo Devil Floater 520

The Turbo Devil Floater 520 surface cleaner is a high-quality cleaning tool that offers many benefits to its users. One of the primary benefits of using the Turbo Devil Floater 520 is its ability to clean large surface areas quickly and efficiently. The surface cleaner is designed to cover a large area in a short amount of time, which means that users can complete their cleaning tasks faster and with less effort.

The unit requires two 1/4"M nozzles, if you know the flow and pressure of the machine you are working with our nozzle sizing chart will help you select the correct nozzle size. Remember the selected nozzle size needs to be divided by the number of required jets.

Example: Pressure = 100bar   Flow = 13lpm   Chart = 06 nozzle size

2 x Jets required (06 divide by 2) = 2 x 03 size nozzles needed for surface cleaner

The Floater is made from ABS plastic which is extremely durable and lightweight, making the surface cleaner very easy to manoeuvre, which means that users can easily navigate it around corners and obstacles. The surface cleaner is also easy to set up and operate, which means that users can start cleaning right away without any complicated setup or training.

Another benefit of using the Turbo Devil Floater 520 is its versatility. The surface cleaner can be used on a wide range of surfaces, including concrete, asphalt, and wood. It is also suitable for cleaning large surfaces such as parking lots, pavements, and driveways.

The Turbo Devil Floater 520 surface cleaner is an excellent investment for anyone who needs a fast, efficient, and reliable cleaning tool for large surface areas.

Surface Cleaners

Why use a surface cleaner?

Time efficiency is extremely important within the industrial cleaning industry, to be competitive it’s important to be able to achieve economical results. The radius of a surface cleaner will enable the user to clean a greater area much faster than using a single lance.

Some of the main benefits of using a surface cleaner are the ability to work faster and cleaner. The housing on the surface cleaner acts as a splashguard and improves cleaning quality. The nozzles within the housing are kept at an even distance from the ground which ensures even cleaning results. Some of the surface cleaners we can supply are available with recovery ports which will allow for waste water to be recycled or removed.

At G&S we have a whole range of surface cleaners that can clean stairs, walls, roofs and other surfaces. We can supply Mosmatic surface and roof cleaners as well as the RM Suttner Turbo Devil Eco and Industrial range.

Image and Text Closer
Turbo Devil

Click here for spares and accessories

Help with sizes

Interactive Nozzle selection chart.

If you know the flow and pressure of the machine you are working on, simply select your pressure along the top of the chart and move down until you reach your nearest flow rate. Click the box which has your flow rate and this will give you your required nozzle size.

Pressure
3102030405060708090100110120130140150160175200225250300400500
010,590,40,71,01,31,41,61,71,82,02,12,22,32,42,52,62,72,82,93,13,33,53,84,44,9
0150,710,61,01,51,82,12,42,62,83,03,23,43,63,73,84,04,24,34,54,85,15,45,96,77,5
020,840,81,42,02,52,83,23,53,74,04,24,54,74,85,05,35,45,65,96,36,77,07,78,99,9
0250,941,01,62,53,13,54,04,34,75,05,35,65,96,16,46,66,97,17,58,08,59,09,911,412,7
031,031,22,03,13,74,34,85,35,76,16,36,87,17,47,78,08,38,69,09,610,210,711,813,515,1
0351,101,42,53,64,24,95,56,06,57,07,47,88,28,68,99,29,59,810,311,011,712,313,815,517,8
041,211,62,84,15,25,96,67,37,88,48,99,49,810,310,711,111,511,912,413,314,114,816,318,720,9
0451,261,83,14,55,56,47,17,88,49,09,610,210,510,911,411,812,212,613,214,115,015,817,419,922,3
051,332,03,55,16,27,18,08,79,410,010,711,311,812,412,913,413,814,314,916,016,917,919,722,625,3
0551,392,23,75,66,87,88,79,610,311,111,812,413,013,614,114,715,215,716,417,518,619,621,725,028,0
061,462,44,16,17,48,69,610,411,312,112,813,614,314,915,516,016,717,218,019,220,421,523,727,130,3
0651,522,64,36,68,09,310,411,312,313,214,014,715,416,116,817,418,018,619,420,822,023,225,629,332,7
071,572,85,07,18,610,011,212,213,214,115,015,816,617,318,018,719,320,020,922,323,725,027,131,335,0
0751,633,05,37,69,310,712,013,114,215,216,116,917,718,519,320,020,721,422,423,925,326,729,433,737,7
081,683,25,68,29,811,312,714,015,116,117,118,018,919,720,521,322,022,823,825,527,028,531,435,940,2
0851,733,46,08,710,412,113,514,816,017,118,119,120,020,921,822,623,424,125,327,028,630,234,539,844,5
091,783,66,59,211,112,814,315,717,018,019,220,221,222,123,023,924,725,526,728,630,331,935,140,245,0
101,883,97,010,212,314,216,017,418,920,121,422,523,624,625,626,627,628,529,831,833,735,639,244,950,2
111,964,37,811,213,415,517,319,020,522,023,324,525,726,928,029,130,131,132,534,736,838,843,450,156,0
122,05,4,78,412,314,616,918,920,822,424,025,426,828,129,430,631,732,833,935,437,940,242,446,753,459,8
132,135,19,513,315,918,320,522,524,326,027,529,030,431,833,134,435,636,738,441,143,645,950,557,864,7
142,215,510,214,317,119,722,124,226,128,029,631,332,834,235,637,038,339,541,444,346,949,455,063,571,0
152,305,910,815,318,521,323,926,128,330,232,133,835,336,938,439,941,342,644,647,750,653,358,767,275,2
202,667,914,020,524,728,531,934,937,840,342,745,147,249,351,353,255,156,959,563,667,571,178,289,6100,0
303,2511,821,131,037,042,747,852,456,660,564,267,670,974,077,180,082,885,589,495,6101,0107,0118,0149,0151,0
403,7615,828,041,049,457,063,769,875,480,785,590,294,698,8103,0107,0110,0114,0119,0127,0135,0143,0157,0198,0202,0
504,2819,735,351,061,571,080,087,094,5102,5107,0112,5118,0123,0128,0133,0138,0142,5149,0159,0168,5178,0196,0224,5251,0
