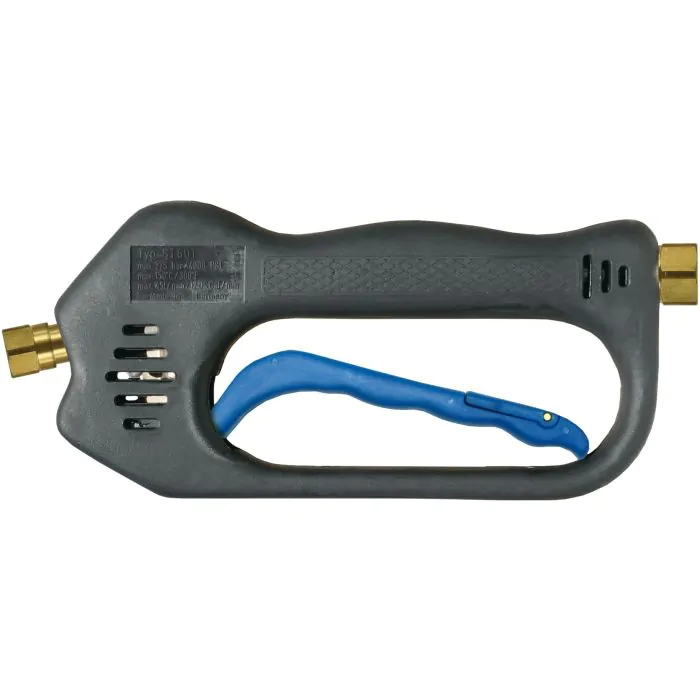

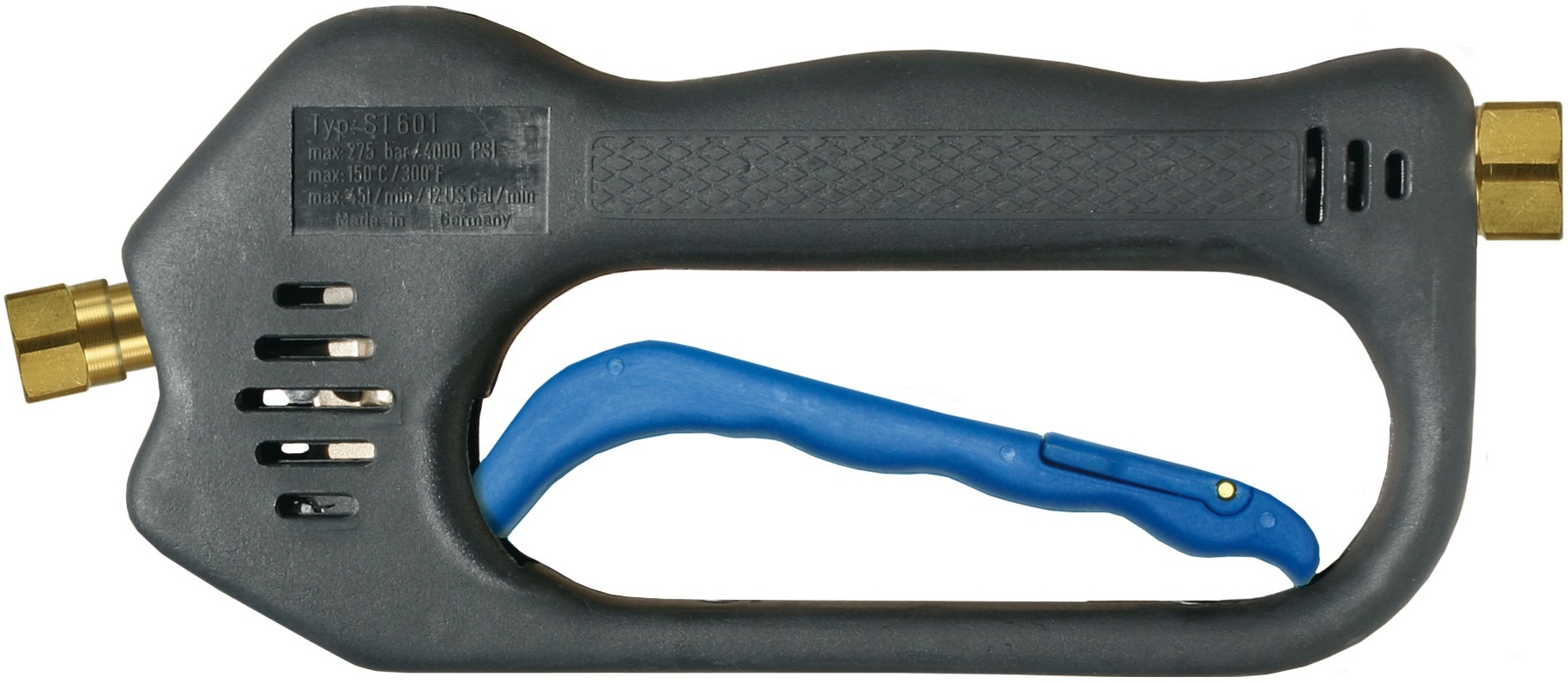

ST601 INLINE GUN WITH FREEZE STOP TECHNOLOGY
Description
RM Suttner ST601 inline wash gun for telescopic lances with freeze stop technology. The housing of this gun is made from impact resistant plastic, and also has a safety lock on the trigger which is made from corrosion resistant materials. This ST601 Gun features “Freeze Stop” technology which is used to prevent damage in freezing temperatures.
Technical Spec
| Inlet | 3/8" Female |
|---|---|
| Outlet | 1/4" Female |
| Max LPM | 45 LPM |
| Bar | 275 |
| Colour | Black |
| Max Temp °C | 150 |
| Commodity Code | 8424200000 |
| Weight | 0.53 |
| Country of Origin | Germany |
Datasheets
-
200601601 Spare Parts Download
Need help?
Contact G&S 01768 865985
Overview
RM Suttner ST160 Inline wash gun with freeze stop technology

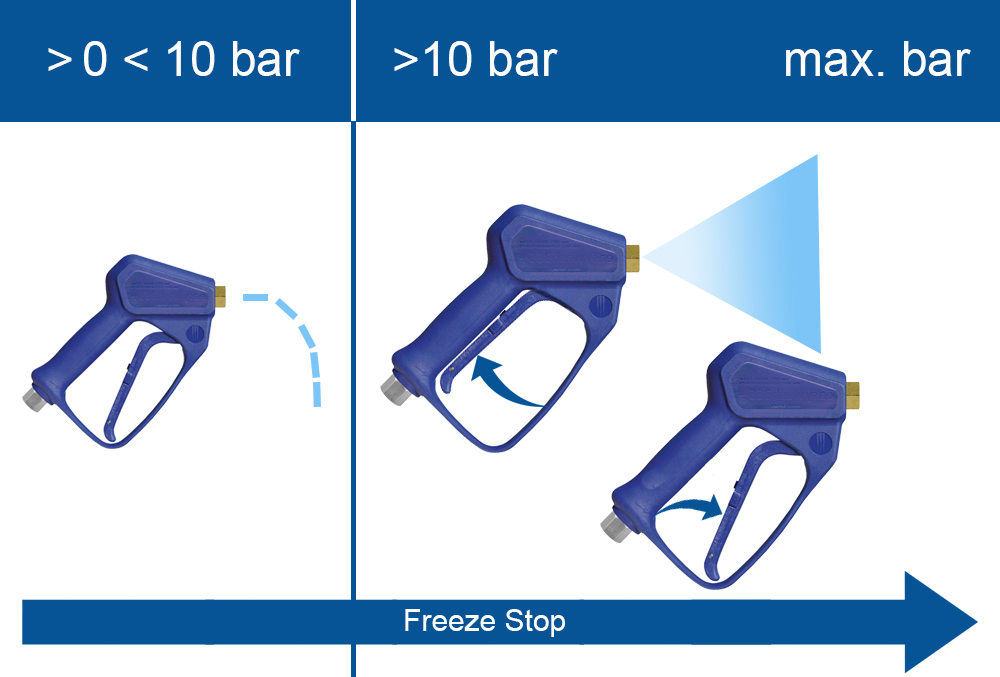

The Suttner ST601 is an inline, linear gun that was especially designed to be used with extra long lances, such as the high pressure telescopic lances. The housing is made from impact resistant plastic, and also has a safety lock on the trigger which is made from corrosion resistant materials. This ST601 Gun features “Freeze Stop” technology which is used to prevent damage in freezing temperatures. Equipped with valve in valve technology, the operating valve which is driven by the spray gun trigger includes the automatically operating “freeze stop” piston. The piston only opens when the pressure is less than 10 bar, so the gun will not weep while in use/receiving pressure, but will weep when switched off or not under pressure to prevent freezing.
Key Features
Inline Design: Optimised for use with extra-long lances, such as high-pressure telescopic lances, providing enhanced stability and ease of use.
High Pressure and Flow Capacity: Supports up to 275 bar (approximately 4000 PSI) and a maximum flow rate of 45 litres per minute (12 GPM), making it suitable for heavy-duty cleaning tasks.
High-Temperature Tolerance: Capable of withstanding water temperatures up to 150°C (302°F), allowing for effective cleaning with hot water.
Durable Construction: Features a housing made from impact-resistant plastic and components constructed from corrosion-resistant materials, ensuring longevity and reliability.
Safety Features: Equipped with a trigger safety lock to prevent accidental activation, enhancing user safety during operation.
Freeze Stop Functionality: Incorporates a freeze stop design that allows a small, continuous flow of water when the pressure drops to around 10 bar which reduces the risk of freezing in cold conditions.
Wash Gun Opening/Holding forces
- Opening Force: 56N @ 100 bar
- Holding Force: 22N @ 100 bar
Spare Parts
- 1. Pin 5x20 SKU: 040000060
- 2. Plastic housing ST-601 w.label SKU: 020000151
- 3. Plastic housing ST-601 SKU: 020000161
- 4. Trigger complete ST-601 blue SKU: 200601480
- 5. Repair-kit screws SKU: 900035161
- 6. Repair-kit frost protection ST-2000 SKU: 202000101
