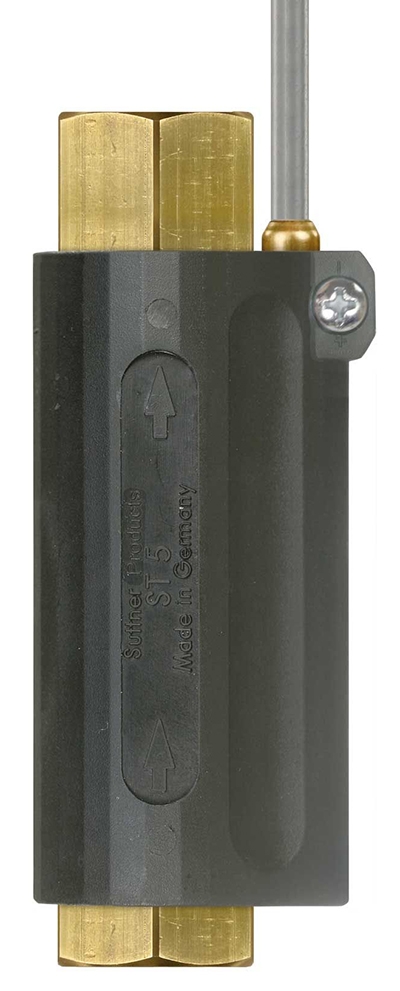

ST5 FLOW SWITCH (HIGH FLOW) 210 BAR WITH HOLE

ST5 FLOW SWITCH (HIGH FLOW) 210 BAR WITH HOLE

SKU

Technical Spec

Inlet 1/2" Female
Outlet 1/2" Female
Max LPM 60 LPM
Voltage 250 V
Bar 210
Colour Black
Length 1200mm
Max Temp °C 80
Weight 0.47
Country of Origin Germany

Description

A Suttner ST5 flow switch (high flow) featuring magnet with hole to be mounted vertically. Designed for use in high-pressure cleaning systems and industrial pressure washer installations. Installed vertically within the water line, it detects water flow and activates or deactivates connected electrical equipment

Datasheets

Need help?

Contact G&S 01768 865985

Overview

We are a trusted flow switch supplier for the UK and sole distributor of Suttner's renowned German engineered ST5 Flow Switch. Featuring a robust brass body, 1/2" BSP female connections and a pre-fitted 1.2 metre cable, it is quick to install and built for long service life.

  • Magnet with hole
  • Vertical installation
  • High flow version 60 lpm
  • Flow ≥ 5.2 L/min → Switch closes
  • Flow ≤ 4.2 L/min → Switch opens

Technical Specification

  • Inlet: 1/2"F
  • Contact: 1 amp 250 volts
  • Max Pressure: 210 bar
  • Max Flow: 60 lpm
  • Min Flow: 3.5 lpm
  • Open: 4.2 Lpm
  • Closed: 5.2 Lpm
  • Max Temp: 80°C
  • Mount: Vertical Installation
  • Cable Length: 1200 mm

Export Information

  • Commodity Code: 8424200000
  • Country of Origin: Germany
  • Weight: 0.44kg
