ST1100 WASH GUN
Description

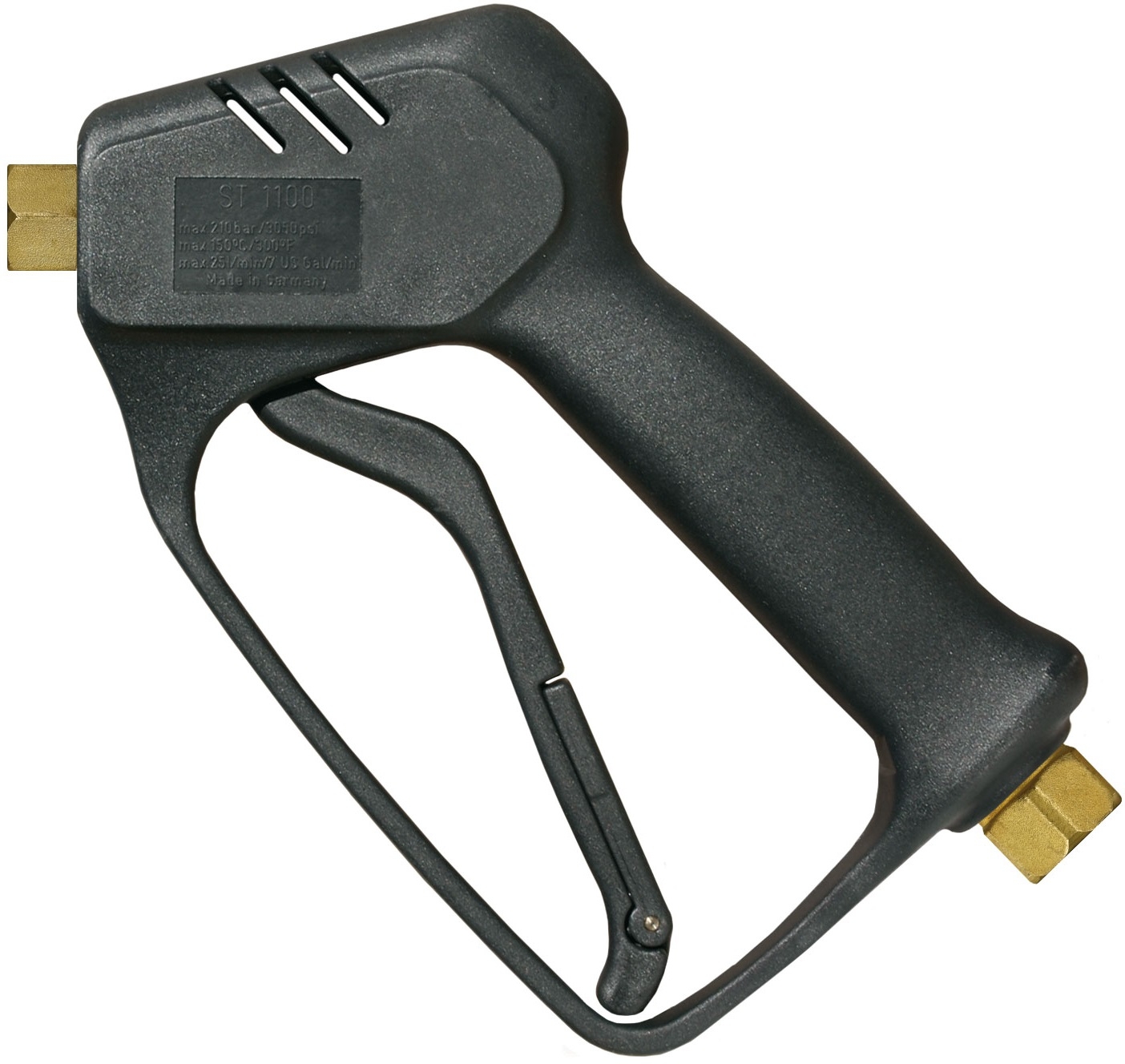

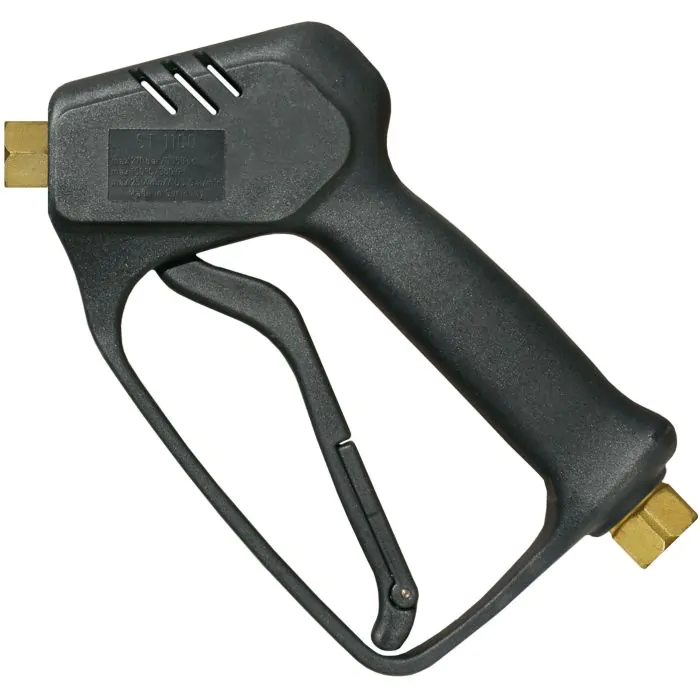

The Suttner ST1100 Wash Gun is a professional-grade, cost-effective solution for high-pressure cleaning tasks. Designed for versatility and durability, this entry-level wash gun is suitable for various applications, from industrial cleaning to automotive detailing.
Technical Spec
Inlet | 3/8" Female |
---|---|
Outlet | 1/4" Female |
Max LPM | 25 LPM |
Bar | 210 |
Colour | Black |
Max Temp °C | 150 |
Commodity Code | 8424200000 |
Weight | 0.42 |
Country of Origin | Germany |
Datasheets
-
ST1100 Spare Parts Download
Need help?
Contact G&S 01768 865985
Overview
The Suttner ST1100 Wash Gun is a professional-grade, cost-effective solution for high-pressure cleaning tasks. Designed for versatility and durability, this entry-level wash gun is suitable for various applications, from industrial cleaning to automotive detailing.
Key Features:
- Robust Construction: The gun features an impact-resistant casing and is built with corrosion-resistant materials, ensuring longevity and reliable performance in demanding environments.
- High-Pressure Capability: With a maximum pressure rating of 210 bar (3,045 psi) and a flow rate of up to 25 liters per minute, the ST1100S efficiently handles tough cleaning tasks.
- Temperature Resilience: Capable of withstanding temperatures up to 150°C, this wash gun is ideal for hot water cleaning applications.
- Safety Lock: The integrated safety lock on the trigger prevents accidental activation, providing an added layer of security during operation.
Wash Gun Opening/Holding forces
- Opening Force: 35N @ 100 bar
- Holding Force: 20N @ 100 bar


Spare Parts
- 1. Plastic housing with handle SKU: 020008510
- 2. Plastic housing SKU: 020008520
- 3. Trigger complete SKU: 201100505
- 4. Valve housing SKU: 010006100
- 5. Pipe inlet SKU: 070001397
- 6. Inlet nut 3/8" female SKU: 010002600
- 7. Piston rod SKU: 040005600
- 8. Back ring SKU: 050000640
- 9. O-Ring SKU: 050000260
- 10. Seal support SKU: 010006120
- 11. Spring SKU: 060000930
- 12. O-ring SKU: 050000465
- 13. Seal SKU: 040005610
- 14. Stainless Steel ball SKU: 040000330
- 15. Spring SKU: 060000940
- 16. O-ring SKU: 050000210
- 17. Screw plug SKU: 010006110
- 18. Pin 4 x 25 SKU: 010001245
- 19. Screw 3,5 x 16 SKU: 040000050
- 20. Position is drop
