ST 14. STAINLESS STEEL AUTOMATIC HOSE REEL
SKU
74014
Technical Spec
| Inlet | 3/8" Female |
|---|---|
| Outlet | 3/8" Female |
| Material | Stainless Steel |
| Bar | 400 |
| Max Temp °C | 90 |
| DN Internal Diameter | 10mm |

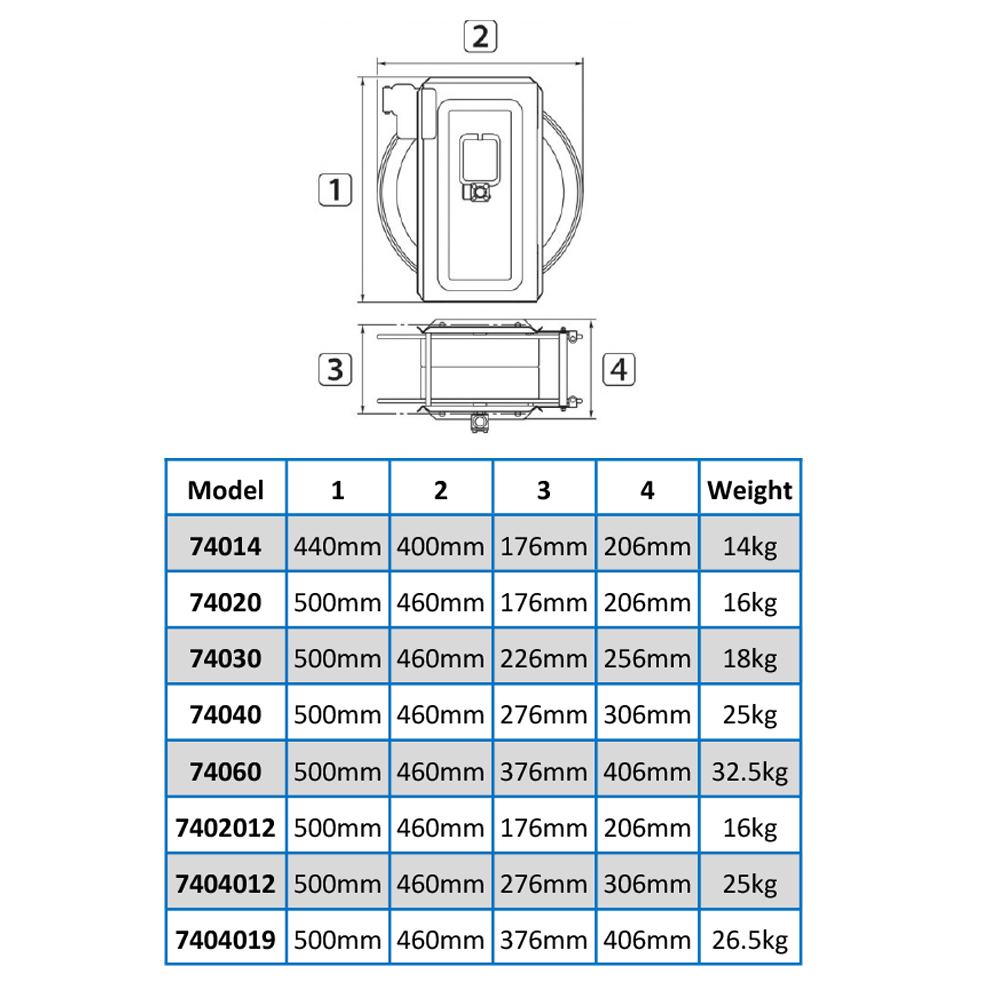

| Dimensions | - Height 440mm - Width 206mm - Depth 400mm - Reel Width 176mm |
| Weight | 14.00 |
| Country of Origin | Germany |
Description
Up to 14m Capacity Inlet 3/8" female Outlet 3/8" female For DN 10 hose 400 Bar Max 90°C
= 14m of DN 8 hose capacity.
= 12m of DN 10 hose capacity.
Datasheets
Need help?
Contact G&S 01768 865985
Overview

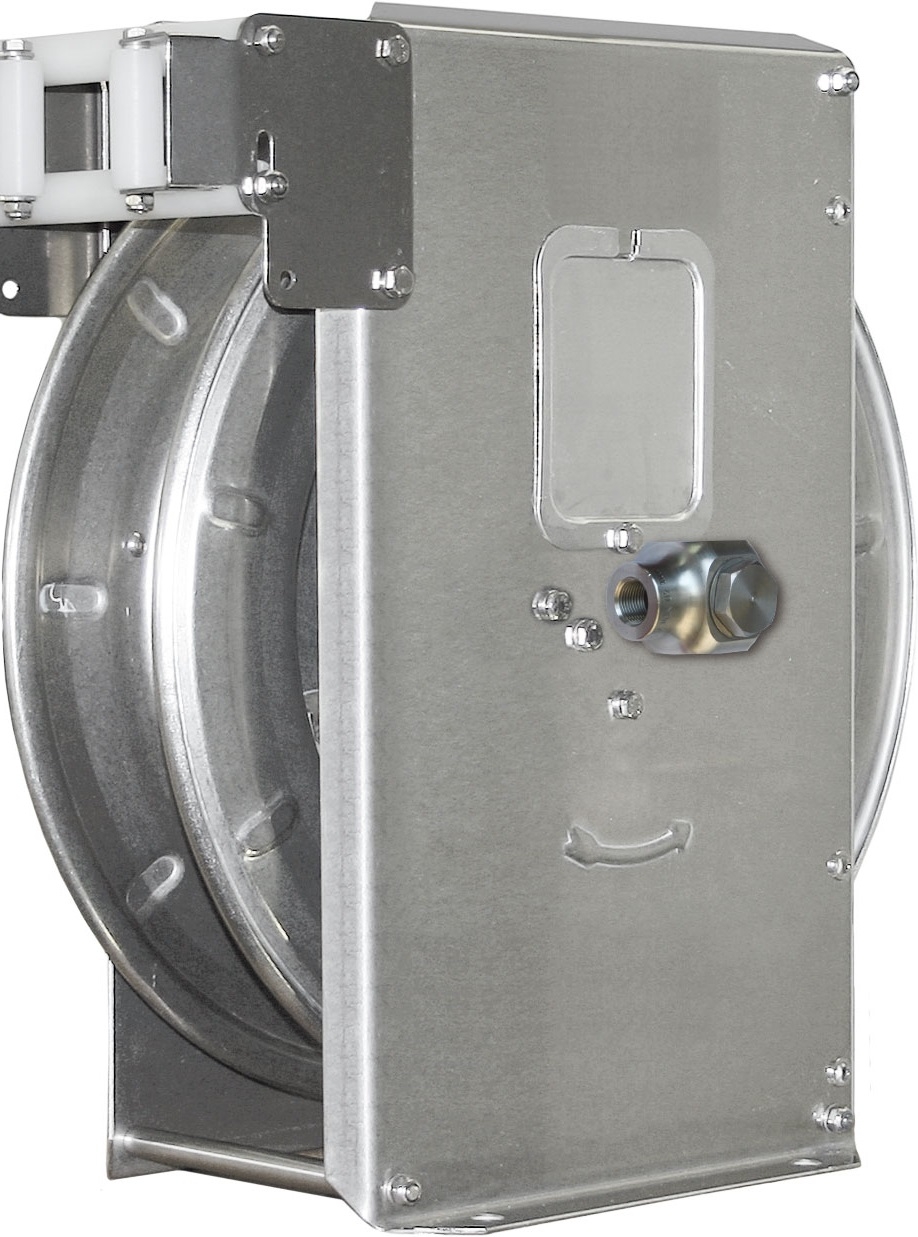

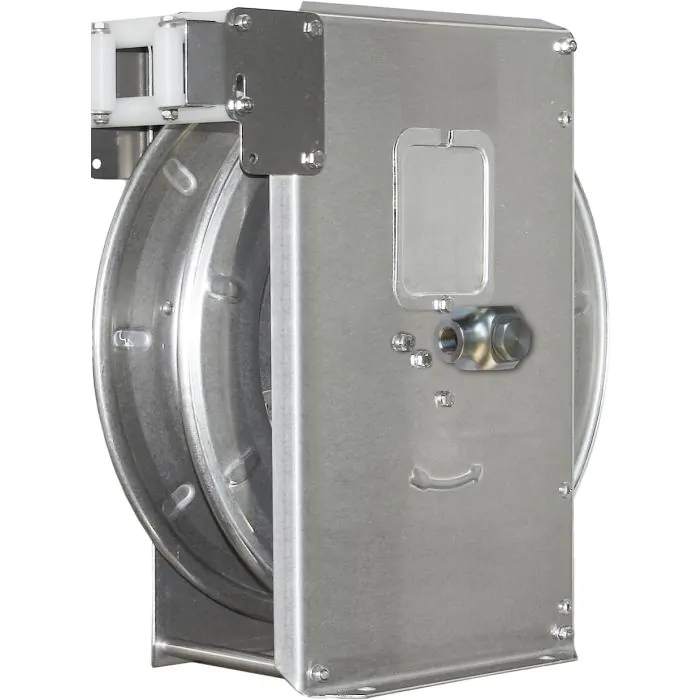

Stainless steel automatic hose reel.
The ST series are robust and reliable hose reels, with automatic spring return with the following features:
Maintenance free slide bearings made out of chemical, water and dirt resistant plastic.
There are 8 positions per rotation to stop the hose, a quick pull releases the locking mechanism.
the hose reels are all equipped with a Stainless Steel ST-322 swivel.
Suitable for the mediums: water, cleaning detergent, air, oils and greases.
(V2A / AISI 304)
