230V ELECTRIC DRIVE REEL 1/2"F TYPE 3
Description
Type 3 capable of holding 185 metres of DN8 hose or 100 metres of DN12 hose

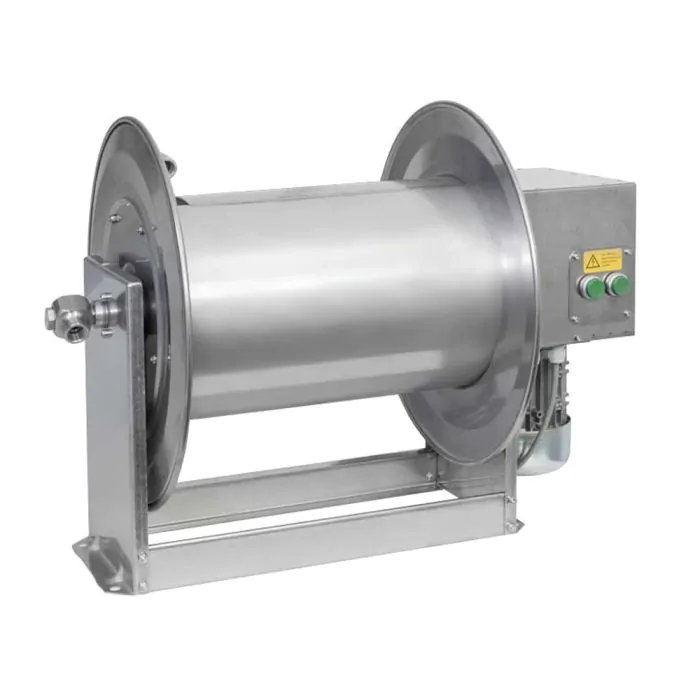

This is the STKi2Mo motorised hose reel designed and manufactured by RM Suttner in Germany which can handle longer and heavier hoses. The reel features two manual buttons that allow the reel to rotate either clockwise or anti-clockwise, hoses can also be unwound manually after disengaging the motor using the sliding clutch. The motor can be controlled from a distance using an optional remote control if required.
Â
Â
Technical Spec
| Inlet | 1/2" Female |
|---|---|
| Outlet | 1/2" Female |
| Voltage | 230 V |
| Material | Stainless Steel |
| Max Temp °C | 90 |
| Dimensions | - Height 515mm - Width 930mm |
| Commodity Code | 7326905000 |
| Weight | 24.00 |
| Country of Origin | Germany |
Datasheets
Need help?
Contact G&S 01768 865985
Overview
STKi2Mo Series Motorised hose reels.
The STKi2Mo series of electrically driven hose reels are designed for industrial and trade applications. Built with a strong base frame of folded sheet steel profiles, they offer maximum stability and durability. The reel is powered by a geared motor with a manual sliding clutch, enabling easy switching between motorised and manual operation. It features maintenance-free plastic bearing bushes and two manual buttons which allow the reel to rotate either clockwise or anti-clockwise, and an optional radio remote control provides remote operation from up to 120 meters away. Suitable for handling water, cleaning chemicals, air, oils, and greases, it is equipped with a durable stainless steel angled swivel joint (ST-322) for reliable performance across various applications.
| Type | Outer Ø | Hose Length |
|---|---|---|
| 1 | 17 mm | 125 m |
| 2 | 17 mm | 150 m |
| 3 | 17 mm | 185 m |
| 1 | 22 mm | 70 m |
| 2 | 22 mm | 85 m |
| 3 | 22 mm | 100 m |
SKU: 739602303 - Measurements - Type 3
| 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|
| 515 mm | 460 mm | 930 mm | 153 mm | 680 mm |
