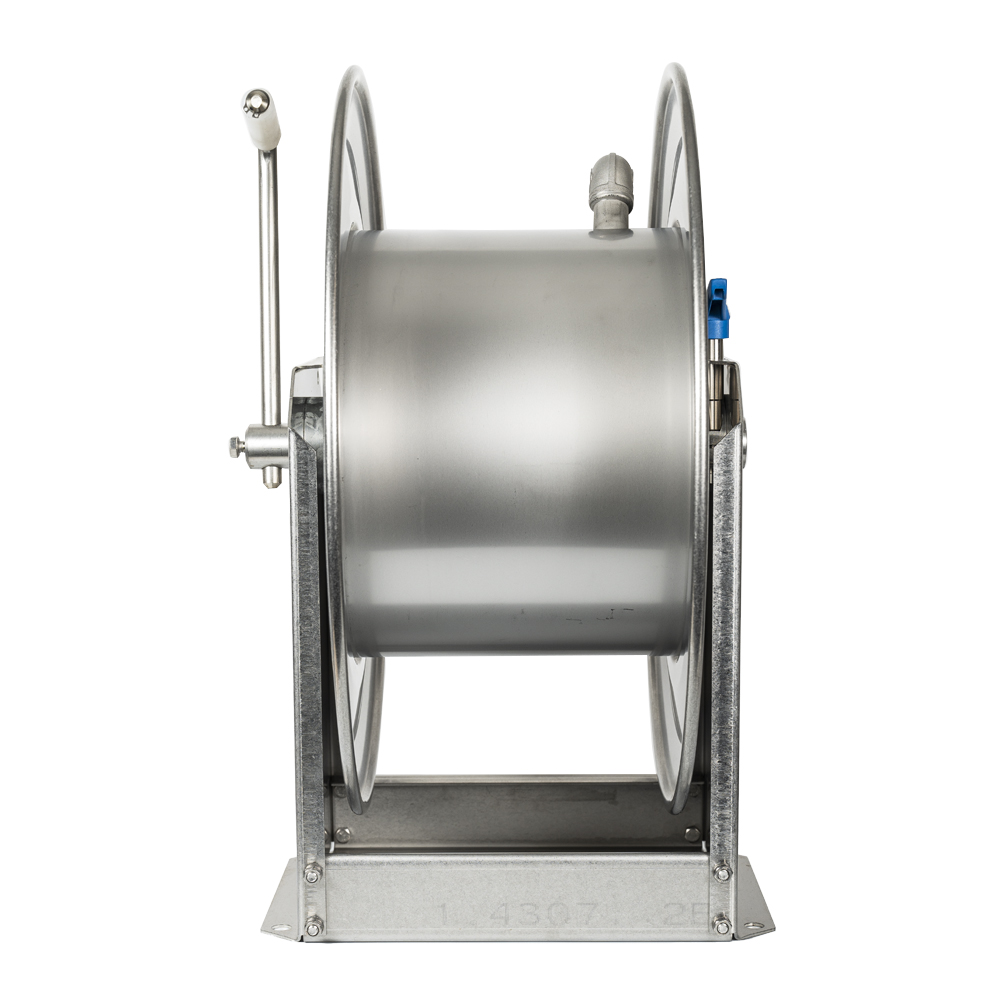

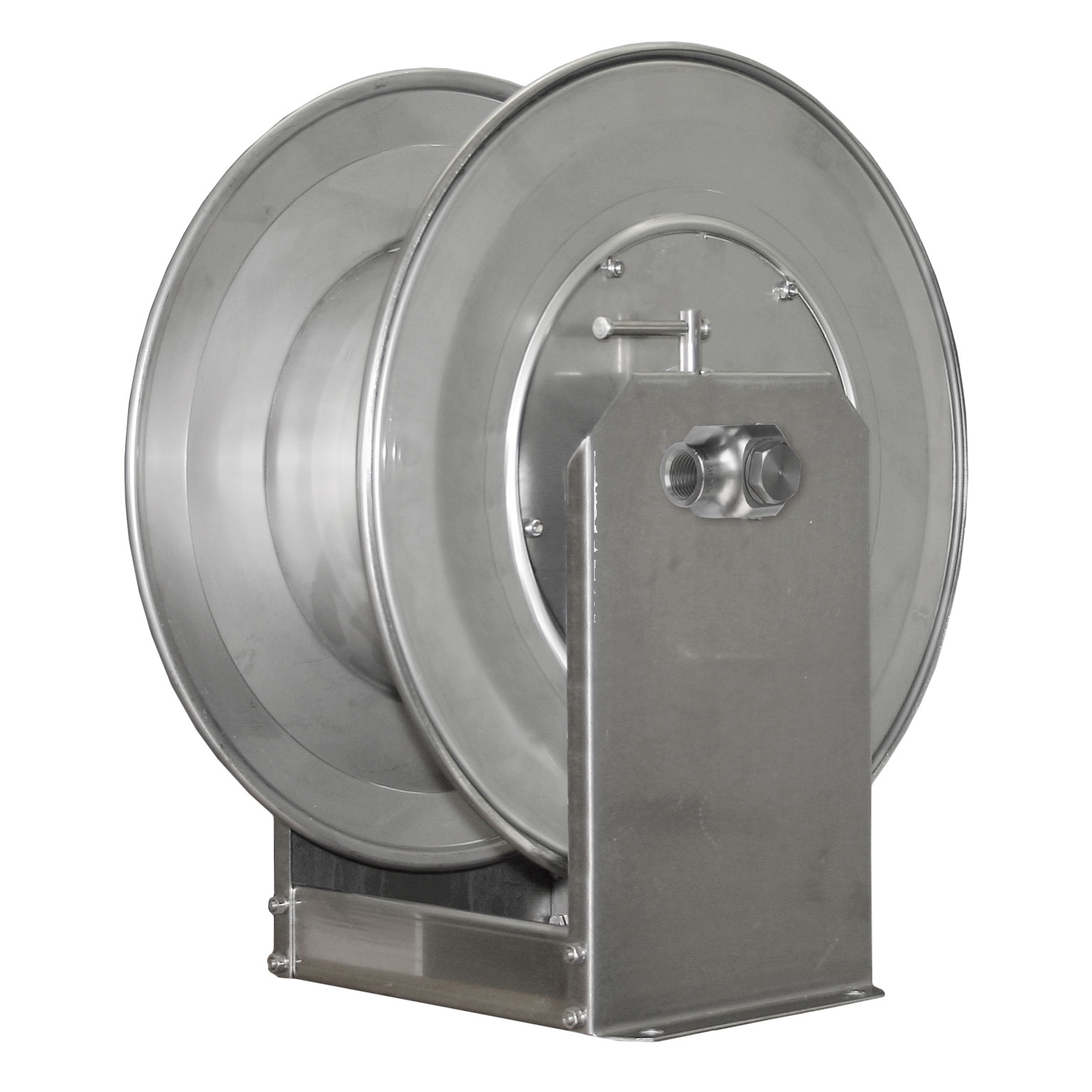

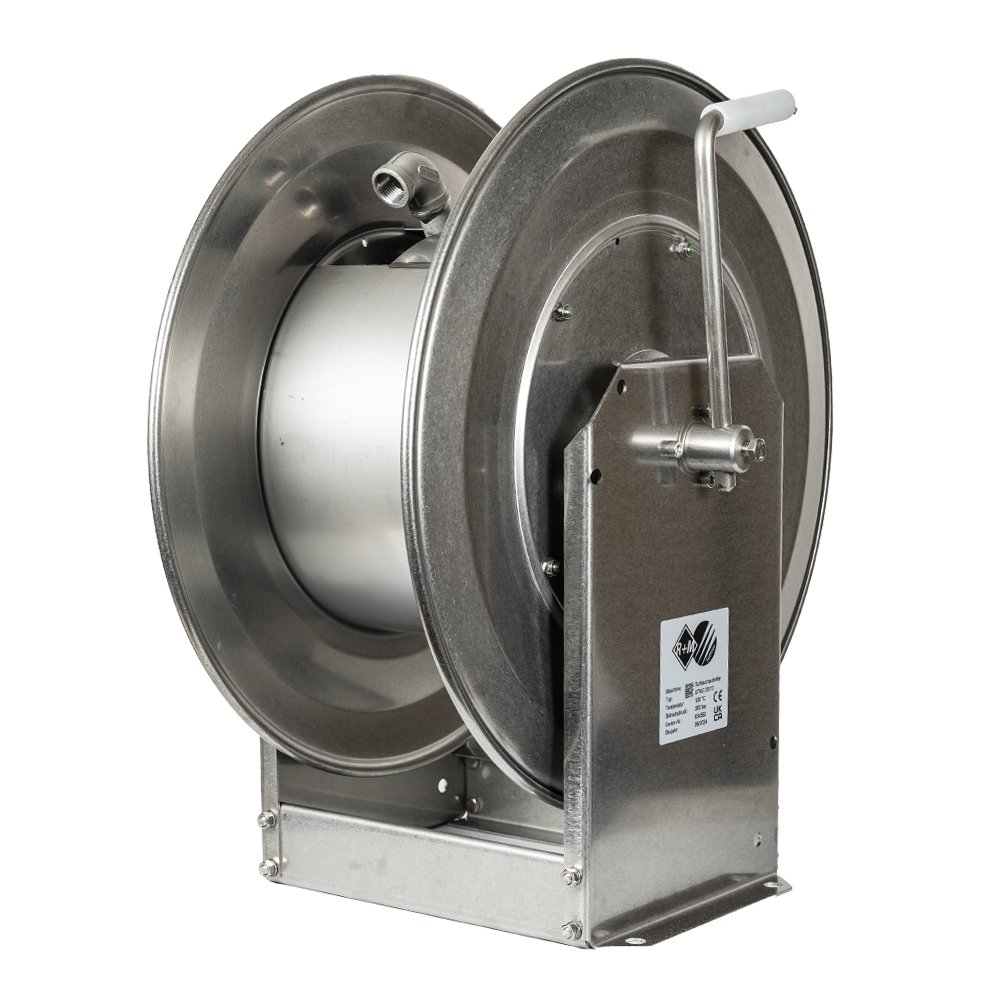

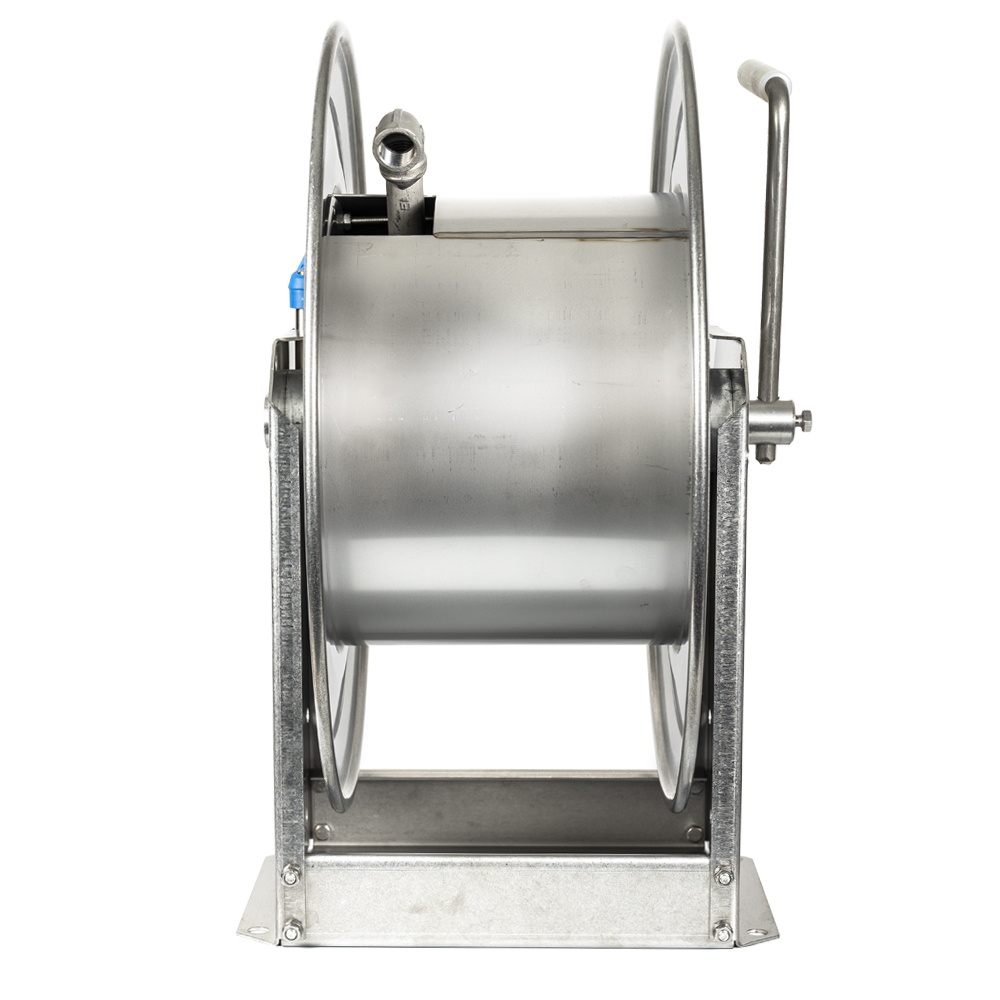

STKI STAINLESS STEEL MANUAL HOSE REEL 35M
Description
A manual stainless steel hose reel fitted with ST-322 swivel. Featuring maintenance free, chemical resistant synthetic side bearings, resistant to moisture and dirt. This can be combined with our swivel base mount (SKU HCD100819) which allows the user to angle the reel for better recoil.Â
Type 01, for hose outer diameter 22mm
= 35m hose capacity.
Technical Spec
| Inlet | 1/2" Female Swivel |
|---|---|
| Outlet | 1/2" Female |
| Material | Stainless Steel |
| Bar | 300 |
| Length | 35m |
| Max Temp °C | 90 |
| DN Internal Diameter | 12mm |

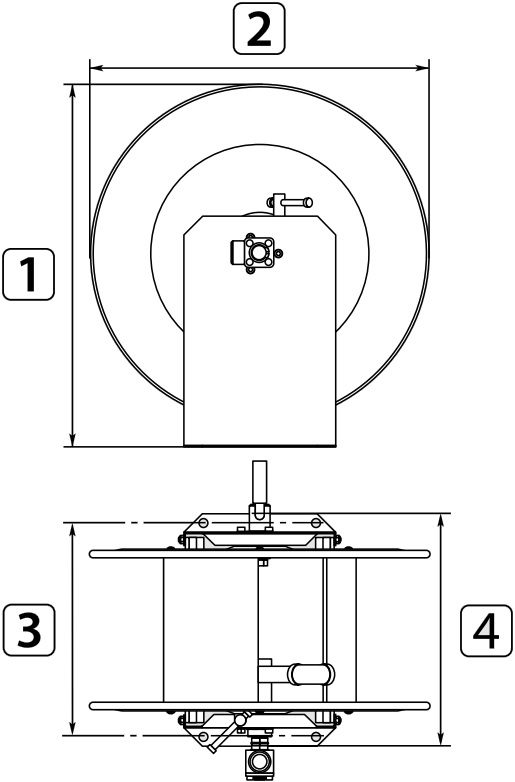

| Dimensions | - Height 515mm - Width 312mm - Depth 465mm - Reel width 280mm |
| Commodity Code | 8479899790 |
| Weight | 10.50 |
| Country of Origin | Germany |
Datasheets
Need help?
Contact G&S 01768 865985
Overview
Manual Hose Reel
Stainless Steel Manual Hose Reel – 35m
The STKI series is ideal for use in both craft and industrial applications.

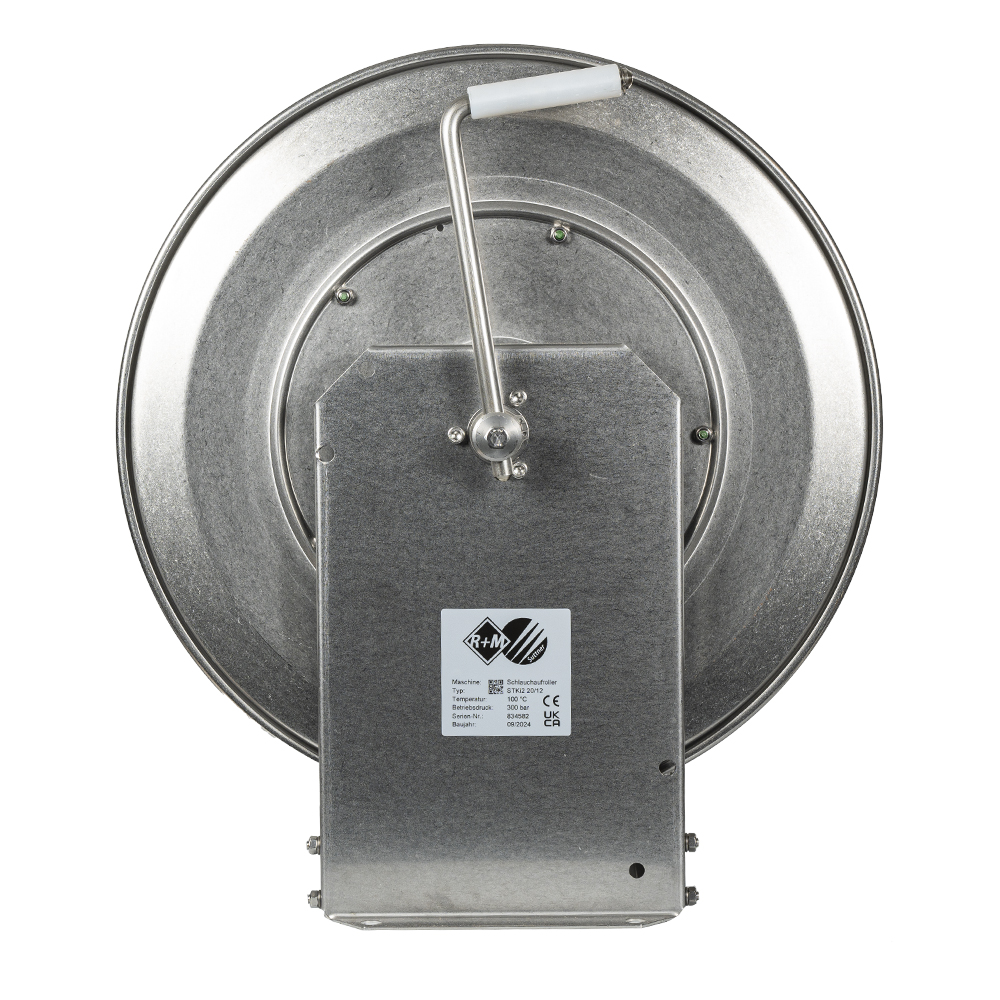

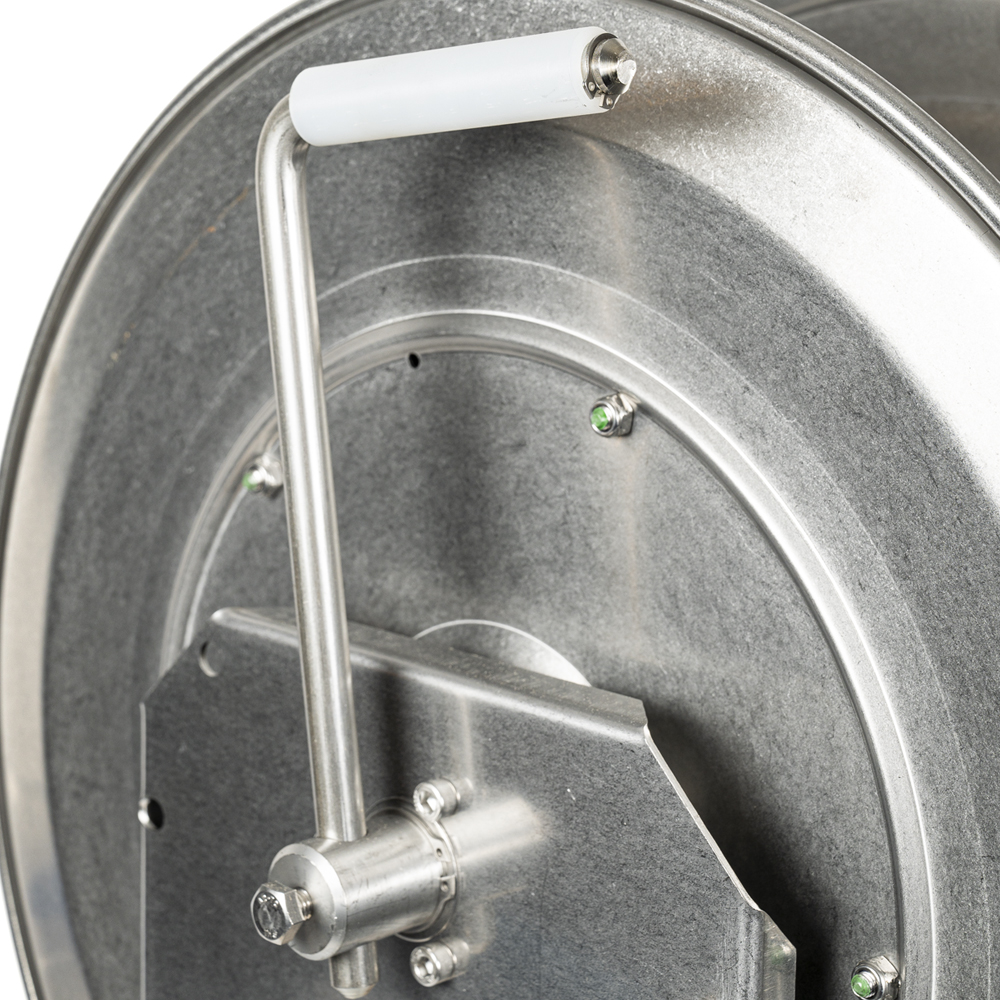

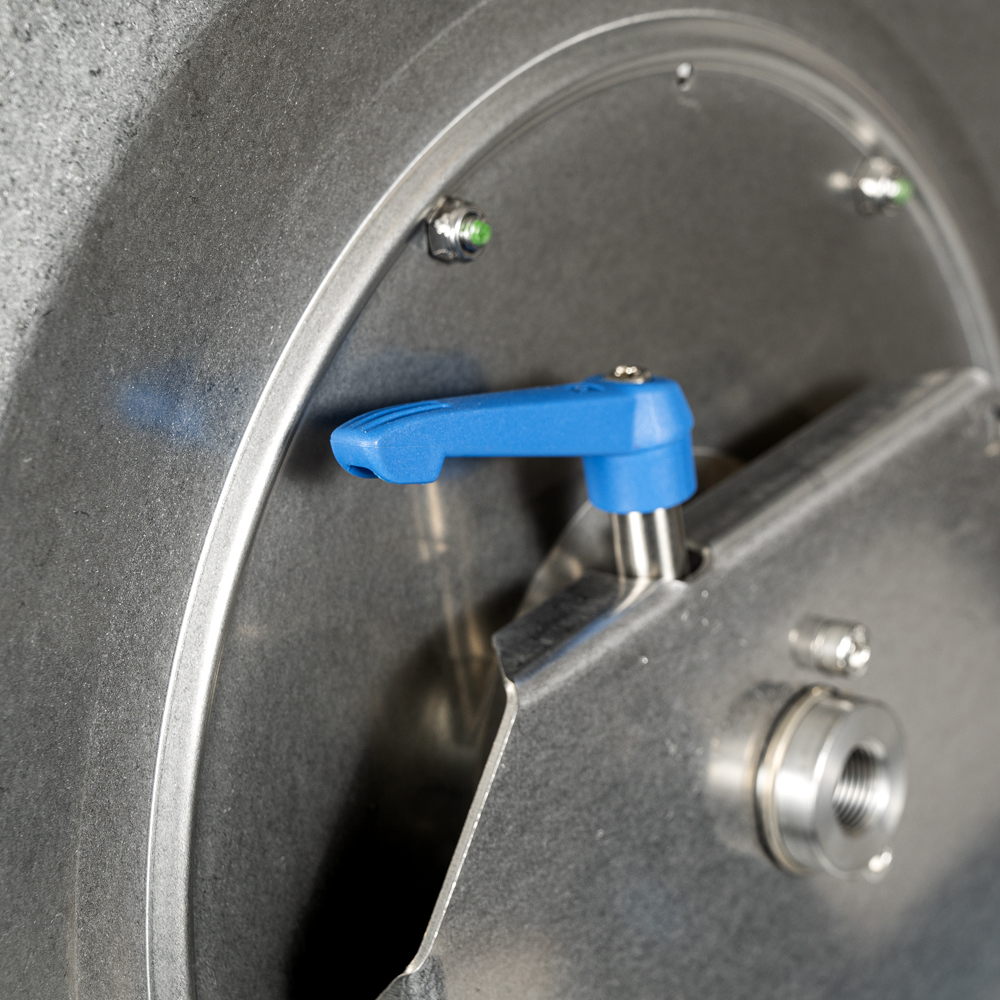

The base frame is constructed from angled steel sheet profiles, ensuring excellent stability. The drum rotates via an adjustable handwheel equipped with a free-wheeling polyamide grip. A built-in mechanical brake allows for controlled deceleration of the drum or complete locking when needed.

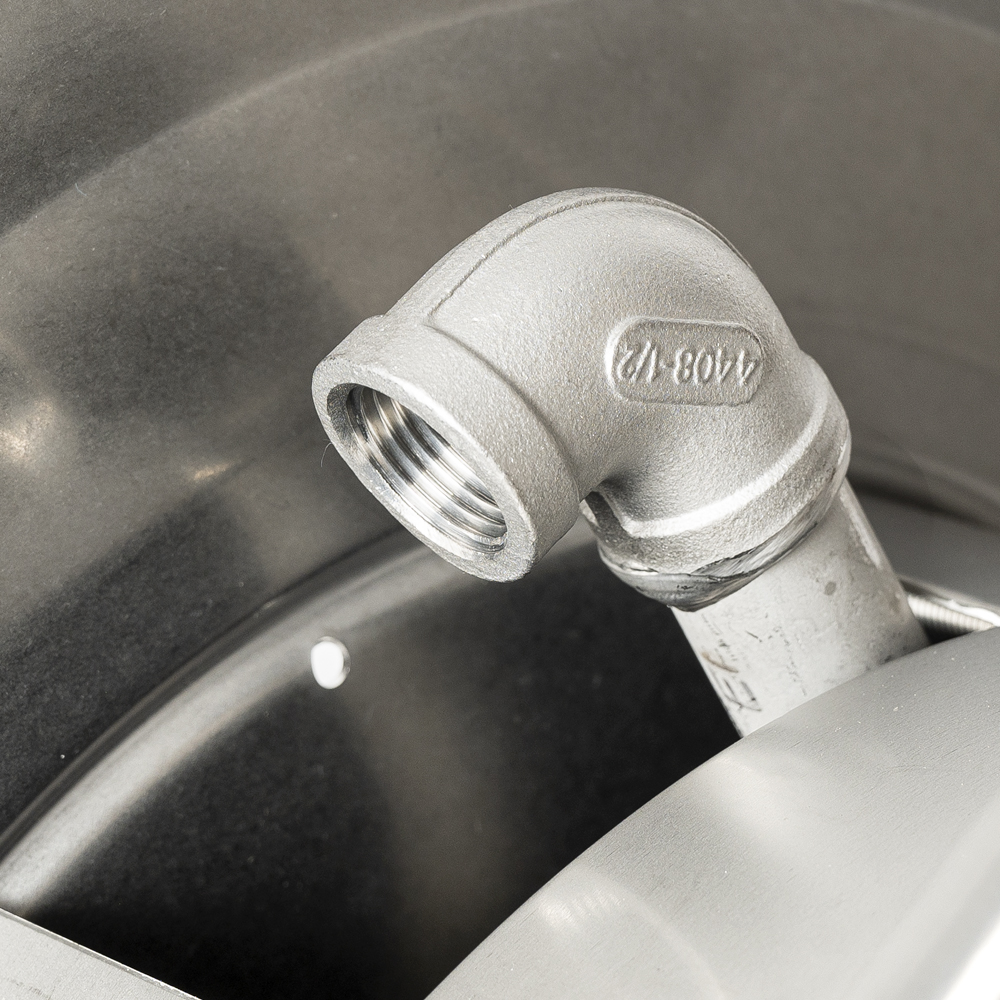

All hose reels come with a stainless steel ST-322 swivel and are suitable for use with water, cleaning detergents, air, oils, and greases.
