MOSMATIC DOUBLE CAR WASH BOOM, 2500mm & 2250mm, Ceiling mounted.
Description
The Mosmatic Dual Ceiling Boom is engineered for high-performance cleaning in professional car wash and industrial environments. Featuring two independently rotating arms on a single stem, this boom is ideal for applications such as self-service bays and fleet wash setups. When using high and low pressure we recommend to connect the low pressure to the upper boom.
Technical Spec
| Inlet | 1/4" Female |
|---|---|
| Outlet | 1/4" Male |
| Material | Stainless Steel |
| Bar | 275 |
| Length | 2.5m |
| Max Temp °C | 90 |
| Commodity Code | 7326909290 |
| Weight | 20.89 |
| Country of Origin | Switzerland |
Need help?
Contact G&S 01768 865985
Overview
Mosmatic double car wash boom, 2500mm & 2250mm, Ceiling mounted. Especially developed for High and Low pressure. Ready for installation with three integrated swivels, professional high pressure hose with spring and integrated hose bend restrictors.
Axle 2-ball bearings and permanently lubricated.
*Attention: Delivery time of approx 2 weeks.
Key Features:
-
Dual 360° Swiveling Arms: Provides maximum manoeuvrability, allowing for seamless operation of both high-pressure and foam brush systems.
-
Robust Construction: Crafted from polished 304 stainless steel, ensuring durability and resistance to corrosion in demanding conditions.
-
High Pressure and Temperature Tolerance: Handles pressures up to 275 Bar (4000 PSI) and temperatures up to 120°C, accommodating a variety of cleaning requirements.
-
Versatile Fluid Compatibility: Suitable for water, oil, and air applications with a pH range of 3–12, making it adaptable to diverse cleaning solutions.
-
Standardised Connections: Equipped with 2x G1/4" female inlets and 2x G1/4" male outlets, facilitating straightforward integration into existing systems.
Installation and Maintenance:
Delivered ready for installation, the boom includes all necessary components for setup. Its design emphasises low maintenance, with features like self-lubricating ball bearings and high-quality swivels to ensure long-term reliability.
Product Specifications:
-

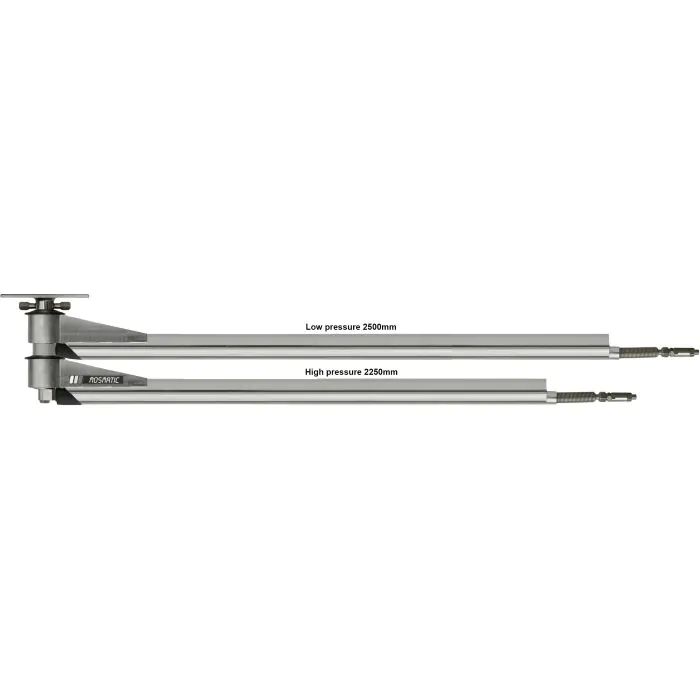

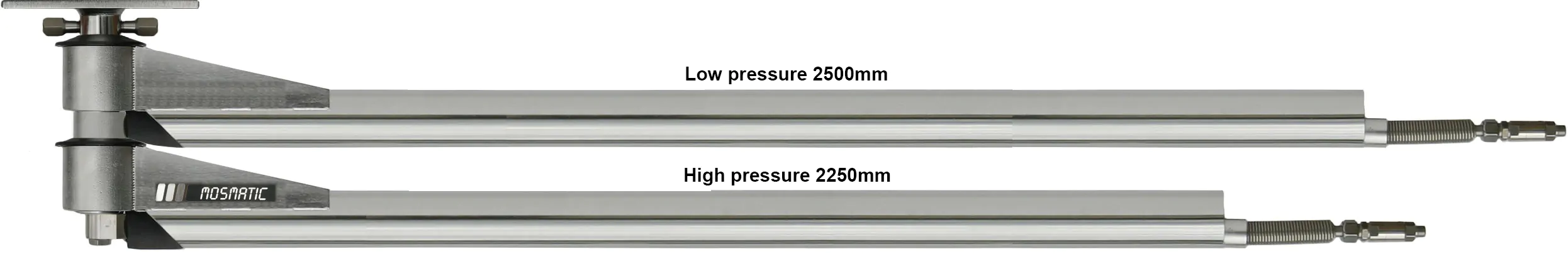

Arm Lengths: Low pressure 2500mm and High pressure 2250mm
-
Maximum Pressure: 275 Bar (4000 PSI)
-
Maximum Temperature: 120°C
-
Material: 304 Stainless Steel
-
Inlet Threads: 2x G1/4" Female
-
Outlet Threads: 2x G1/4" Male
-
Weight: Approximately 21.1 kg
