ST 40. STAINLESS STEEL AUTOMATIC HOSE REEL
SKU
74060
Description
Up to 55m Capacity
Inlet 3/8" female
Outlet 3/8" female
For DN 10 hose
400 Bar
Max 90°C
Technical Spec
| Inlet | 3/8" Female |
|---|---|
| Outlet | 3/8" Female |
| Material | Stainless Steel |
| Bar | 400 |
| Max Temp °C | 90 |
| DN Internal Diameter | 10mm |

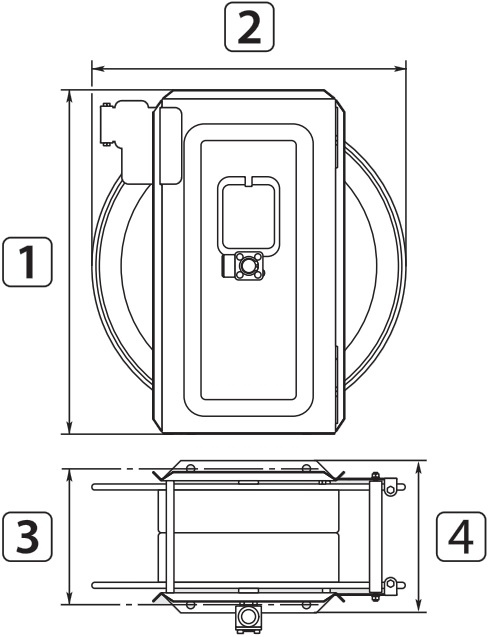

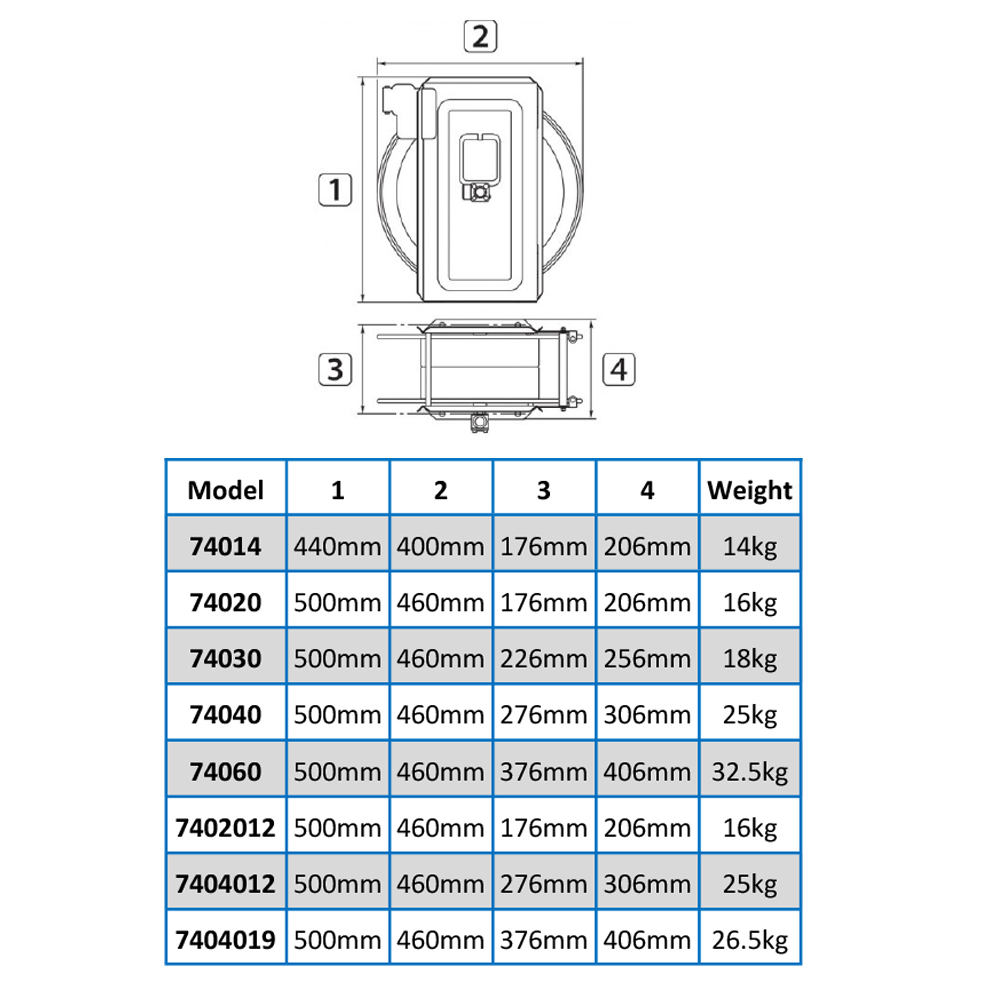

| Dimensions | - Height 500mm - Width 406mm - Depth 460mm - Reel Width 376mm |
| Weight | 28.50 |
Datasheets
Need help?
Contact G&S 01768 865985
Related Products
HOSE GUIDE, COMPACT.
Product Code:
74106
WALL BRACKET WITH SWIVEL
Product Code:
741012
BOLTS SET FOR WALL SWIVEL BRACKETS
Product Code:
74102
HOSE STOP 12-30mm BLUE ONLY
Product Code:
74103
WALL BRACKET WITH SWIVEL
Product Code:
741003
ST322 SWIVEL ELBOW SS 3/8"F X 3/8"M
Product Code:
200322500
Overview

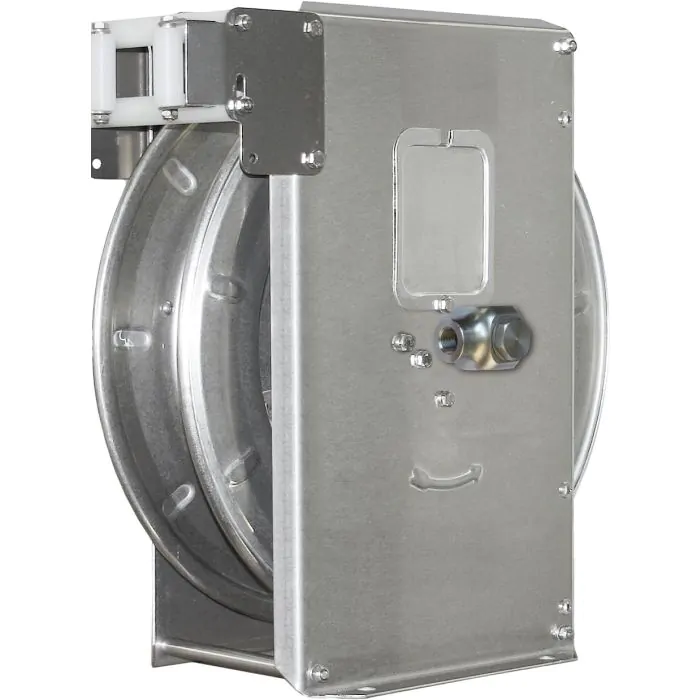

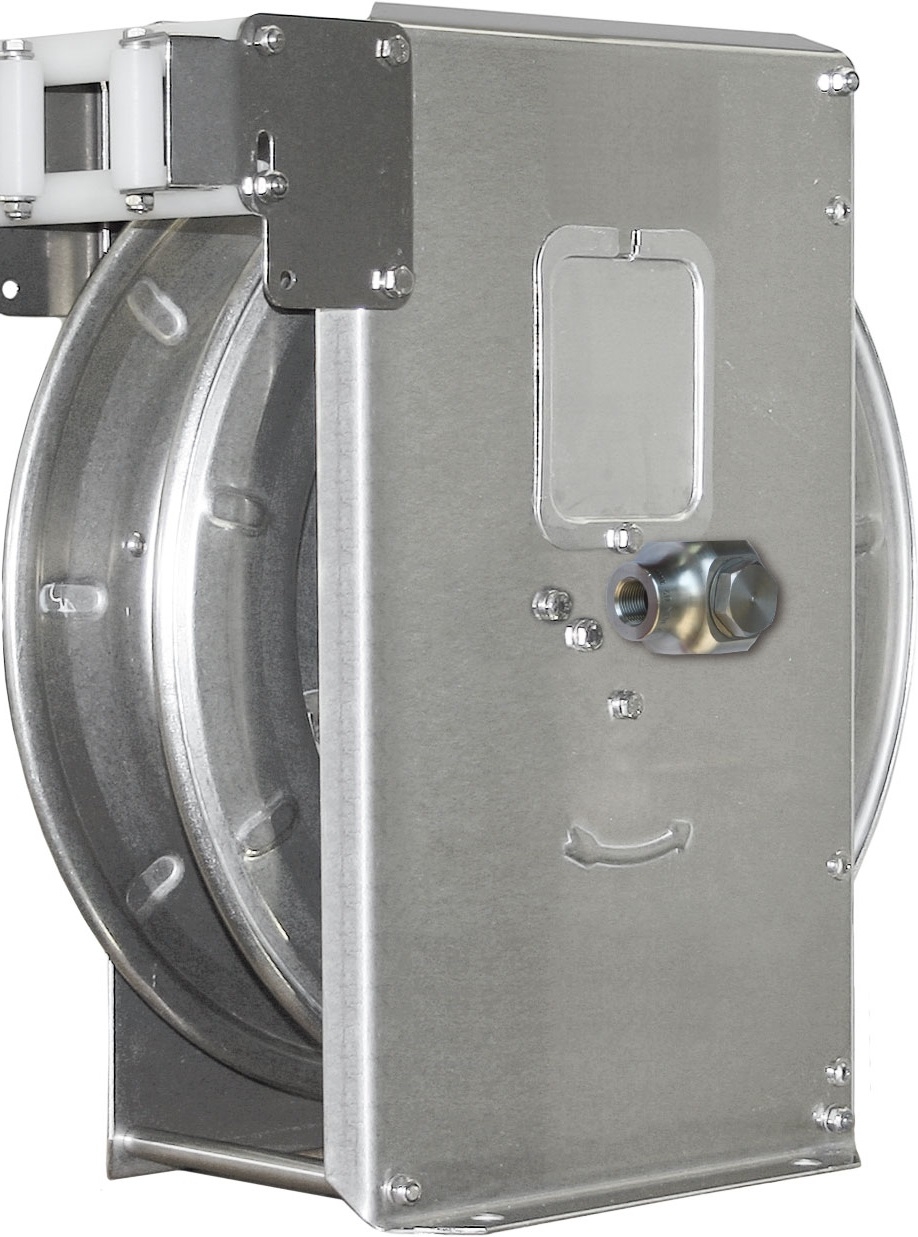

Stainless steel automatic hose reel.
The ST series are robust and reliable hose reels, with automatic spring return with the following features:
Maintenance free slide bearings made out of chemical, water and dirt resistant plastic.
There are 8 positions per rotation to stop the hose, a quick pull releases the locking mechanism.
The hose reels are all equipped with a Stainless Steel ST-322 swivel.
Suitable for the mediums: water, cleaning detergent, air, oils and greases.
(V2A / AISI 304)
