ST 30. STAINLESS STEEL AUTOMATIC HOSE REEL
SKU
740301
Description
Up to 25m Capacity Inlet M22 male Outlet M22 male For DN 10 hose 400 Bar Max 90°C
= 25m of DN 10 hose capacity.
Technical Spec
| Inlet | M22 Male |
|---|---|
| Outlet | M22 Male |
| Material | Stainless Steel |
| Bar | 400 |
| Max Temp °C | 90 |
| DN Internal Diameter | 10mm |

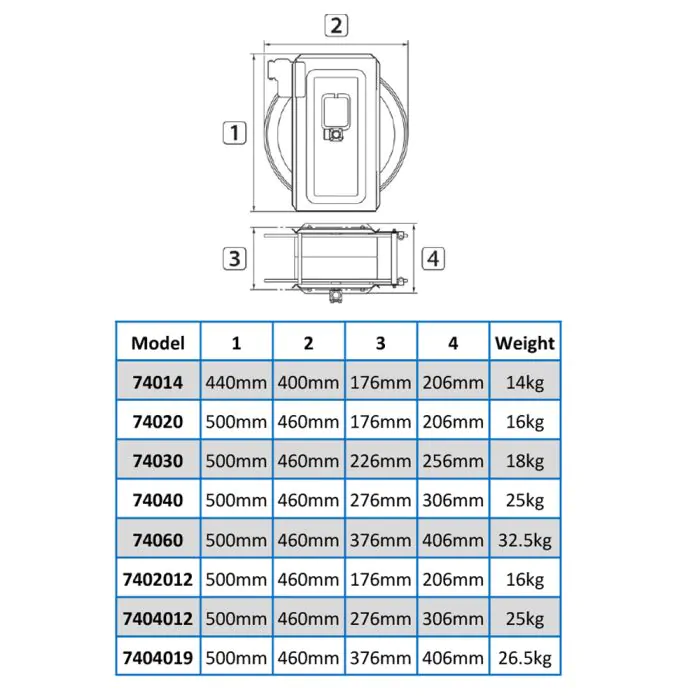

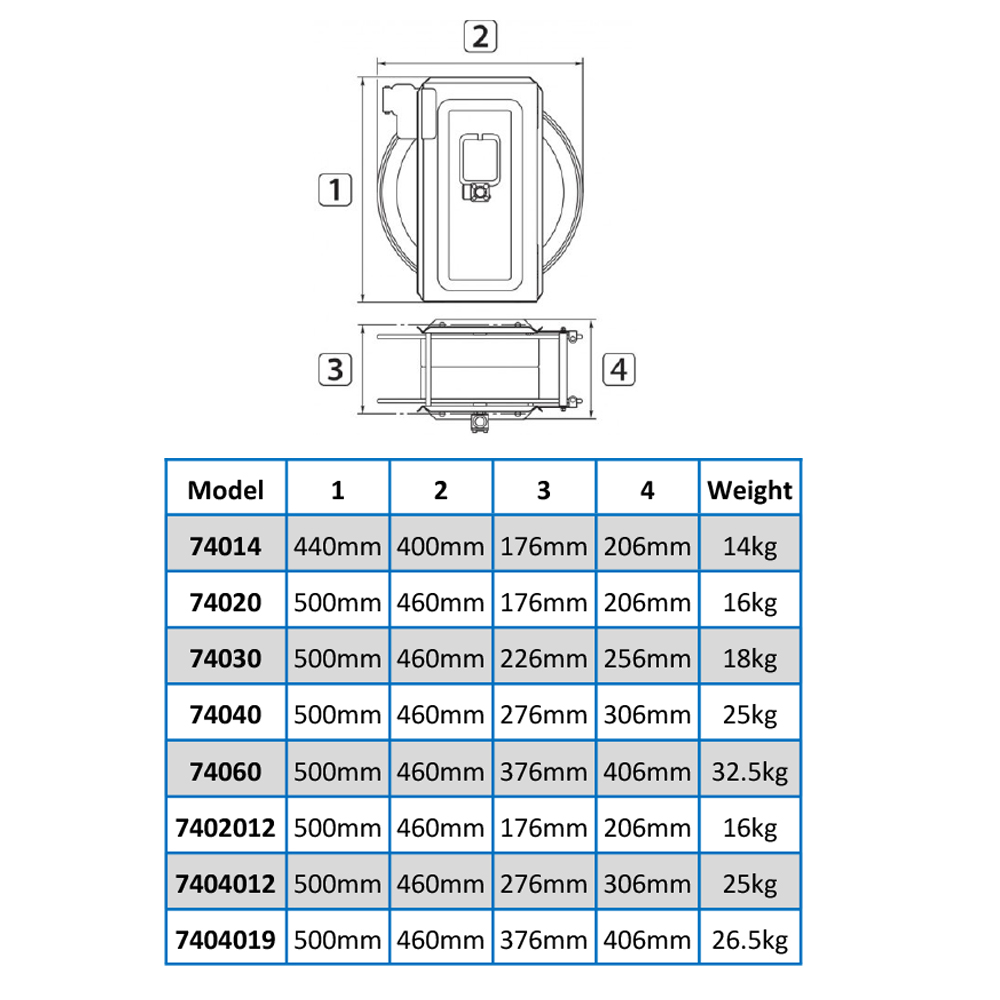

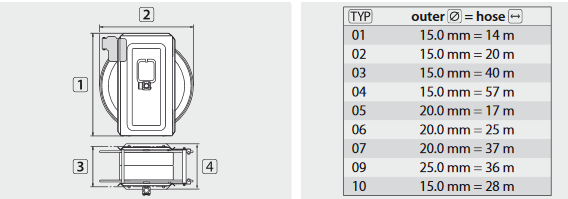

| Dimensions | - Height 500mm - Width 256mm - Depth 460mm - Reel Width 226mm |
| Weight | 19.60 |
| Country of Origin | Germany |
Datasheets
Need help?
Contact G&S 01768 865985
Related Products
HOSE GUIDE, COMPACT.
Product Code:
74106
BOLTS SET FOR WALL SWIVEL BRACKETS
Product Code:
74102
WALL BRACKET WITH SWIVEL
Product Code:
741011
HOSE STOP 12-30mm BLUE ONLY
Product Code:
74103
WALL BRACKET WITH SWIVEL
Product Code:
741001
Overview

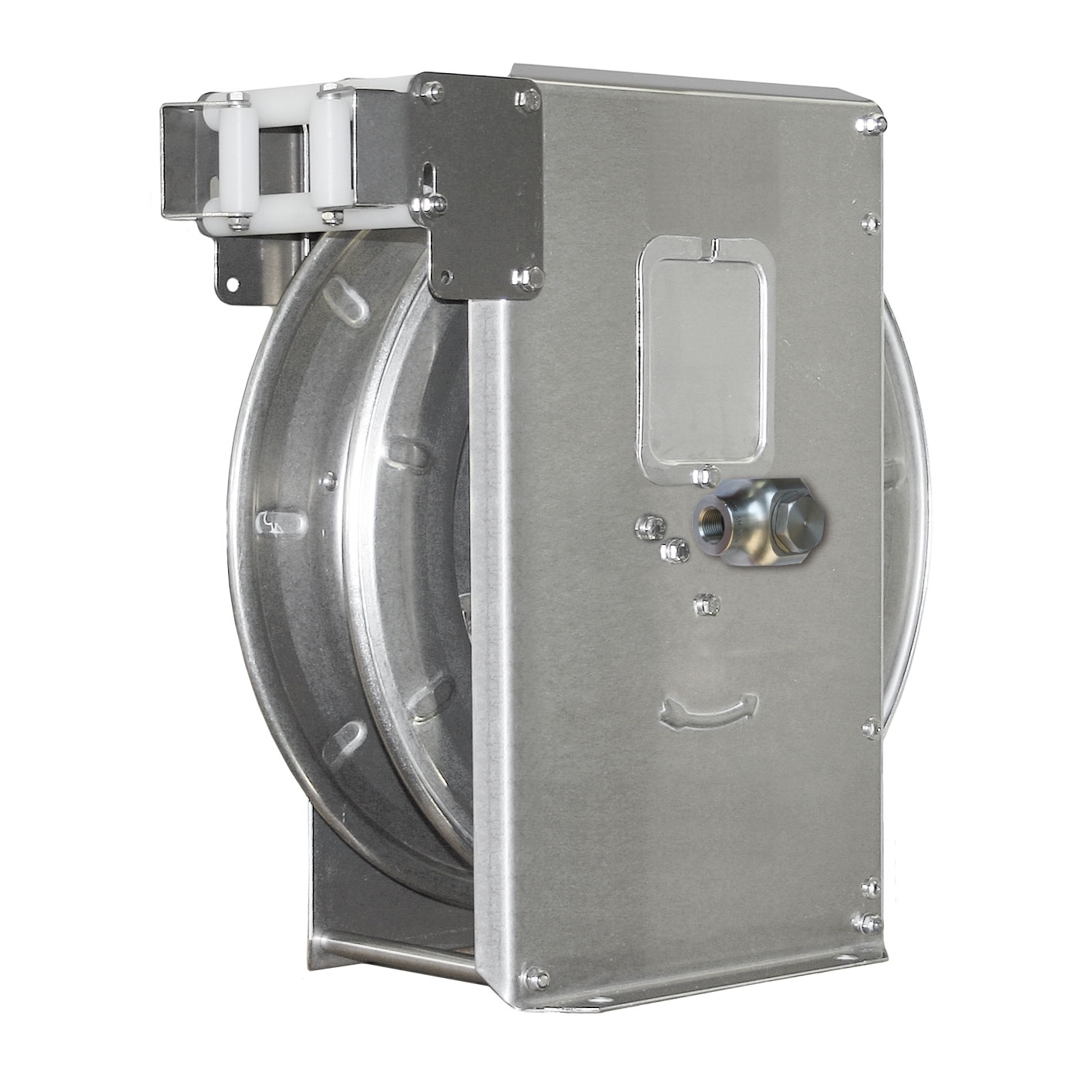

STAINLESS STEEL AUTOMATIC HOSE REEL
The ST series are robust and reliable hose reels, with automatic spring return with the following features:
Maintenance free slide bearings made out of chemical, water and dirt resistant plastic.
There are 8 positions per rotation to stop the hose, a quick pull releases the locking mechanism.
the hose reels are all equipped with a Stainless Steel ST-322 swivel.
Suitable for the mediums: water, cleaning detergent, air, oils and greases.
(V2A / AISI 304)
