RM 564 STAINLESS STEEL AUTOMATIC HOSE REEL UP TO 60M
Description
Type 04, suitable for following hoses:
22mm hose = 60m capacity
30mm hose = 40m capacity
35mm hose = 30m capacity
For DN 10 hose
Technical Spec
Inlet | 1/2" Female |
---|---|
Outlet | 1/2" Female |
Material | Stainless Steel |
Bar | 300 |
Length | 60m |
Max Temp °C | 90 |
DN Internal Diameter | 10mm |

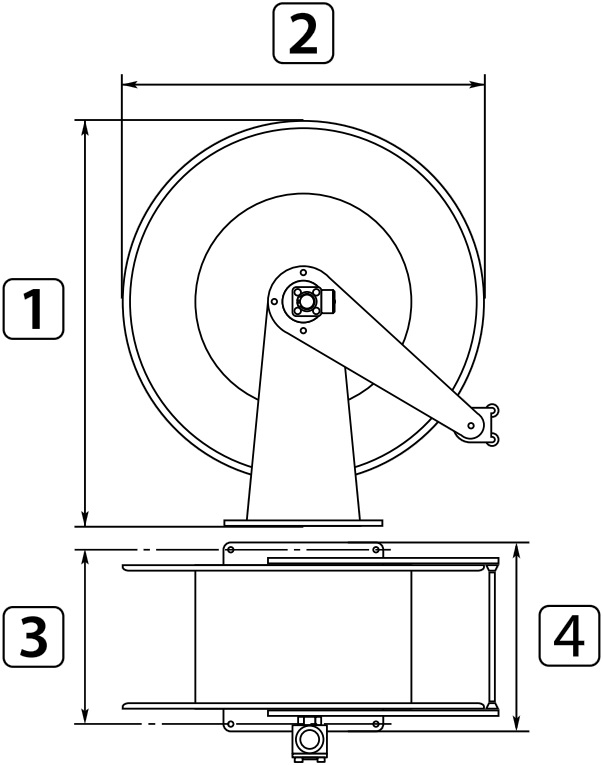

Dimensions | - Height 578mm - Width 488mm - Depth 510mm - Reel Width 399mm |
Commodity Code | 8479899790 |
Weight | 50.50 |
Datasheets
-
RM 564 Exploded View Download
Need help?
Contact G&S 01768 865985
Overview

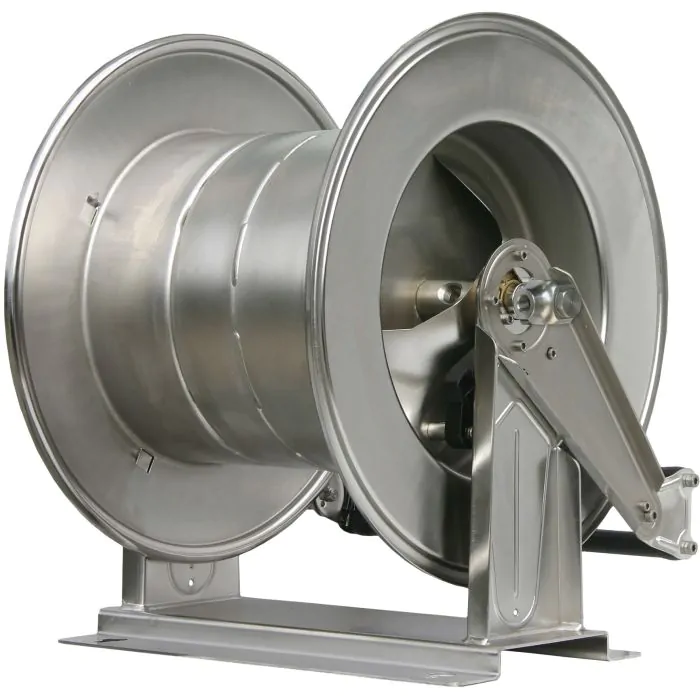

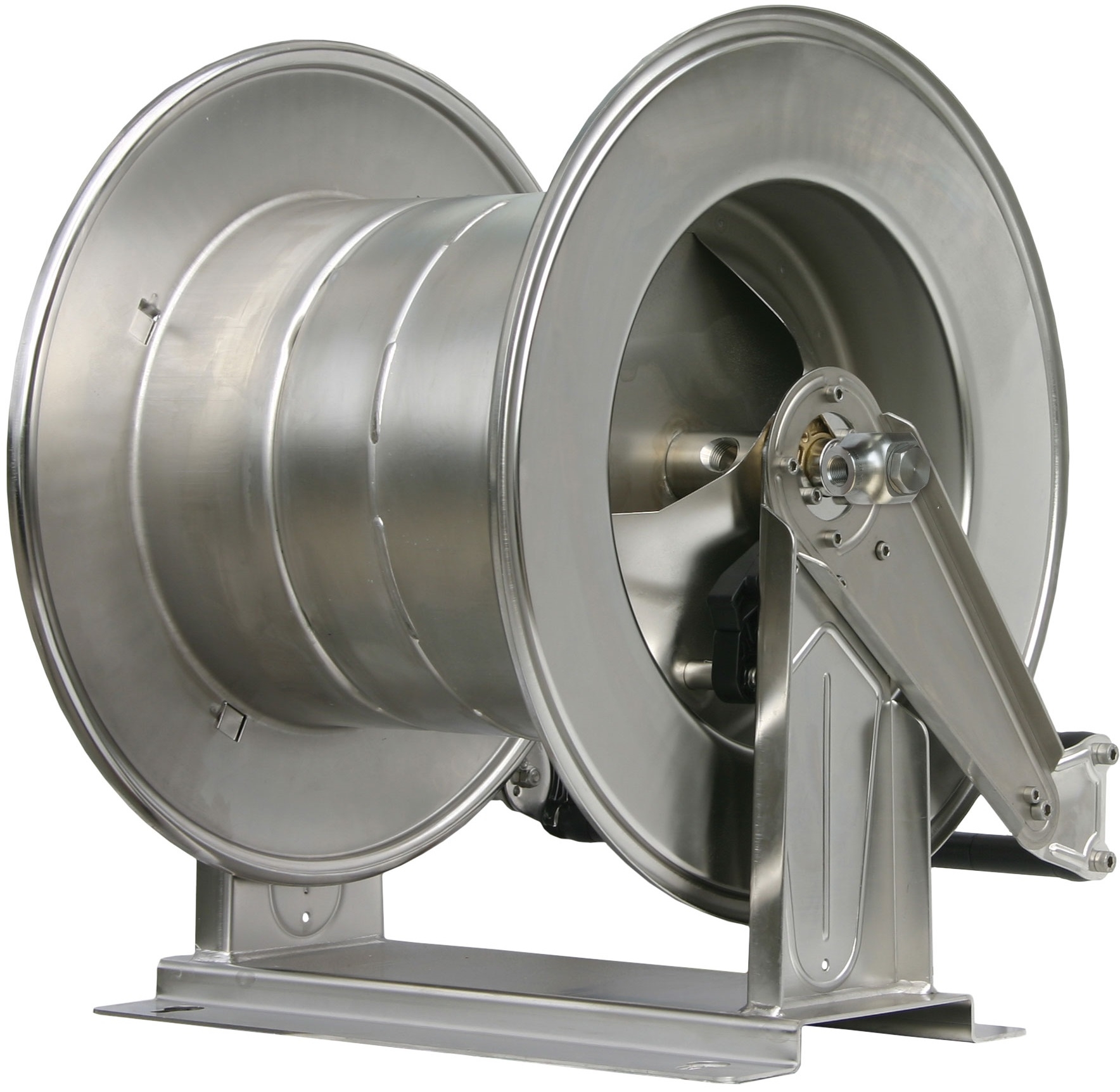

Stainless Steel Automatic Hose Reel.
Suitable for hose up to 60 metres in length, extremely high quality and used for applications in service stations, garages, agriculture and building industries. These hose reels are easy to install and can be fitted to walls, ceilings or vehicles, an optional wall bracket enables easy mounting of the hose reel. Both fixed and swivelling brackets available made from V2A / AISI 304 Stainless Steel. All hose reel models offer traction release, a quick pull will release the locking mechanism. All hose reels come with a stainless steel ST322 swivel and are suitable for water, cleaning detergent, air, oils and greases.
According to directive 94/9/EG (Atex 95/100) the hose reels are suitable for applications in mining and explosion-proof areas.
They can be used in explosive zones 1 + 2 (gas) and 21 + 22 (dust), the temperature has to be defined accordingly.
