ST 30. POWDER COATED AUTOMATIC HOSE REEL
SKU
75030
Description
Up to 30m Capacity
Inlet 3/8" female
Outlet 3/8" female
For DN 10 hose
400 Bar
Max 90°C
Technical Spec
| Inlet | 3/8" Female |
|---|---|
| Outlet | 3/8" Female |
| Material | Powder Coated Steel |
| Bar | 400 |
| Colour | Red |
| Max Temp °C | 90 |
| DN Internal Diameter | 10mm |

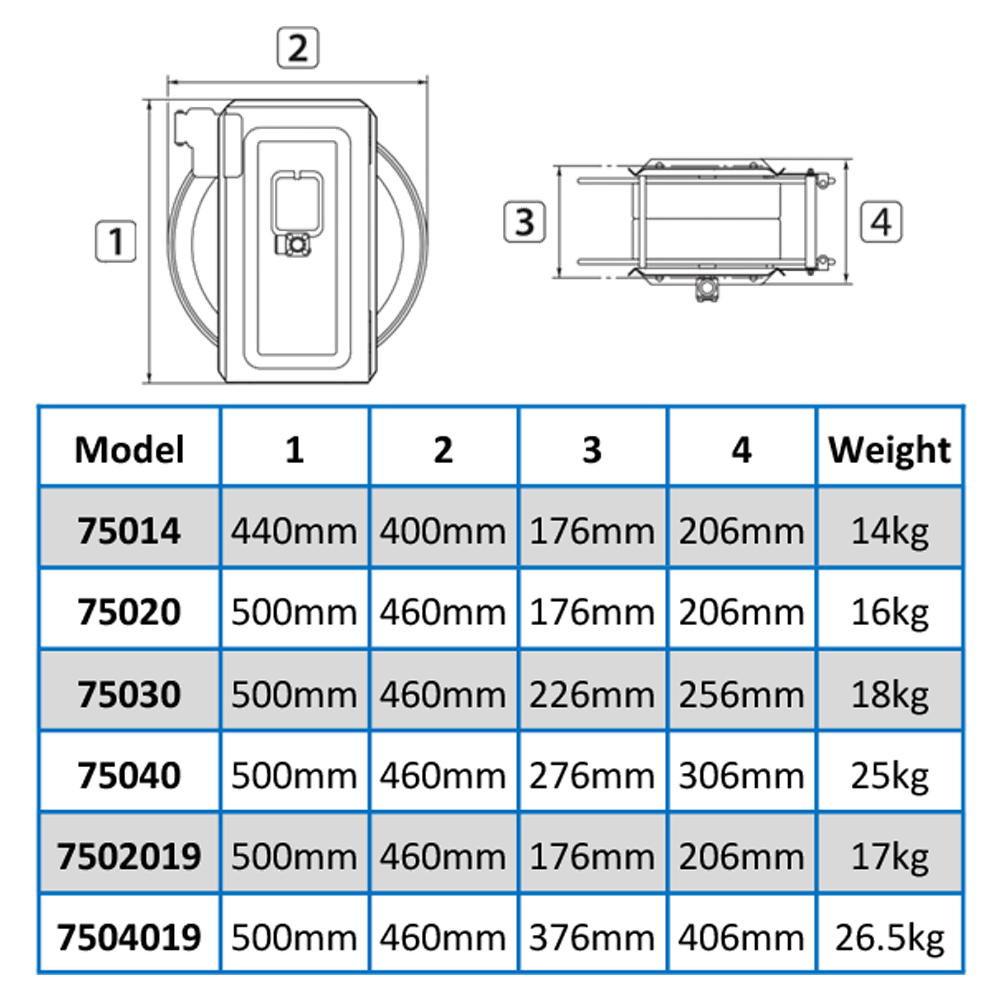

| Dimensions | - Height 500mm - Width 256mm - Depth 460mm - Reel Width 226mm |
| Weight | 19.00 |
| Country of Origin | Germany |
Datasheets
Need help?
Contact G&S 01768 865985
Related Products
WALL BRACKET WITH SWIVEL
Product Code:
741011
BOLTS SET FOR WALL SWIVEL BRACKETS
Product Code:
74102
Overview

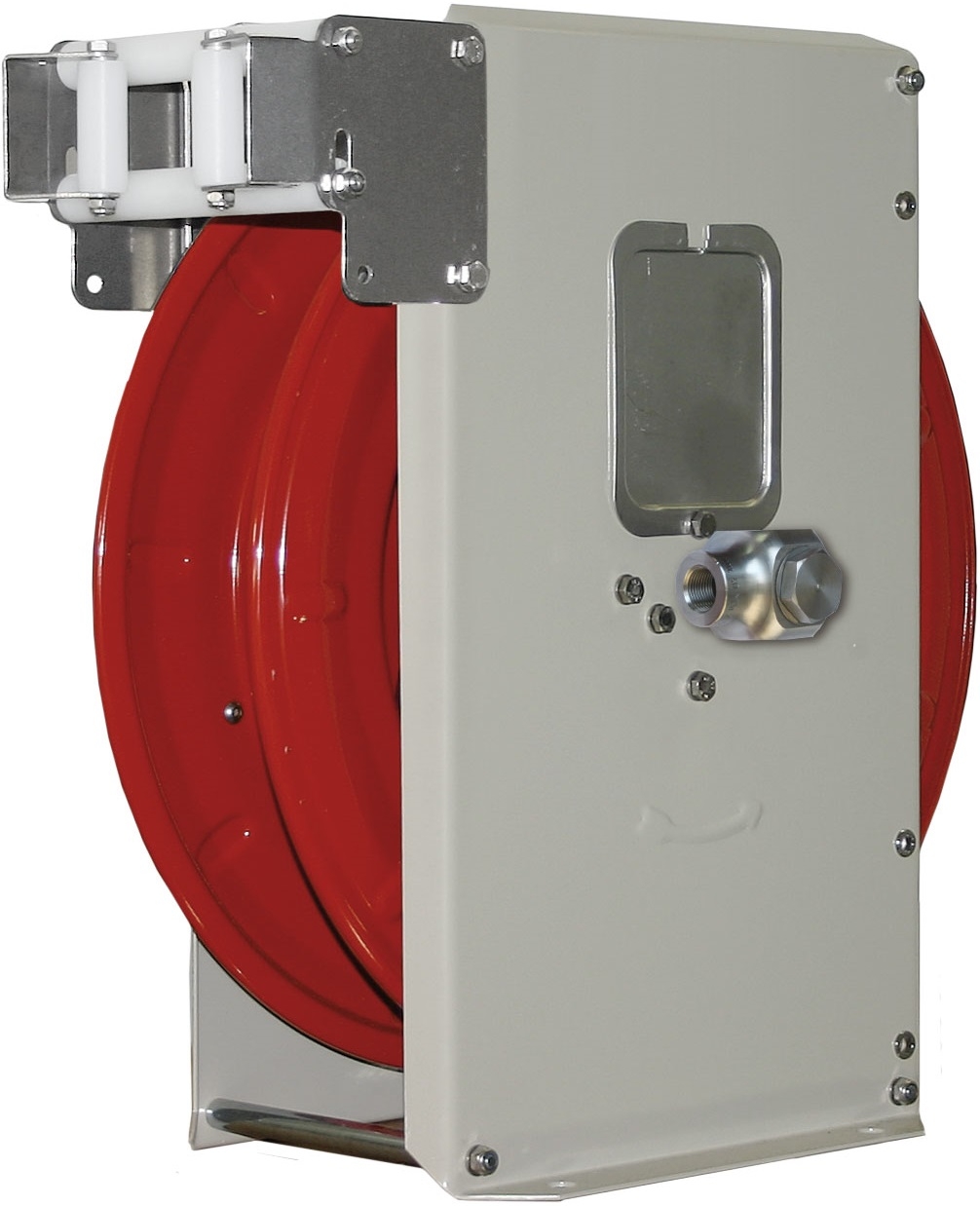

POWDER COATED AUTOMATIC HOSE REEL
The ST series are robust and reliable hose reels, with automatic spring return with the following features:
Maintenance free slide bearings made out of chemical, water and dirt resistant plastic.
There are 8 positions per rotation to stop the hose, a quick pull releases the locking mechanism.
the hose reels are all equipped with a Stainless Steel ST-322 swivel.
Suitable for the mediums: water, cleaning detergent, air, oils and greases.
Click here to view on page 389 of 2020 R+M Catalogue
