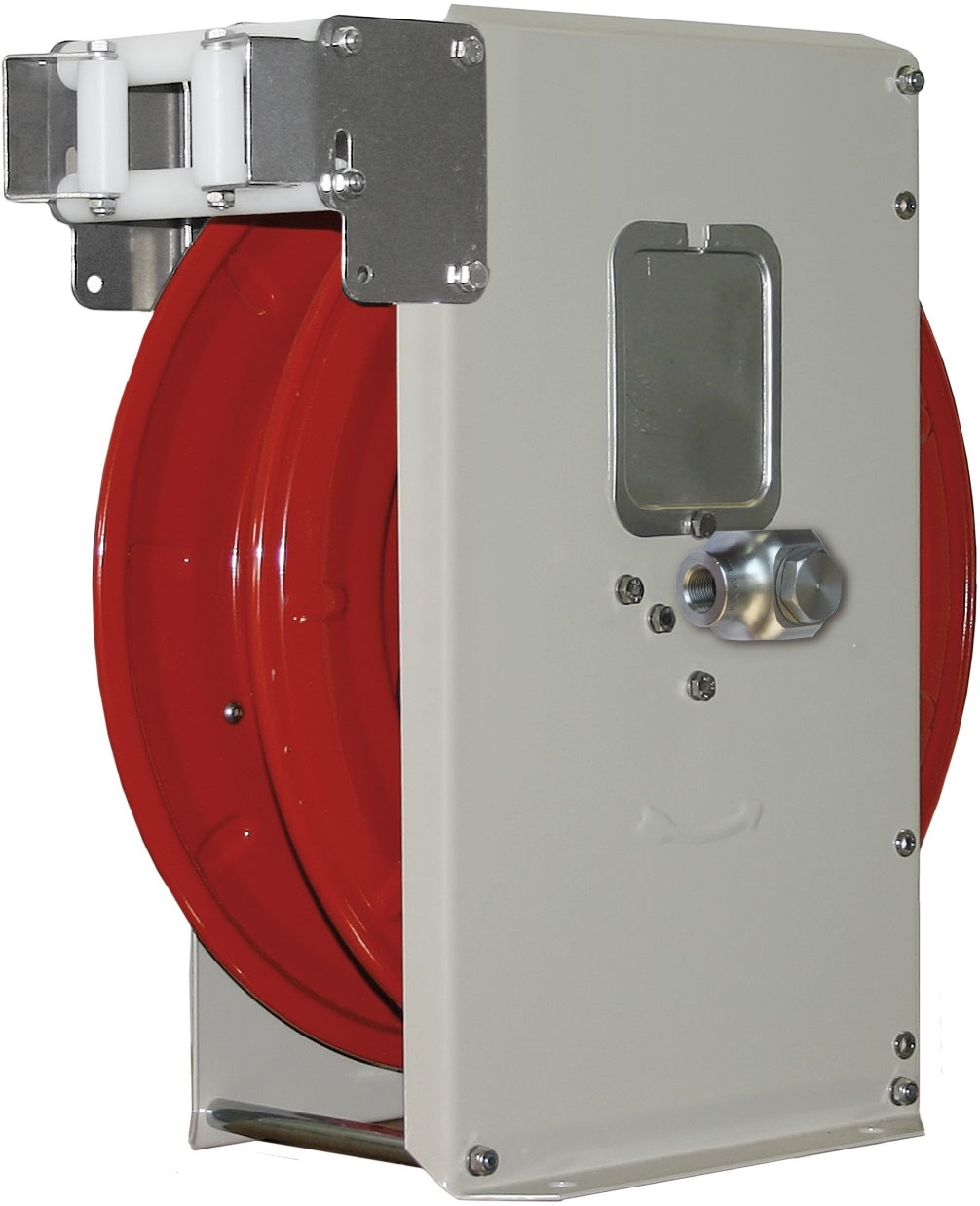

ST 20. POWDER COATED AUTOMATIC HOSE REEL

ST 20. POWDER COATED AUTOMATIC HOSE REEL

SKU

Description

Up to 20m Capacity Inlet 3/8" female Outlet 3/8" female For DN 10 hose 100 Bar Max 90°C

= 20m of DN 8 hose capacity.
= 17m of DN 10 hose capacity.

Technical Spec

Inlet 3/8" Female
Outlet 3/8" Female
Material Powder Coated Steel
Bar 100
Colour Red
Max Temp °C 90
DN Internal Diameter 10mm

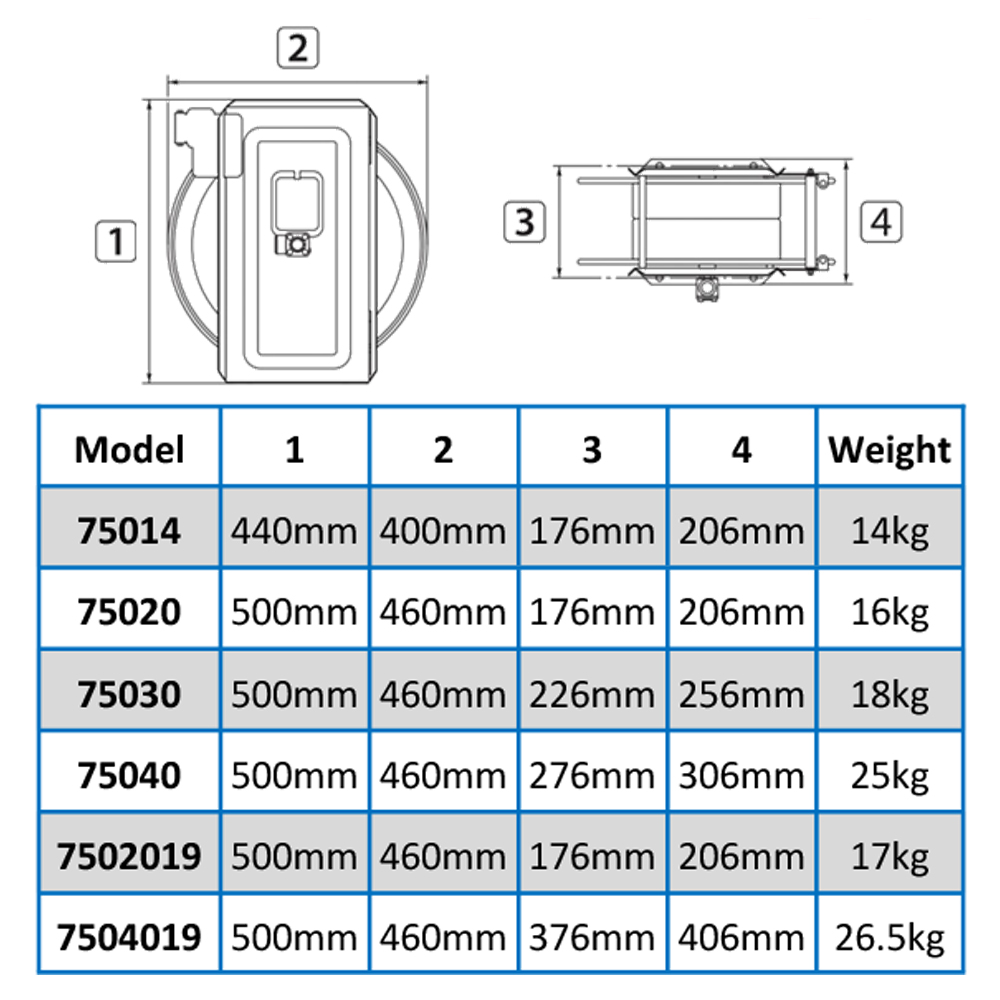

Dimensions - Height 500mm
- Width 206mm
- Depth 400mm
- Reel Width 176mm
Commodity Code 8424200000
Weight 17.50
Country of Origin Germany

Need help?

Contact G&S 01768 865985

Overview

Powder coated automatic hose reel. The ST series are robust and reliable hose reels, with automatic spring return with the following features: Maintenance free slide bearings made out of chemical, water and dirt resistant plastic. There are 8 positions per rotation to stop the hose, a quick pull releases the locking mechanism. The hose reels are all equipped with a Stainless Steel ST-322 swivel. Suitable for the mediums: water, cleaning detergent, air, oils and greases.
