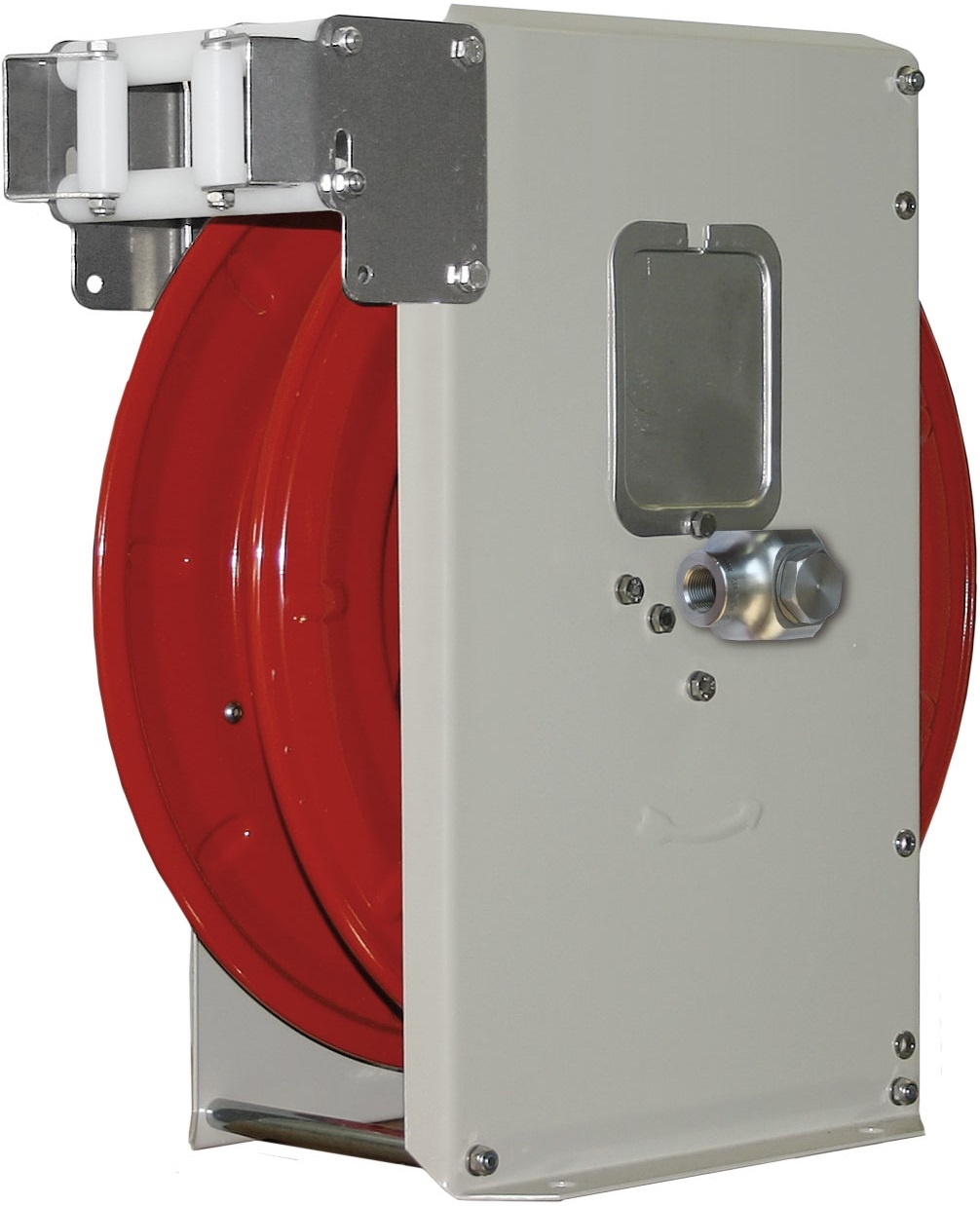

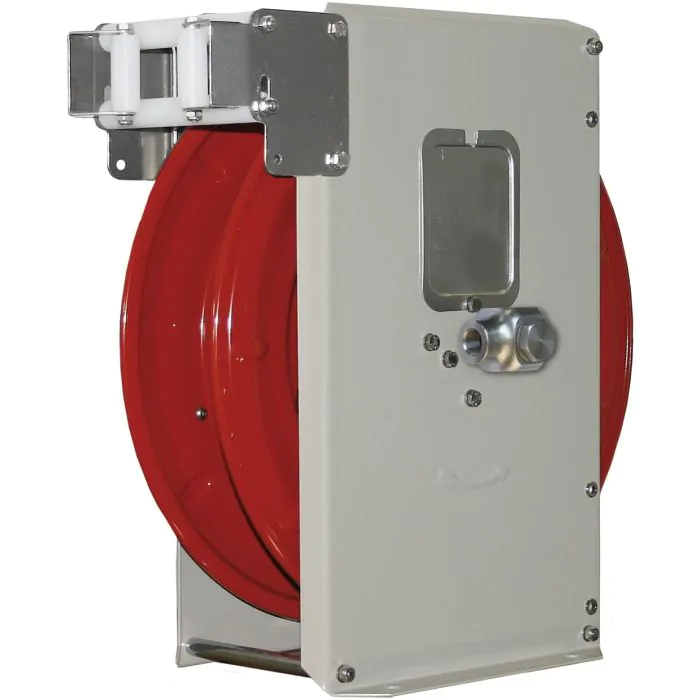

PC AUTO HOSE REEL 14 MTR 3/8"F 100 BAR
SKU
75014100
Description
This automatic powder coated hose reel features 3/8"" female inlet and outlet, maintenance free slide bearings made out of chemical, water and dirt resistant plastic. A quick pull release the locking mechanism.
DN hose capacity
= 14m of DN 8 hose capacity.
= 12m of DN 10 hose capacity.Â
Â
Technical Spec
| Inlet | 3/8" Female |
|---|---|
| Outlet | 3/8" Female |
| Material | Powder Coated Steel |
| Bar | 100 |
| Max Temp °C | 90 |
| DN Internal Diameter | 10mm |

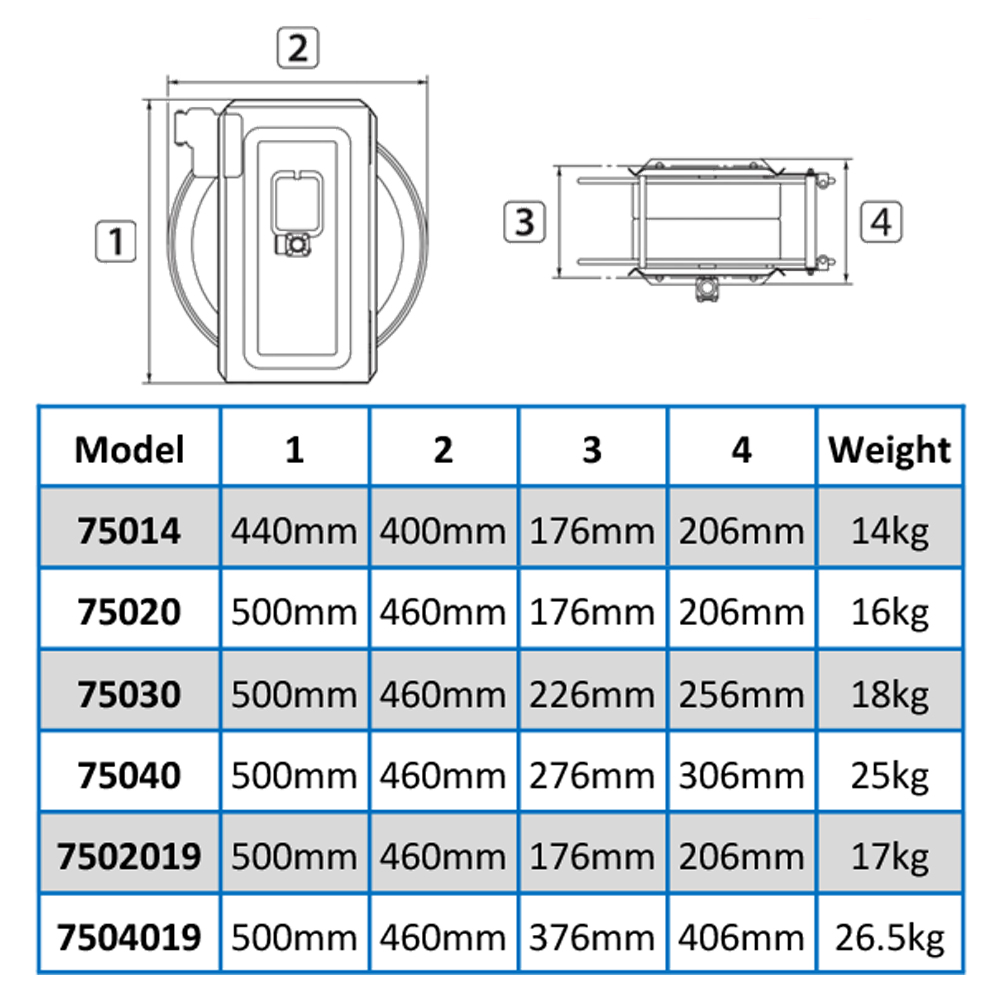

| Dimensions | - Height 440mm - Width 206mm - Depth 400mm - Reel Width 176mm |
| Commodity Code | 8424200000 |
| Weight | 14.00 |
| Country of Origin | Germany |
Need help?
Contact G&S 01768 865985
Related Products
SWIVEL ELBOW LOW PRESS 3/8"F x 3/8"M
Product Code:
200322501
BOLTS SET FOR WALL SWIVEL BRACKETS
Product Code:
74102
WALL BRACKET WITH SWIVEL
Product Code:
74100
Overview
Automatic Hose Reels
The ST Series Hose Reels are designed to be both robust and reliable, featuring an automatic spring return for effortless retraction. Built to withstand tough conditions, these reels come with maintenance-free slide bearings made from chemical, water, and dirt-resistant plastic. With 8 stopping positions per rotation, the hose can be securely locked in place, and a quick pull releases the locking mechanism when needed.
