CONTROL BOX 400V P.O.A

CONTROL BOX 400V P.O.A

SKU

Description

Motor control for the operation of motors with 4 - 7.5 kw power at 400 vac, 50HZ, IP 65. RAL7035.

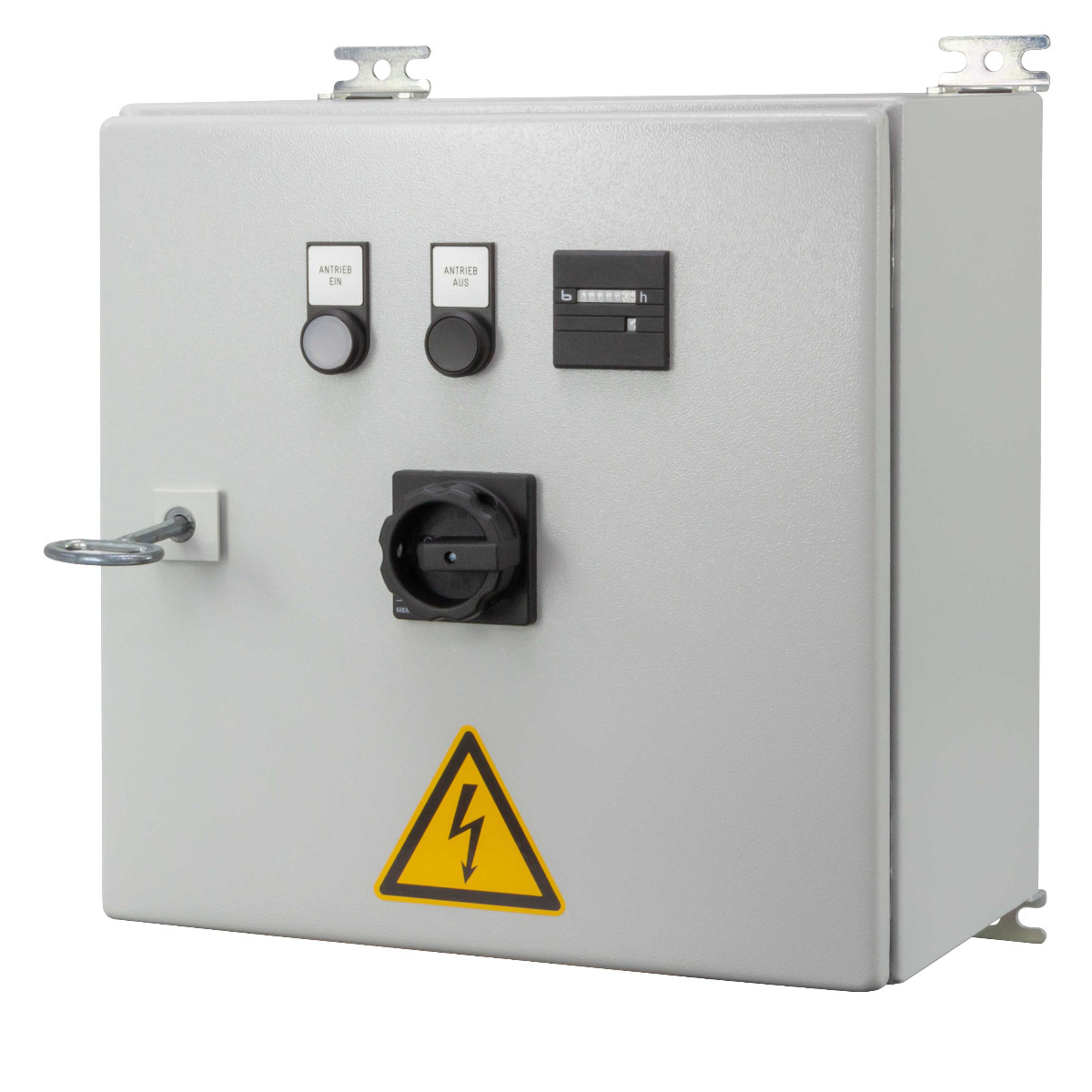

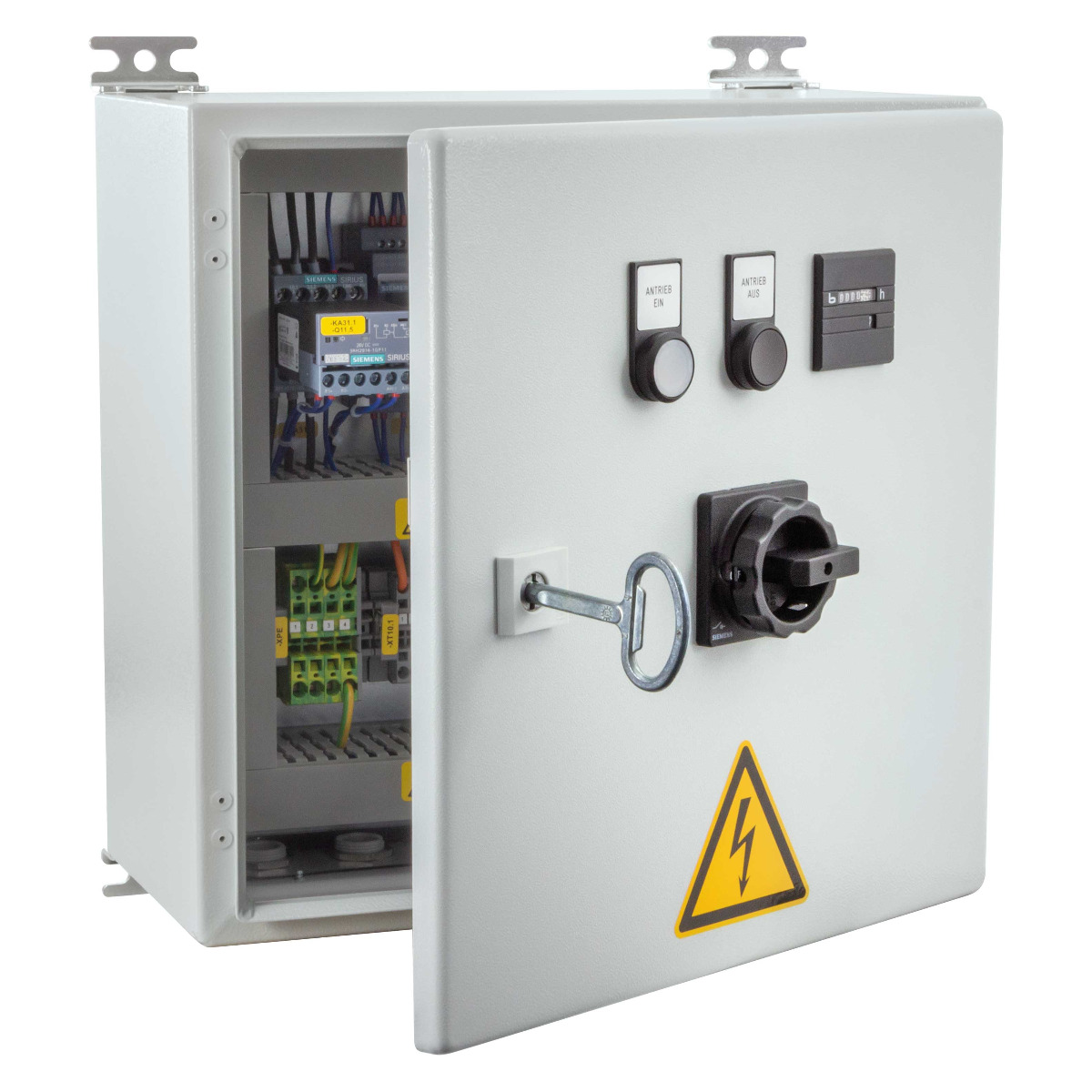

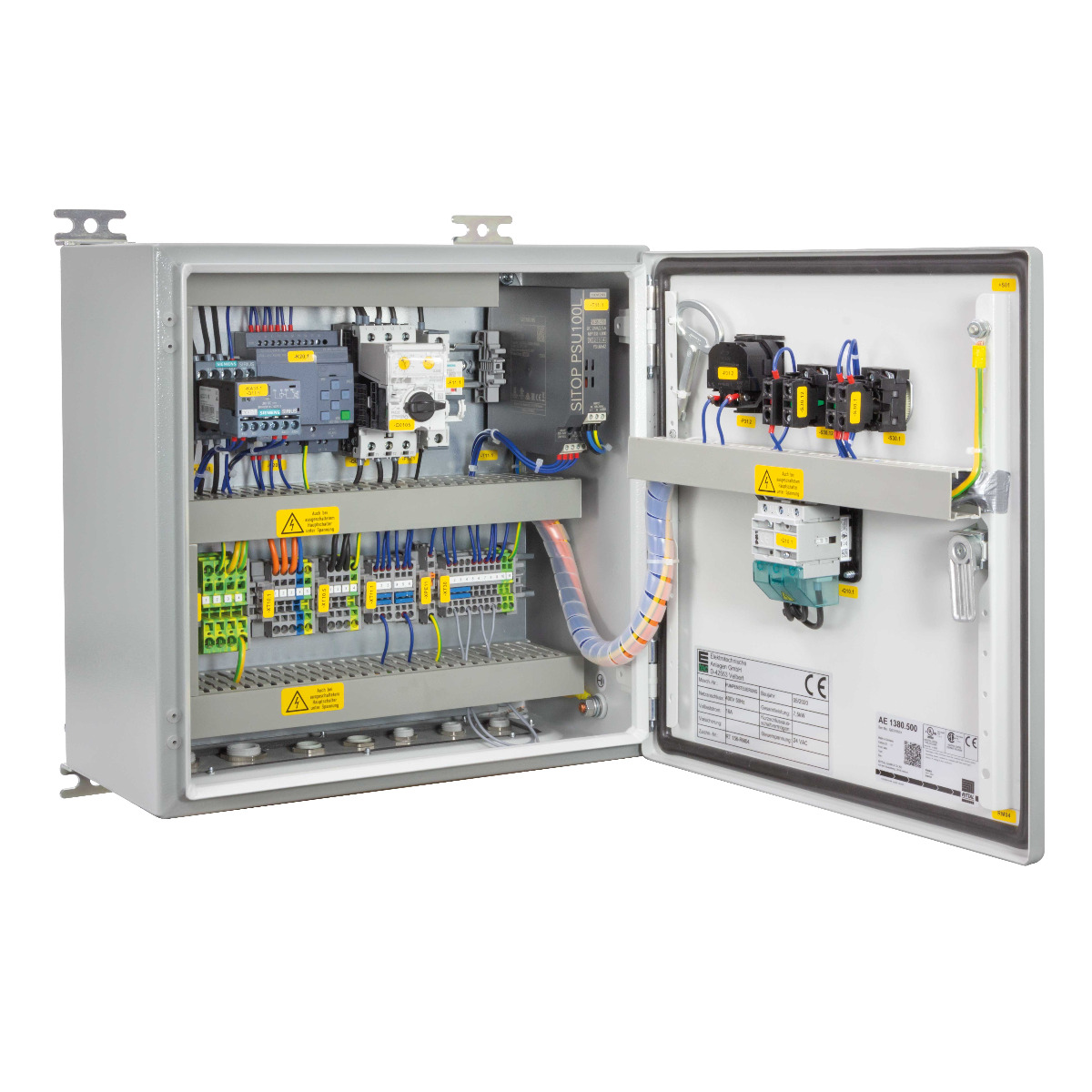

Supply 400 VAC, 50hz, 3Ph / N / PE with main switch (cam switch) 25A. Control voltage conditioning 24VDC, 2.5A with backup fuse 2A. Motor outlet with power contactor 7.5KW and wide-range motor protection switch 8-23A. This unit has one operating hours counter (IP 65) and two command and signaling devices built into the door.

Technical Spec

Voltage400 V
Dimensions - Height 380mm
- Width 380mm
- Depth 210mm
Weight14.00
