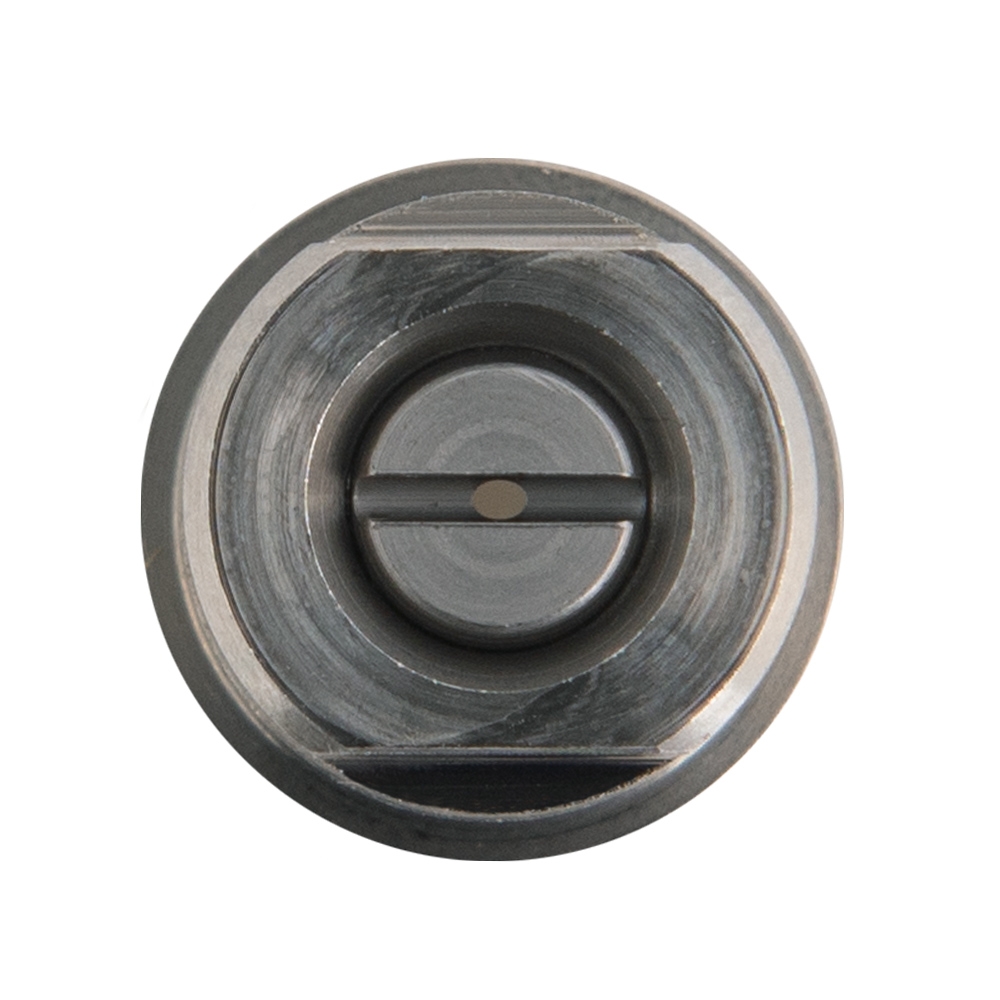

LECHLER HIGH PRESSURE NOZZLE, TIP NOZZLE, 4002

LECHLER HIGH PRESSURE NOZZLE, TIP NOZZLE, 4002

SKU

Description

Lechler tip nozzles are used in a wide range of industrial and agricultural applications for spraying liquids such as water, chemicals, fertilizers, and pesticides. These nozzles produce a fine spray pattern with consistent droplet size and distribution, making them ideal for precise and uniform application of liquids.

Technical Spec

Inlet Karcher TIP
Material Stainless Steel
Bar 275
Angle in Degrees° 40
Nozzle Diameter 02
Weight 0.01
Country of Origin Germany

Need help?

Contact G&S 01768 865985

Overview

Lechler High Pressure Tip Nozzle

The 40° spray angle produces a wide spray pattern and reasonably low pressure, making this nozzle a great option for pressure washing surfaces that can be easily damaged. Lechler nozzles are some of the highest quality high pressure nozzles available on the market. The company has over 140 years of experience in the industry.

Help with sizes

Interactive Nozzle selection chart.

If you know the flow and pressure of the machine you are working on, simply select your pressure along the top of the chart and move down until you reach your nearest flow rate. Click the box which has your flow rate and this will give you your required nozzle size.

Pressure
3 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 175 200 225 250 300 400 500
01 0,59 0,4 0,7 1,0 1,3 1,4 1,6 1,7 1,8 2,0 2,1 2,2 2,3 2,4 2,5 2,6 2,7 2,8 2,9 3,1 3,3 3,5 3,8 4,4 4,9
015 0,71 0,6 1,0 1,5 1,8 2,1 2,4 2,6 2,8 3,0 3,2 3,4 3,6 3,7 3,8 4,0 4,2 4,3 4,5 4,8 5,1 5,4 5,9 6,7 7,5
02 0,84 0,8 1,4 2,0 2,5 2,8 3,2 3,5 3,7 4,0 4,2 4,5 4,7 4,8 5,0 5,3 5,4 5,6 5,9 6,3 6,7 7,0 7,7 8,9 9,9
025 0,94 1,0 1,6 2,5 3,1 3,5 4,0 4,3 4,7 5,0 5,3 5,6 5,9 6,1 6,4 6,6 6,9 7,1 7,5 8,0 8,5 9,0 9,9 11,4 12,7
03 1,03 1,2 2,0 3,1 3,7 4,3 4,8 5,3 5,7 6,1 6,3 6,8 7,1 7,4 7,7 8,0 8,3 8,6 9,0 9,6 10,2 10,7 11,8 13,5 15,1
035 1,10 1,4 2,5 3,6 4,2 4,9 5,5 6,0 6,5 7,0 7,4 7,8 8,2 8,6 8,9 9,2 9,5 9,8 10,3 11,0 11,7 12,3 13,8 15,5 17,8
04 1,21 1,6 2,8 4,1 5,2 5,9 6,6 7,3 7,8 8,4 8,9 9,4 9,8 10,3 10,7 11,1 11,5 11,9 12,4 13,3 14,1 14,8 16,3 18,7 20,9
045 1,26 1,8 3,1 4,5 5,5 6,4 7,1 7,8 8,4 9,0 9,6 10,2 10,5 10,9 11,4 11,8 12,2 12,6 13,2 14,1 15,0 15,8 17,4 19,9 22,3
05 1,33 2,0 3,5 5,1 6,2 7,1 8,0 8,7 9,4 10,0 10,7 11,3 11,8 12,4 12,9 13,4 13,8 14,3 14,9 16,0 16,9 17,9 19,7 22,6 25,3
055 1,39 2,2 3,7 5,6 6,8 7,8 8,7 9,6 10,3 11,1 11,8 12,4 13,0 13,6 14,1 14,7 15,2 15,7 16,4 17,5 18,6 19,6 21,7 25,0 28,0
06 1,46 2,4 4,1 6,1 7,4 8,6 9,6 10,4 11,3 12,1 12,8 13,6 14,3 14,9 15,5 16,0 16,7 17,2 18,0 19,2 20,4 21,5 23,7 27,1 30,3
065 1,52 2,6 4,3 6,6 8,0 9,3 10,4 11,3 12,3 13,2 14,0 14,7 15,4 16,1 16,8 17,4 18,0 18,6 19,4 20,8 22,0 23,2 25,6 29,3 32,7
07 1,57 2,8 5,0 7,1 8,6 10,0 11,2 12,2 13,2 14,1 15,0 15,8 16,6 17,3 18,0 18,7 19,3 20,0 20,9 22,3 23,7 25,0 27,1 31,3 35,0
075 1,63 3,0 5,3 7,6 9,3 10,7 12,0 13,1 14,2 15,2 16,1 16,9 17,7 18,5 19,3 20,0 20,7 21,4 22,4 23,9 25,3 26,7 29,4 33,7 37,7
08 1,68 3,2 5,6 8,2 9,8 11,3 12,7 14,0 15,1 16,1 17,1 18,0 18,9 19,7 20,5 21,3 22,0 22,8 23,8 25,5 27,0 28,5 31,4 35,9 40,2
085 1,73 3,4 6,0 8,7 10,4 12,1 13,5 14,8 16,0 17,1 18,1 19,1 20,0 20,9 21,8 22,6 23,4 24,1 25,3 27,0 28,6 30,2 34,5 39,8 44,5
09 1,78 3,6 6,5 9,2 11,1 12,8 14,3 15,7 17,0 18,0 19,2 20,2 21,2 22,1 23,0 23,9 24,7 25,5 26,7 28,6 30,3 31,9 35,1 40,2 45,0
10 1,88 3,9 7,0 10,2 12,3 14,2 16,0 17,4 18,9 20,1 21,4 22,5 23,6 24,6 25,6 26,6 27,6 28,5 29,8 31,8 33,7 35,6 39,2 44,9 50,2
11 1,96 4,3 7,8 11,2 13,4 15,5 17,3 19,0 20,5 22,0 23,3 24,5 25,7 26,9 28,0 29,1 30,1 31,1 32,5 34,7 36,8 38,8 43,4 50,1 56,0
12 2,05, 4,7 8,4 12,3 14,6 16,9 18,9 20,8 22,4 24,0 25,4 26,8 28,1 29,4 30,6 31,7 32,8 33,9 35,4 37,9 40,2 42,4 46,7 53,4 59,8
13 2,13 5,1 9,5 13,3 15,9 18,3 20,5 22,5 24,3 26,0 27,5 29,0 30,4 31,8 33,1 34,4 35,6 36,7 38,4 41,1 43,6 45,9 50,5 57,8 64,7
14 2,21 5,5 10,2 14,3 17,1 19,7 22,1 24,2 26,1 28,0 29,6 31,3 32,8 34,2 35,6 37,0 38,3 39,5 41,4 44,3 46,9 49,4 55,0 63,5 71,0
15 2,30 5,9 10,8 15,3 18,5 21,3 23,9 26,1 28,3 30,2 32,1 33,8 35,3 36,9 38,4 39,9 41,3 42,6 44,6 47,7 50,6 53,3 58,7 67,2 75,2
20 2,66 7,9 14,0 20,5 24,7 28,5 31,9 34,9 37,8 40,3 42,7 45,1 47,2 49,3 51,3 53,2 55,1 56,9 59,5 63,6 67,5 71,1 78,2 89,6 100,0
30 3,25 11,8 21,1 31,0 37,0 42,7 47,8 52,4 56,6 60,5 64,2 67,6 70,9 74,0 77,1 80,0 82,8 85,5 89,4 95,6 101,0 107,0 118,0 149,0 151,0
40 3,76 15,8 28,0 41,0 49,4 57,0 63,7 69,8 75,4 80,7 85,5 90,2 94,6 98,8 103,0 107,0 110,0 114,0 119,0 127,0 135,0 143,0 157,0 198,0 202,0
50 4,28 19,7 35,3 51,0 61,5 71,0 80,0 87,0 94,5 102,5 107,0 112,5 118,0 123,0 128,0 133,0 138,0 142,5 149,0 159,0 168,5 178,0 196,0 224,5 251,0
