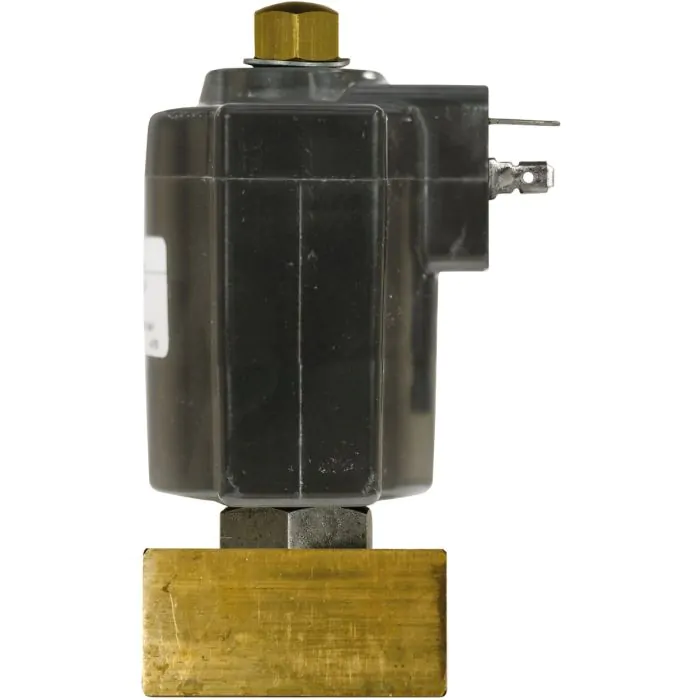

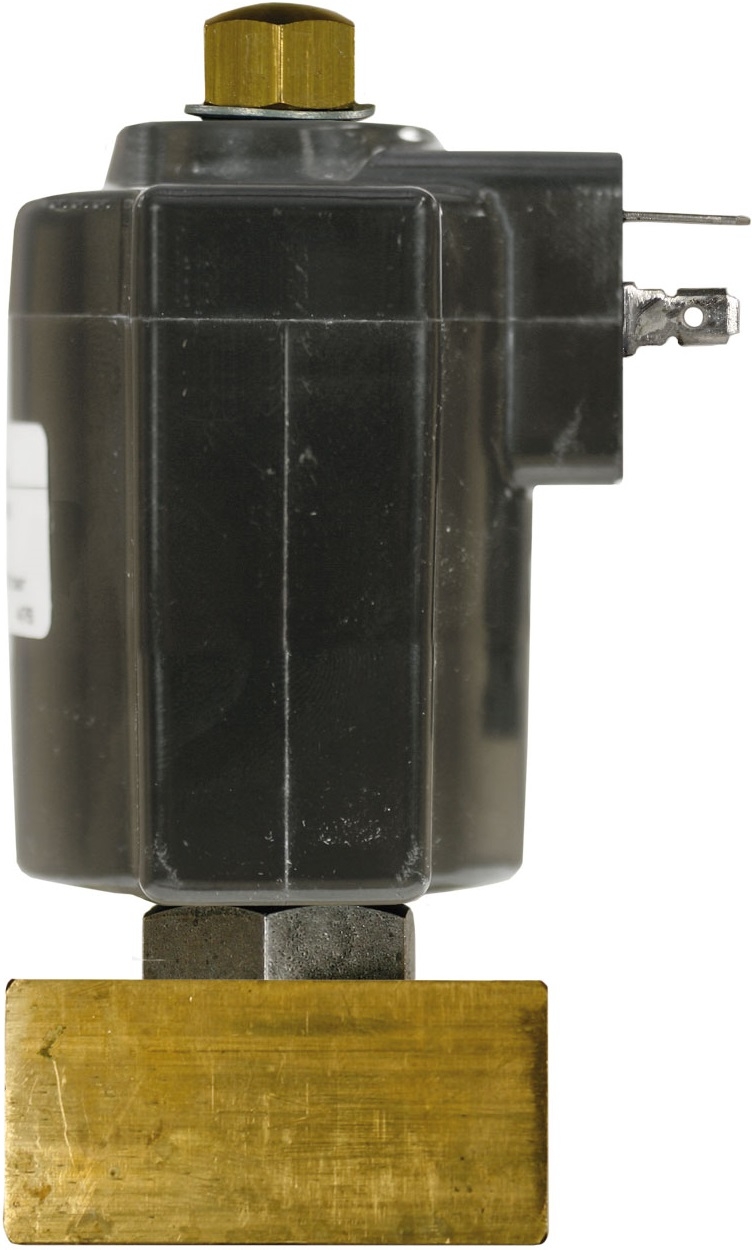

AK 24v 50hz SOLENOID VALVE 1.2MM AC
SKU
83315
Description
The solenoid valve operates through an electromagnetic mechanism. When an electric current is applied to the solenoid coil, it creates a magnetic field that actuates a plunger or a diaphragm, opening or closing the valve. This allows for remote and automated control of fluid flow. They are constructed using robust materials such as stainless steel or brass, and they incorporate seals and components capable of withstanding high-pressure environments.
Technical Spec
| Inlet | 1/4" Female |
|---|---|
| Outlet | 1/4" Female |
| Voltage | 24 V |
| Bar | 180 |
| Colour | Black |
| Max Temp °C | 90 |
| Dimensions | - Height 109mm |
| Commodity Code | 8481807990 |
| Weight | 0.80 |
| Country of Origin | Germany |
Need help?
Contact G&S 01768 865985
Related Products
AK 230v SOLENOID VALVE 1.2MM AC
Product Code:
83300
BURKERT SOLENOID CONNECTOR
Product Code:
83350
AK 24v SOLENOID VALVE DC
Product Code:
83310
Overview
High Pressure Solenoid Valve - pressure range 0 - 180 bar 24V 50HZ
A solenoid valve is used to convert electrical energy into mechanical energy. This valve enables engineers to autonomously and remotley control the flow of fluid within a system. The coil within the solenoid is used to operate the valve by passing an electrical current through it. Systems can run much more efficiently and safely without the need for engineers to physically open and close valves. Solenoid valves are found in many industrial applications, such as production lines to control the flow and mixing of fluids.
