CAMLOCK TYPE C COUPLING x 2" HT PP
Description
Polypropelyne camlock fittings are versatile, durable connectors commonly used in industrial and commercial applications that require secure, quick, and reliable fluid transfer. They feature a cam and groove mechanism, allowing for easy, tool-free connection and disconnection. Commonly used in hoses, pipelines, and tanks, camlock fittings are popular for applications such as transferring water, chemicals, oils, and other liquids.
Technical Spec
| Material | Polypropylene |
|---|---|
| Bar | 17 |
| Max Temp °C | 60 |
| Commodity Code | 7307291090 |
| Country of Origin | China |
Need help?
Contact G&S 01768 865985
Overview
Camlock tool free connection.
A camlock fitting, also known as a cam and groove coupling, is a type of quick-connect fitting commonly used in industries for the safe and efficient transfer of liquids, gases, and powders. It consists of two parts: a male adapter and a female coupler. The male adapter has grooves, while the female coupler features cam arms and latches. To connect the two parts, the cam arms are lifted, the adapter is inserted into the coupler, and then the arms are pressed down to securely lock them in place. This mechanism allows for quick, tool-free connection and disconnection, making camlock fittings ideal for applications requiring frequent or fast hose and pipe changes, such as in the chemical, agricultural, food processing, and water treatment industries.
| Available in brass or aluminium and other sizes on request. | |
|---|---|

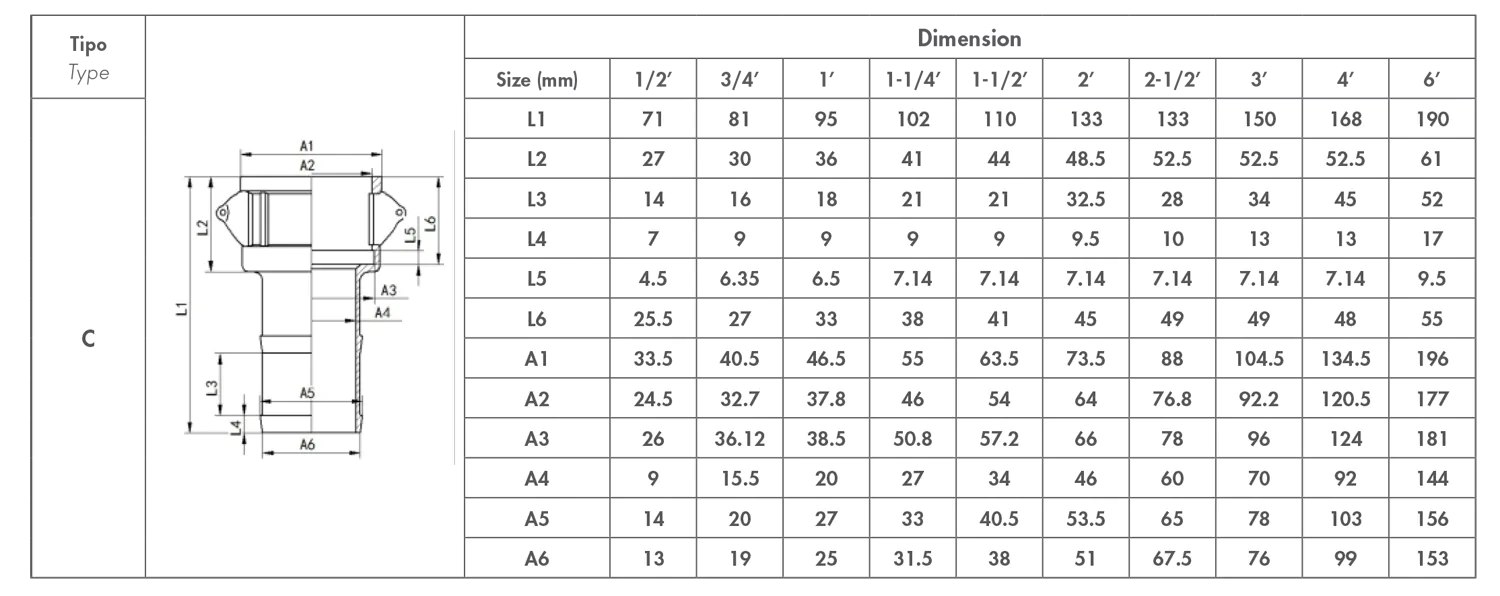

| DN (mm) | Size |
| 13 | 1/2" |
| 20 | 3/4" |
| 25 | 1" |
| 32 | 1-1/4" |
| 40 | 1-1/2" |
| 50 | 2" |
| 65 | 2-1/2" |
| 80 | 3" |
| 100 | 4" |
| 125 | 5" |
| 125 | 5" |
| 150 | 6" |
| 200 | 8" |
Camlock fittings offer several benefits that make them highly popular for industrial, commercial, and agricultural applications. Here are some of the key advantages:
1. Quick and Easy Connection/Disconnection:
- Tool-free operation: Camlock fittings are designed for easy, quick connections without the need for special tools. The cam arms simply need to be lifted, the male adapter inserted into the female coupler, and the cams latched down to secure the connection.
2. Durability and Corrosion Resistance:
- Material options: Camlock fittings come in various materials, including stainless steel, brass, aluminum, and plastic. Stainless steel and brass variants, in particular, are highly resistant to corrosion and rust, making them ideal for use in harsh environments and industries like chemicals, food processing, and water treatment.
3. Leak-proof and Secure:
- Strong sealing: The design of camlock fittings provides a tight, secure seal, reducing the risk of leaks. The cam arms apply significant pressure, ensuring that the connection remains intact, even under high pressure or during fluid transfer.
4. Versatility:
- Wide range of uses: Camlock fittings are available in many sizes and materials, allowing them to be used in a variety of applications such as fuel transfer, water systems, chemical handling, and agriculture. They can handle liquids, powders, and gases, making them versatile for different industries.
5. Reduced Downtime:
- Fast and easy disconnection: Since the fittings can be connected and disconnected quickly, downtime during maintenance or fluid transfer is minimised, improving workflow efficiency.
6. Safety:
- No risk of accidental disengagement: The latch system of camlock fittings ensures that they stay securely in place once connected. This reduces the chances of accidental disconnection, preventing spills or accidents during operation.
7. Cost-effective:
- Affordable: Compared to some other types of couplings or connectors, camlock fittings are often more affordable and provide excellent performance for the price.
8. Low Maintenance:
- Long-lasting: With the right material, camlock fittings require minimal maintenance and are highly durable, even in rugged environments, thus reducing the need for frequent replacements.
These benefits make camlock fittings an excellent choice for industries requiring secure, fast, and efficient connections for fluid or material handling.
