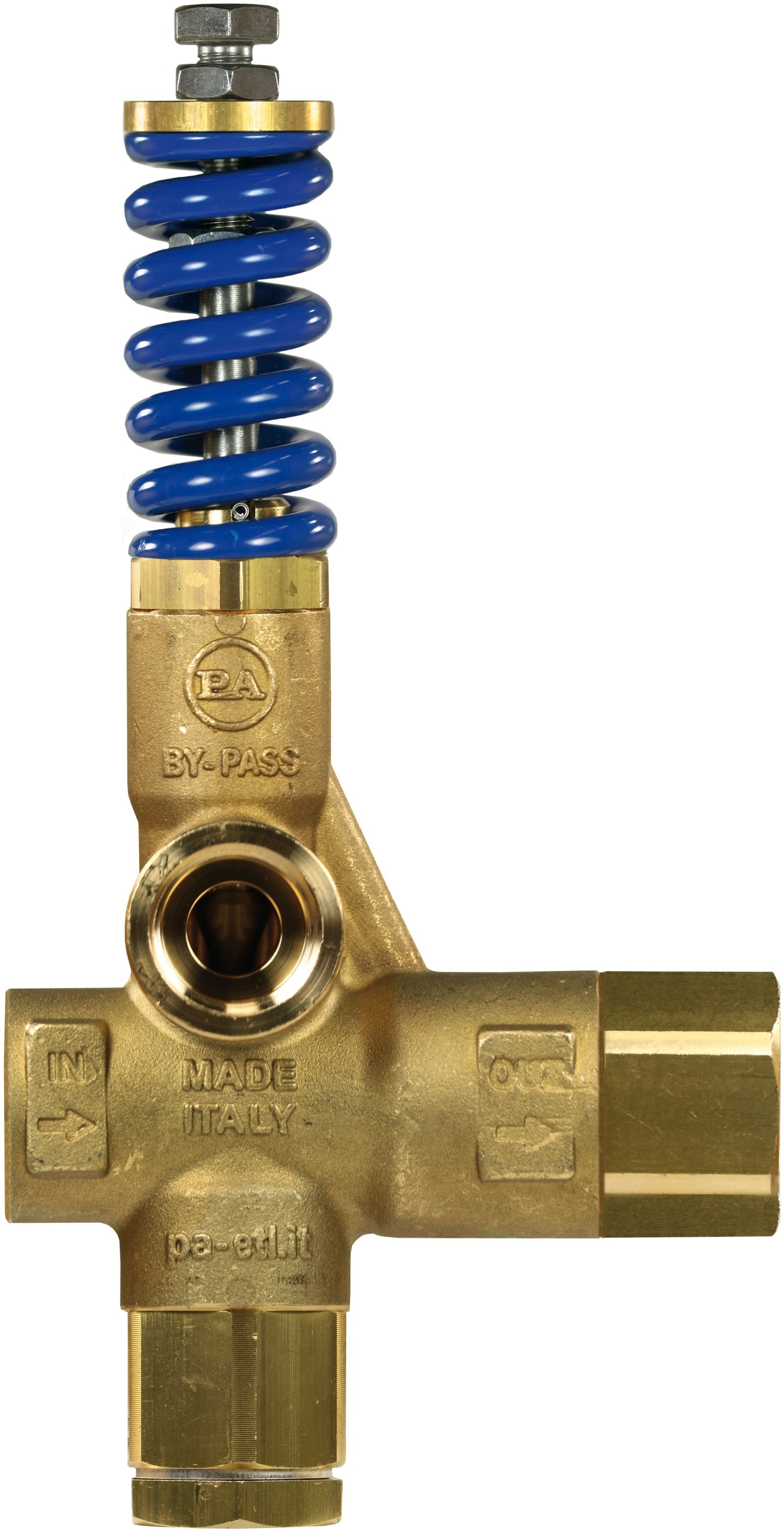

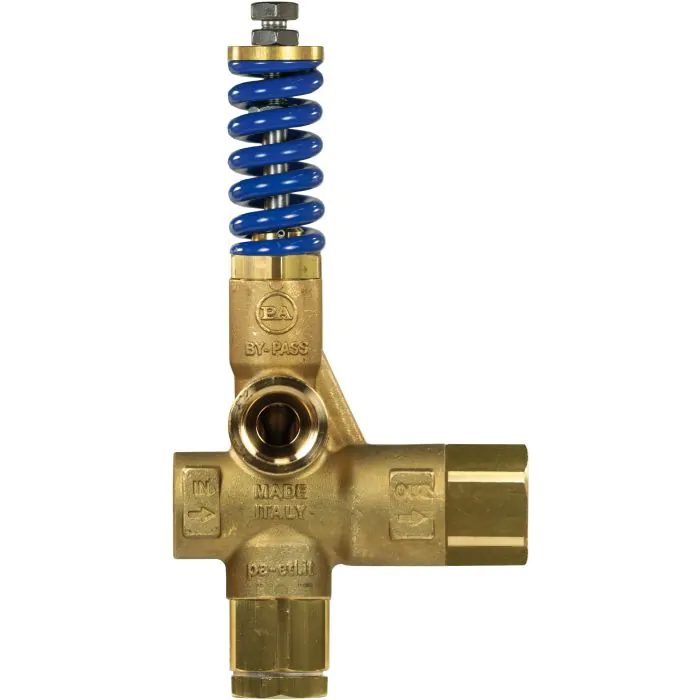

VB85 UNLOADER VALVE 280 BAR
SKU
GSVB85
Description
Inlet:1/2" F
Outlet:1/2" F
Max Press:280 Bar
Max Temp:90°C
Max Flow:80: L/Min
Technical Spec
Inlet | 1/2" Female |
---|---|
Outlet | 1/2" Female |
Material | Brass |
Bar | 280 |
Colour | Blue |
Max Temp °C | 90 |
Weight | 1.18 |
Country of Origin | Italy |
Datasheets
Need help?
Contact G&S 01768 865985
Overview
Vb85 unloader valve 280 bar.
Dynamic seals made up of O-ring and runner in Teflon.
Optimised internal passages that guarantee reduced pressure loss.
Anti-rotation device of the piston positioned inside the valve and obtained by an hexagonal sector of the piston itself.
O-rings of the fittings positioned upstream to the thread : no risk of fittings ejected in case of over pressure.
Double feed connection.
Version with knob fitted with lock-nut for minimum working pressure adjustment.
