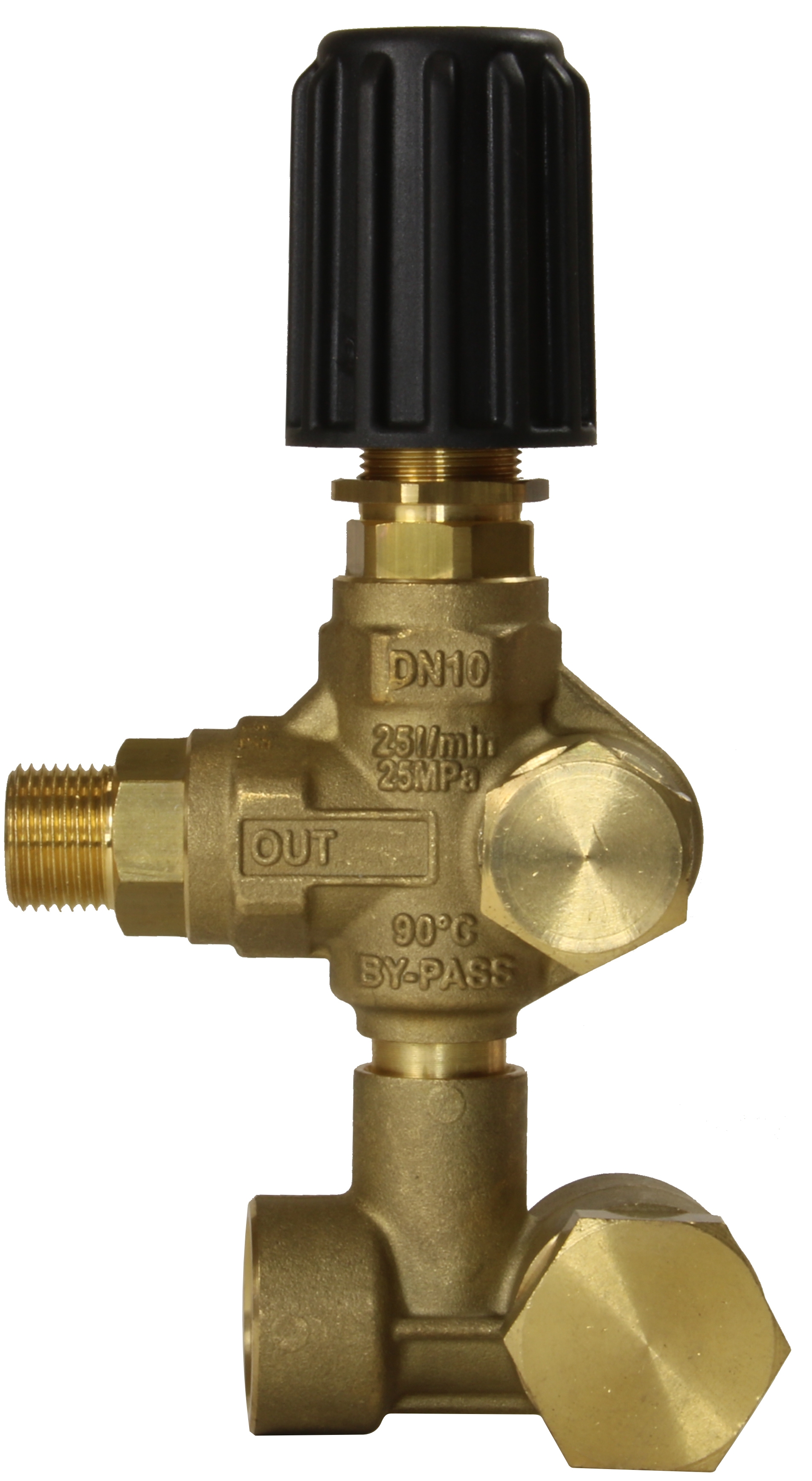

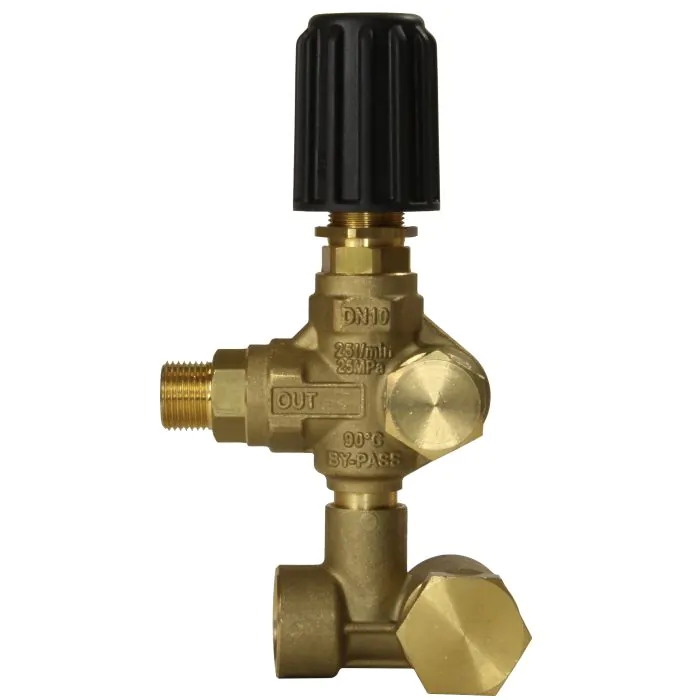

VB35 UNLOADER VALVE UB17 FITS PNC SERIES
SKU
171063666
Description
Inlet: 3/8" M
Outlet: 3/8" M
Bypass: 1/2" M
Max Press: 250 Bar
Max Flow: 25 L/Min
Max Temp: 90°C
Technical Spec
| Inlet | 3/8" Male |
|---|---|
| Outlet | 3/8" Male |
| Material | Brass |
| Bar | 250 |
| Commodity Code | 8481805940 |
| Weight | 0.69 |
| Country of Origin | Italy |
Datasheets
-
171063666 Technical Specification Download
Need help?
Contact G&S 01768 865985
Related Products
UDOR PUMP PNC0410S
Product Code:
PNC0410S
UDOR PUMP PNC0911s
Product Code:
PNC0911s
UDOR PUMP PNC1312s
Product Code:
171013120
UDOR PUMP PNC0610S
Product Code:
PNC0610s
UDOR PUMP PNC1111s
Product Code:
PNC1111s
Overview
UDOR Unloader Valve UB17 fits PNC
Direct fitting to the pump by means of two hollow screws - Sturdy steel and brass construction - Adjustable locknut to control the max pressure - Easy maintenance - Hexagonal shaped check valve to avoid jamming. - Possibility to fit a venturi injector, on delivery, for chemicals.
