SAFETY-VALVE ST-230 500BAR
Description

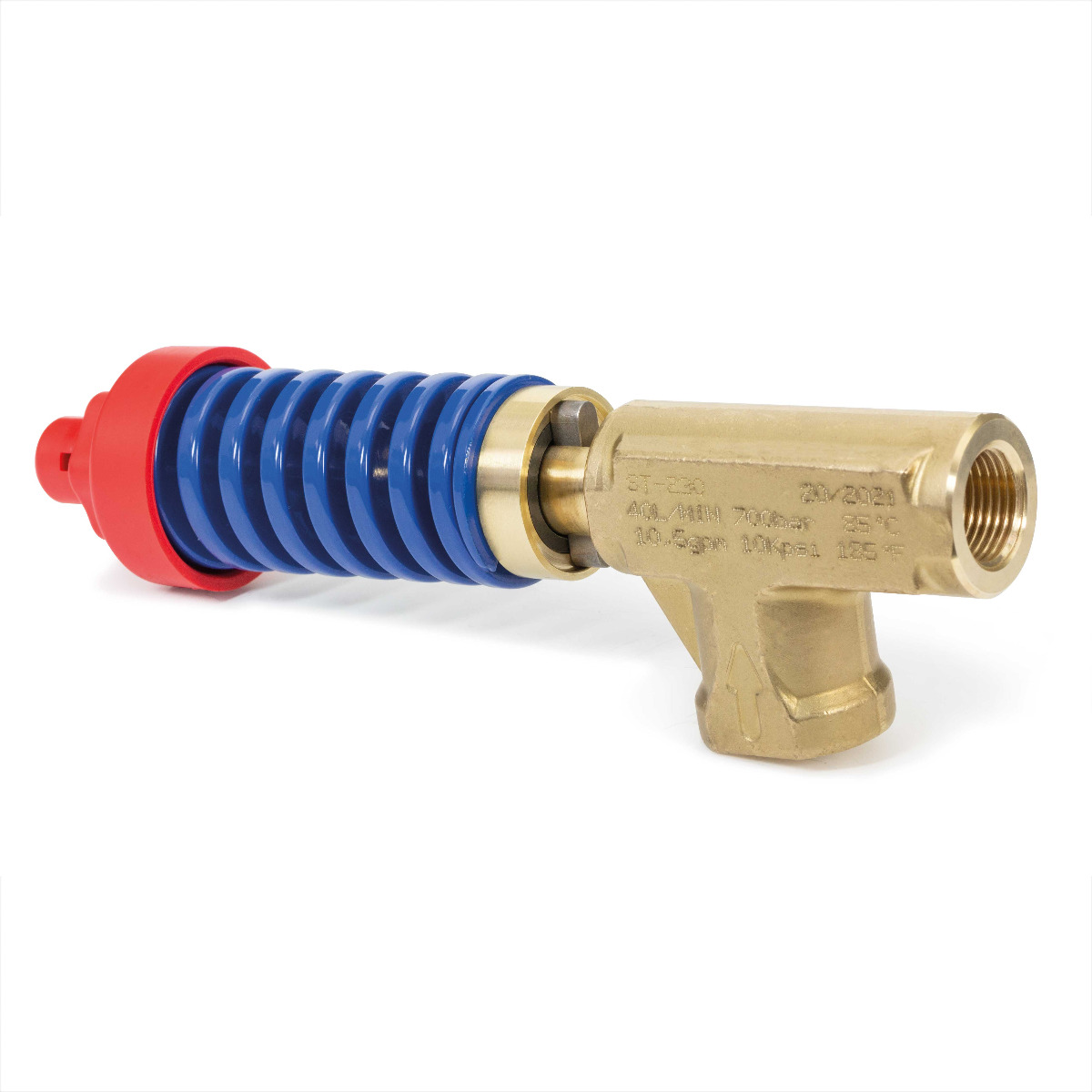

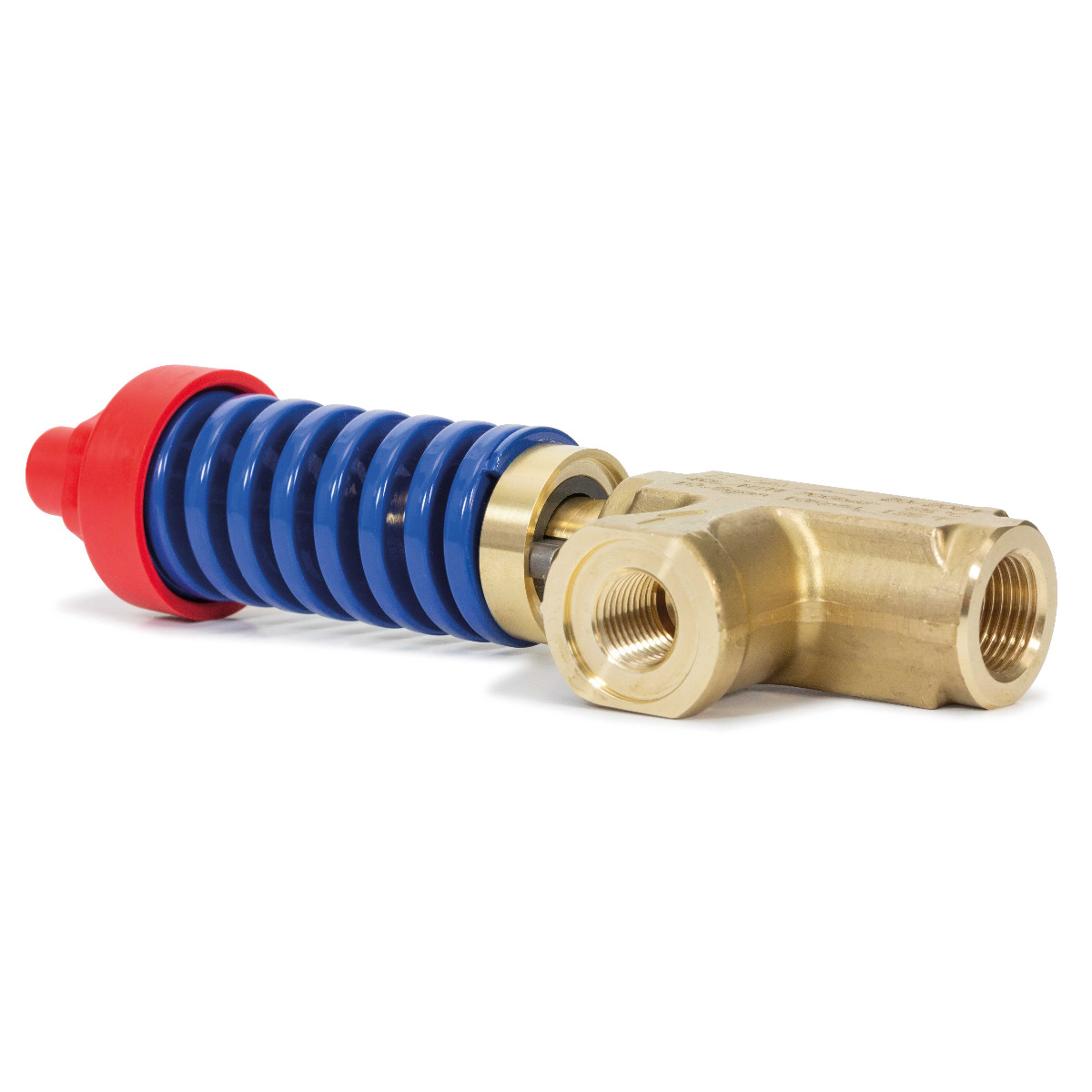

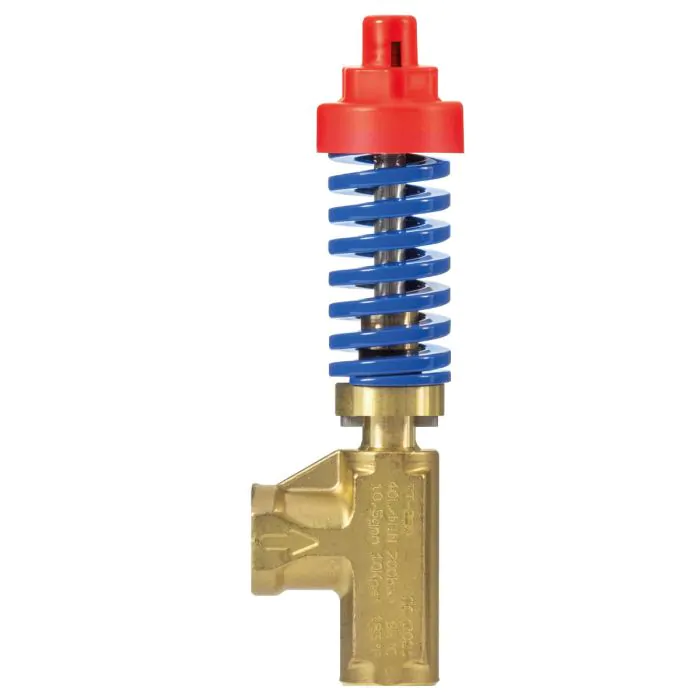

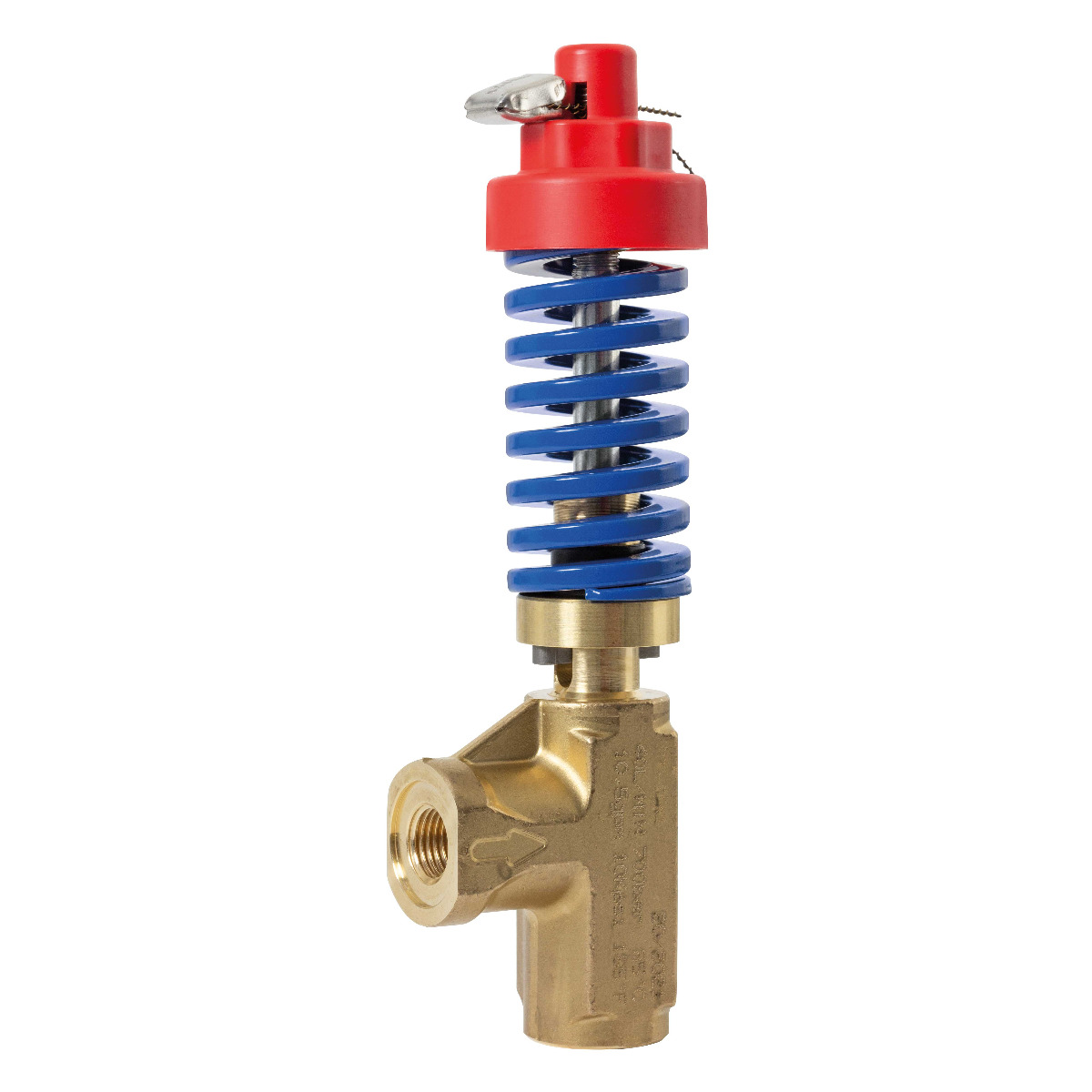

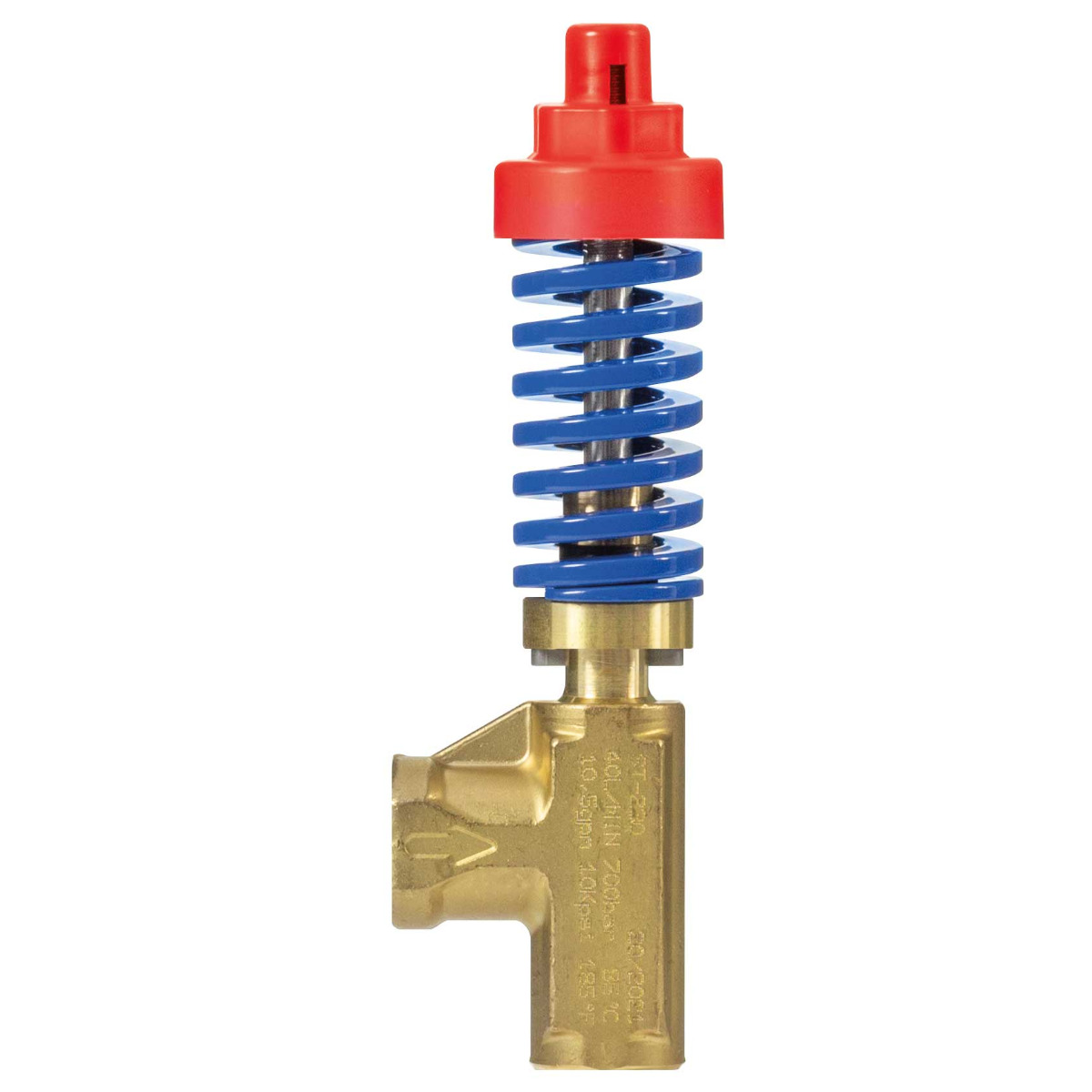

RM Suttner ST230 safety relief valve. This valve has a 1/4" female inlet and 3/8" female outlet. The valves maximum flow rate is 40l/pm.
Technical Spec
Inlet | 1/4" Female |
---|---|
Outlet | 3/8" Female |
Max LPM | 40 LPM |
Material | Brass |
Bar | 500 |
Max Temp °C | 85 |
Weight | 0.39 |
Country of Origin | Germany |
Datasheets
