UDOR PUMP PKWTC 15/20S 15L
Description
PKWT series - High water temperature 85°C - Udor pumps produce a flow from 11 to 15 l/m and operate at a maximum of 150 bar. These pumps are driven by electric or hydraulic motors and by diesel engines, suitable for car-wash, pressure washing, food and pharmaceutical industries. Udor pumps recommend performing an oil change after the first 50 hours of use and every 500 hours after that, valve and piston rings should be changed after every 1000 hours of use.
Technical Spec
| Inlet | 1/2" Female |
|---|---|
| Outlet | 3/8" Female |
| Max LPM | 15 LPM |
| Bar | 200 |
| RPM | 1450 RPM |
| Max Temp °C | 85 |
| Commodity Code | 8413506990 |
| Weight | 9.10 |
| Country of Origin | Italy |
Datasheets
-
PKWTC 1520S Exploded Diagram Download
Need help?
Contact G&S 01768 865985
Overview

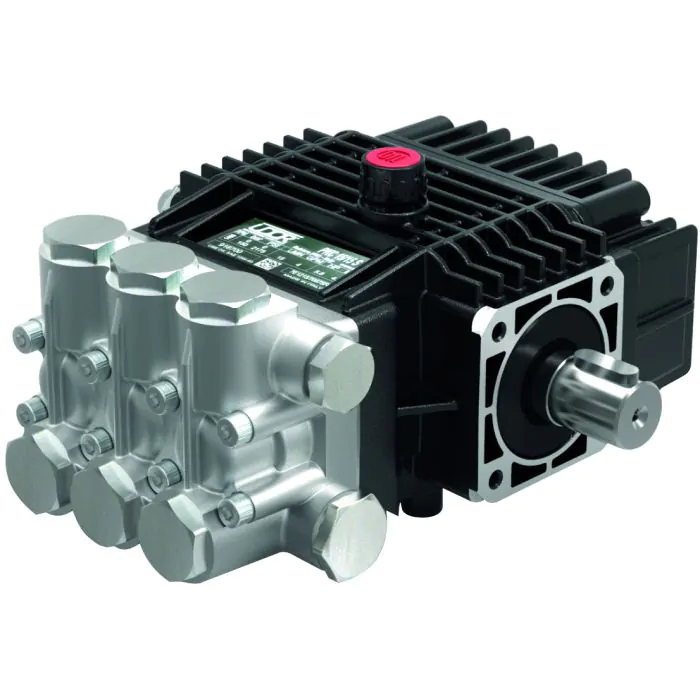

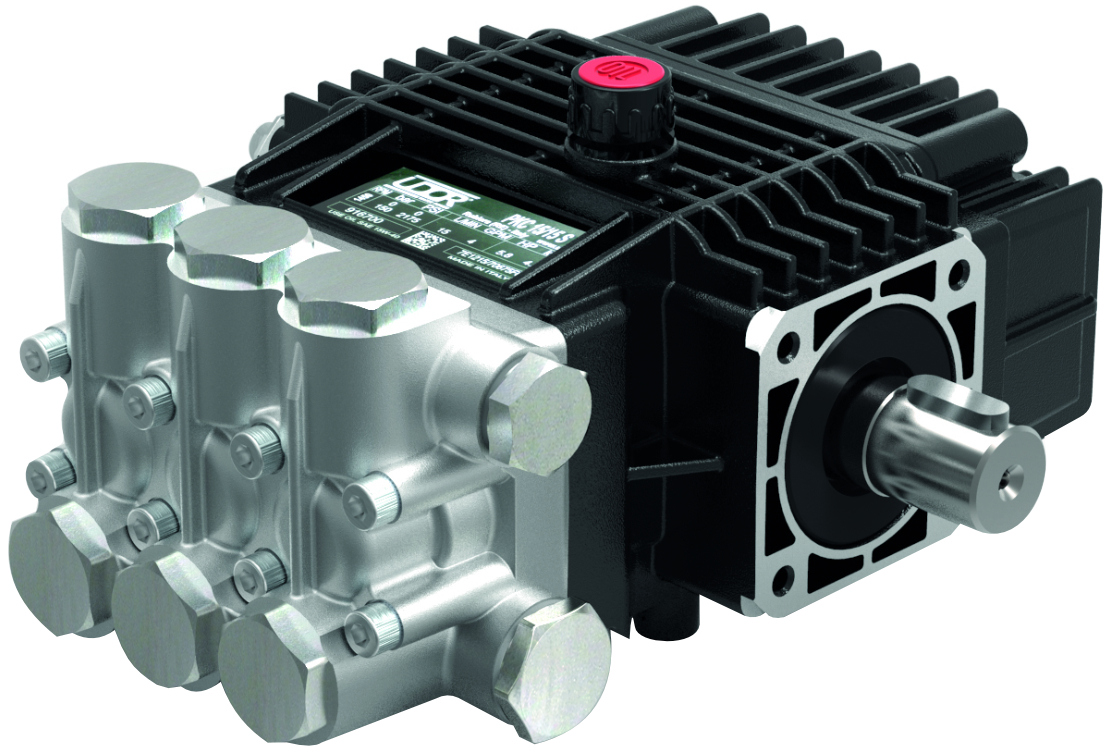

Udor Pump PKWTC15/20s
Udor pumps of the PKWT- high water temperature 85°C series are suitable for car wash, pressure washing, food and pharmaceutical industries. Udor pumps can be driven by electric or hydraulic motors and diesel engines.
UDOR was founded in 1966, today it develops, manufactures, markets, supplies and services diaphragm pumps and plunger pumps for pumping water, including chemical-added water. Production now covers over 150 models of Plunger Pumps (from 3 to 6 cylinders). UDOR pumps are designed to ensure reliability and long life. Constantly improving products to guarantee quality and upgrade performance. UDOR pumps are developed to be incorporated into various kinds of pumping systems such as: Agricultural Sprayers, High Pressure Washers, Water Cleaners, Fire Fighting Systems, Deicing Equipment, Reverse Osmosis systems, Misting equipment, Lawn Care Sprayers and others. The UDOR organisation complies with the requirements of ISO-9001.
Udor Pumps recommend the following service is performed on your pump:
Oil change: After first 50 hours
Oil change: Every 500 hours
Valve and piston seal rings change: Every 1000 hours
Udor PKWTC15/20s
- Flow (lpm): 15
- Pressure 200 bar
- RPM 1450
- Minimum required HP 5.5
- Shaft Size 24 mm
- Inlet/Outlet 1/2"F - 3/8"F
PKWTC Series pages 220 - 221
