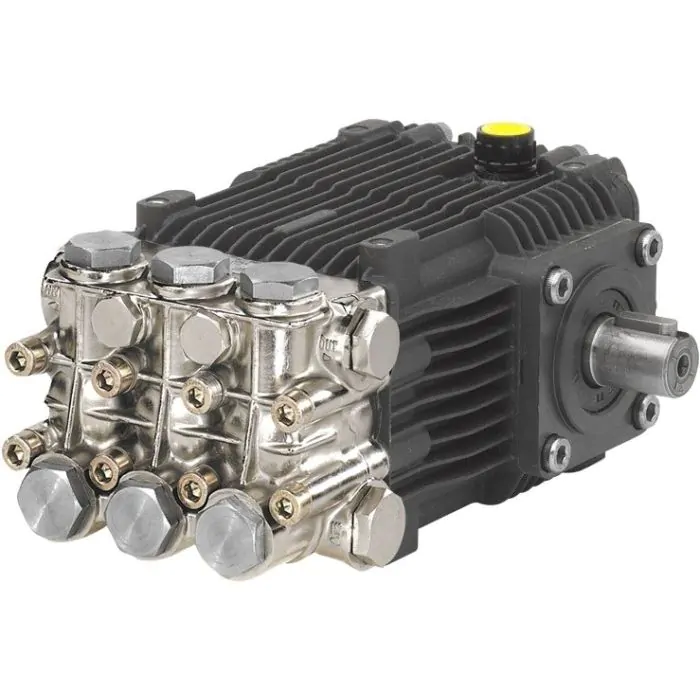

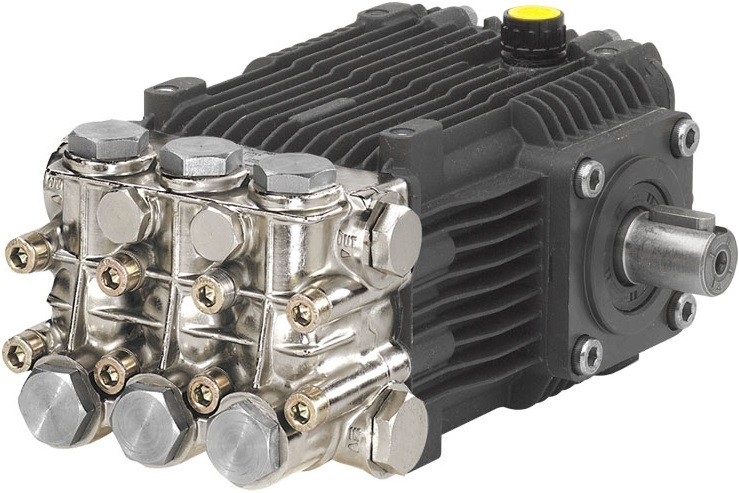

ANNOVI REVERBERI PUMP RK 18.20 HN 200 BAR

ANNOVI REVERBERI PUMP RK 18.20 HN 200 BAR

SKU

Description

Flow: 18 LPM Pressure: 200 BAR RPM: 1450 Wattage: 7.5 Kw Shaft: 24mm Inlet: 1/2" Female Outlet: 3/8" Female

Technical Spec

Inlet1/2" Female
Outlet3/8" Female
Max LPM18 LPM
Bar200
RPM1450 RPM
Weight9.41
Country of OriginItaly

Datasheets

Need help?

Contact G&S 01768 865985

Overview

Alternative volumetric pump with 3 pistons for use on washing units and industrial systems. Pump body and covers in die-cast aluminium alloy. Rear cover with oil drain and oil level. Plug with dipstick for oil level on pump body. Movement of the pistons realised through the system of the connecting rod - crank. Pump shaft in moulded high-strength steel. Oversized main bearings. Connecting rods in bronze. Full ceramic pistons. Pump head in nickel-plated brass. Double seal sealing system. Valve plugs for both suction and delivery for better maintenance.
