ST860 WASH GUN
Description

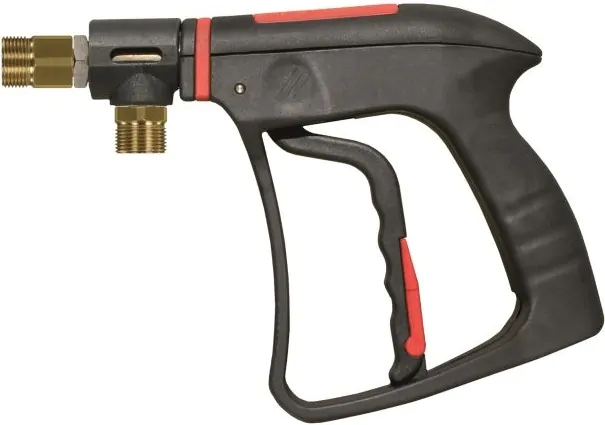

The Suttner ST860 high-pressure wash gun with PA Sealing Seat and PEEK Valve Body is a durable and reliable wash gun designed for high-pressure applications in industrial environments. The PEEK valve makes this wash gun extremely resistant to corrosive chemicals and tolerant of high temperatures.
Technical Spec
| Inlet | M22 Male |
|---|---|
| Outlet | M22 Male |
| Max LPM | 30 LPM |
| Bar | 210 |
| Max Temp °C | 100 |
| Commodity Code | 8424200000 |
| Weight | 0.16 |
| Country of Origin | Germany |
Datasheets
Need help?
Contact G&S 01768 865985
Overview

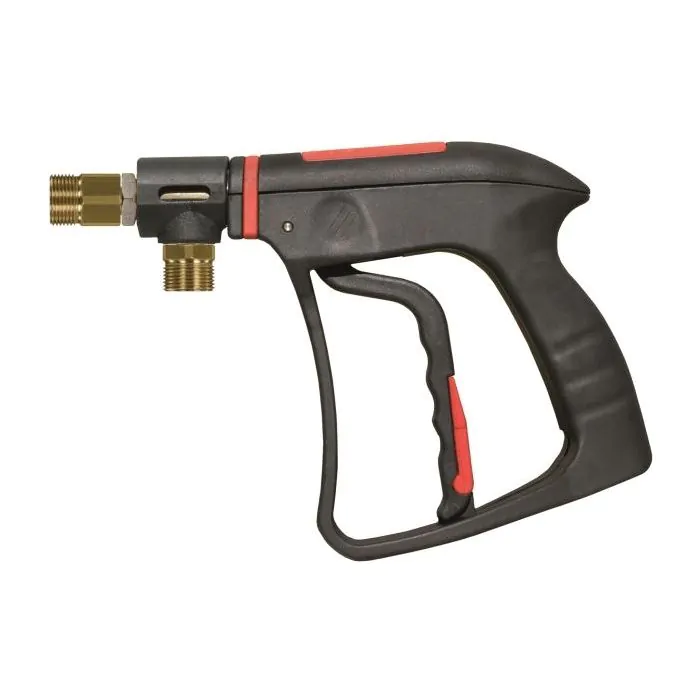

ST860 Wash Gun with PEEK piston.
The Suttner High-Pressure Spray Gun with PA Sealing Seat and PEEK Valve Body is a durable and reliable wash gun designed for high-pressure applications in industrial environments.
Key Features:
-
PA (Polyamide) Sealing Seat: Ensures a tight, leak-proof seal for long-lasting performance.
-
PEEK (Polyether Ether Ketone) Valve Body: Highly resistant to chemicals, heat, and wear. Reducing wear and tear, extends the lifespan of the wash gun.
-
High-Pressure Capability: Designed to handle pressures up to 210 bar, suitable for heavy duty cleaning tasks.
-
Ergonomic Design: Comfortable trigger action reduces fatigue during extended use.
-
Versatile Applications: Compatible with hot and cold water systems.
Wash Gun Opening/Holding forces
- Opening Force: 38N @ 100 bar
- Holding Force: 20N @ 100 bar
