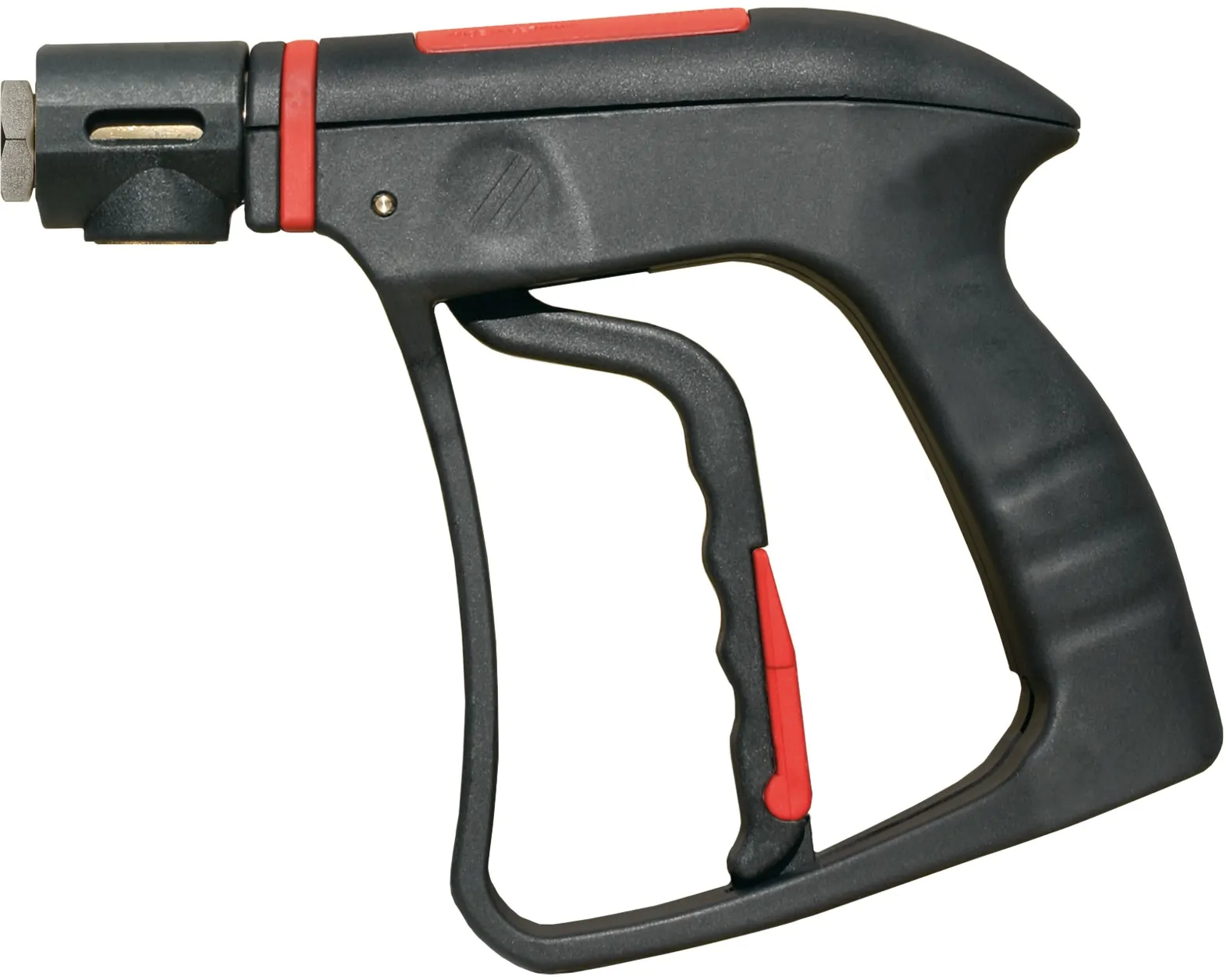

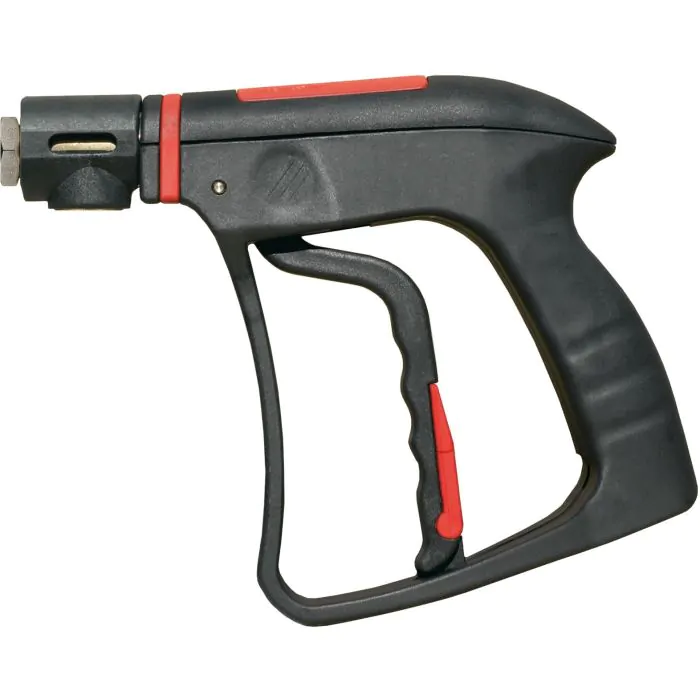

ST860 WASH GUN 1/4"F X1/4"F 210BAR
Description
The Suttner ST860 high-pressure wash gun with PA Sealing Seat and PEEK Valve Body is a durable and reliable wash gun designed for high-pressure applications in industrial environments. The PEEK valve makes this wash gun extremely resistant to corrosive chemicals and tolerant of high temperatures.
Â
Technical Spec
| Inlet | 1/4" Female |
|---|---|
| Outlet | 1/4" Female |
| Max LPM | 30 LPM |
| Bar | 210 |
| Max Temp °C | 80 |
| Commodity Code | 8424200000 |
| Weight | 0.11 |
| Country of Origin | Germany |
Datasheets
-
200860500 Spare Parts Download
Need help?
Contact G&S 01768 865985
Overview
ST860 Wash Gun with PEEK piston.
The Suttner High-Pressure Spray Gun with PA Sealing Seat and PEEK Valve Body is a durable and reliable cleaning tool designed for high-pressure applications in industrial environments.
Key Features:
-
PA (Polyamide) Sealing Seat: Ensures a tight, leak-proof seal for long-lasting performance.
-
PEEK (Polyether Ether Ketone) Valve Body: Highly resistant to chemicals, heat, and wear. Reducing wear and tear, extends the lifespan of the wash gun.
-
High-Pressure Capability: Designed to handle pressures up to 210 bar, suitable for heavy duty cleaning tasks.
-
Ergonomic Design: Comfortable trigger action reduces fatigue during extended use.
-
Versatile Applications: Compatible with hot and cold water systems.
Wash Gun Opening/Holding forces
- Opening Force: 38N @ 100 bar
- Holding Force: 20N @ 100 bar
