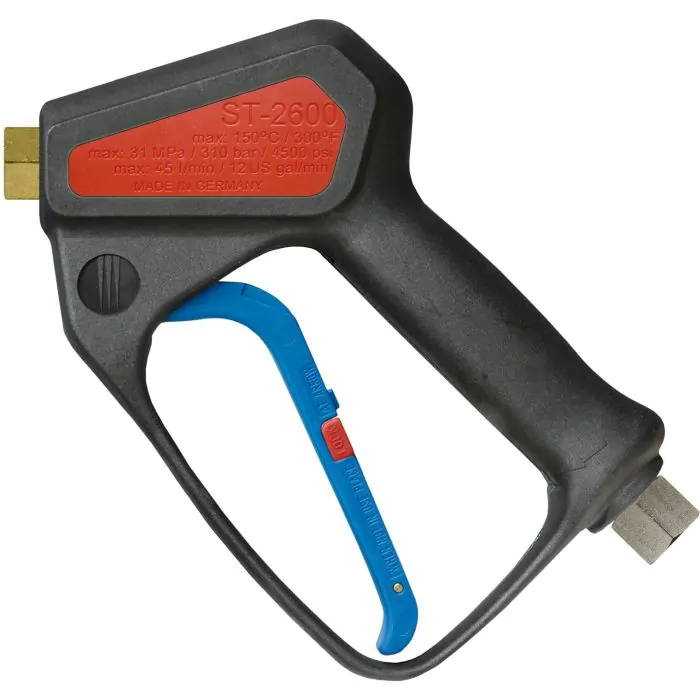

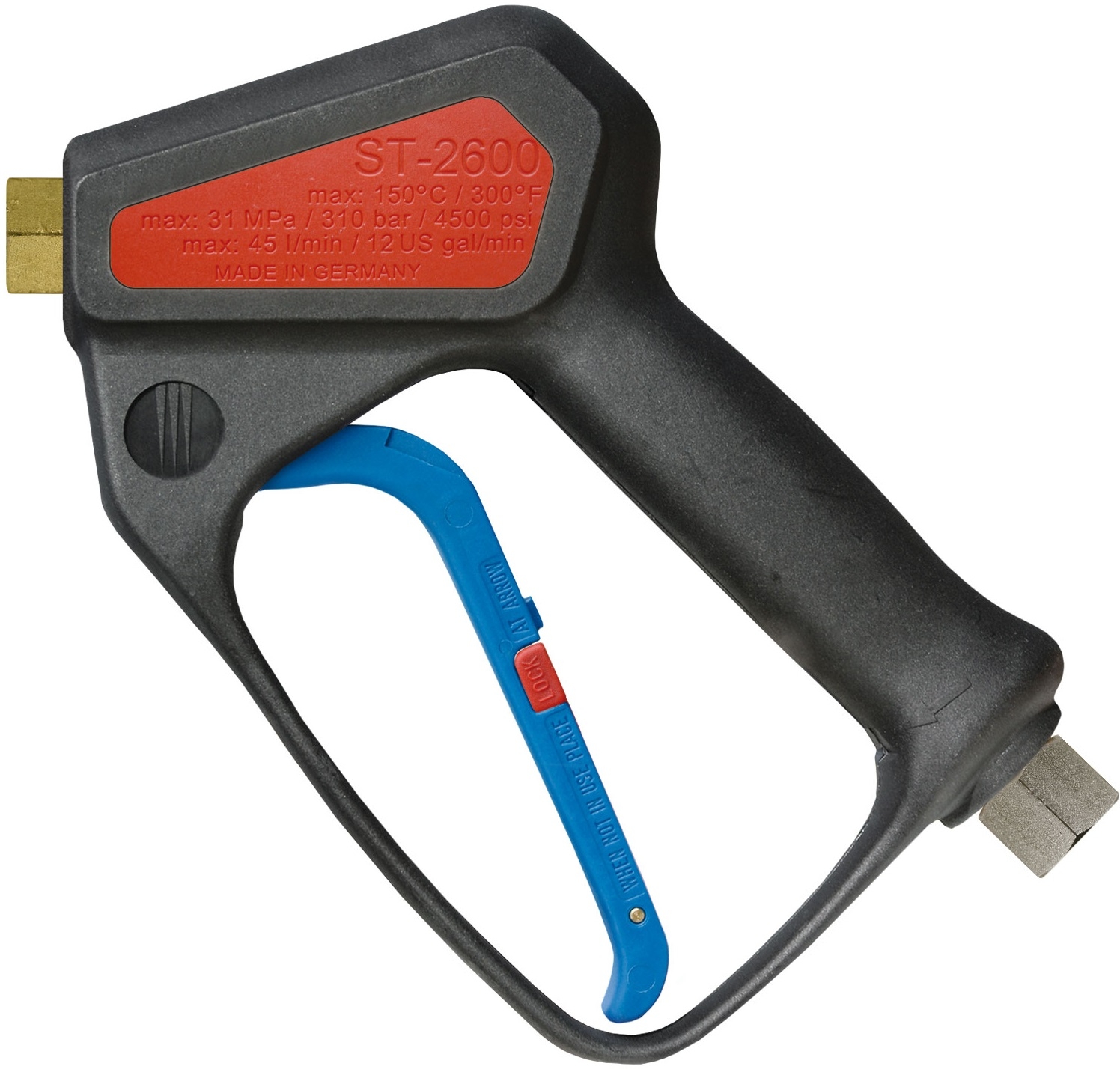

ST2600 WASH GUN WITH WEEP STOP 3/8"F SWIVEL
Description
The RM Suttner ST2600 was gun, based on the best selling ST2300 range of Suttner wash guns. This pressure washing gun has the added benefit of being fitted with low trigger force technology. This wash gun has a freeze stop valve fitted, the freeze stop valve is actuated when the pressure falls below around 5 bar.
Technical Spec
| Inlet | 3/8" Female Swivel Inlet |
|---|---|
| Outlet | 1/4" Female |
| Max LPM | 45 LPM |
| Bar | 310 |
| Colour | Red |
| Max Temp °C | 150 |
| Commodity Code | 8424200000 |
| Weight | 0.62 |
| Country of Origin | Germany |
Datasheets
-
202600544 Spare Parts Download
Need help?
Contact G&S 01768 865985
Overview
The Suttner ST2600 range of guns are based on the best selling ST2300 guns, but with the added advantage of being fitted with the LTF (Low Triger Force) trigger system. The LTF system has a 90% less holding force and a 40% less trigger pulling force, than the standard market wash guns. The ST2600 range of guns also allows for the possibility of a private label version, should you require your company name & number to be advertised on the side panel (min number required). These wash guns will work with unloader valves such as the ST261, ST280 and GSVRT3, however they will not work with trapped pressure unloader valves such as the K series from Interpump SKU -10000051.
Wash Gun Opening/Holding forces
- Opening Force: 31N @ 100 bar
- Holding Force: 10N @ 100 bar
Spare Parts
- 1. Housing SKU: 010007342
- 2. Pipe inlet SKU: 070001157
- 3. Swivel SKU: 040001805
- 4. Connection part SKU: 010001420
- 5. Slide bearing SKU: 020008610
- 6. Pin SKU: 040007060
- 7. Support plate SKU: 040007059
- 8. Axle for trigger SKU: 040007081
- 9. Pressure coil SKU: 040007062
- 10. Plastic housing with handle SKU: 020008615
- 11. Plastic housing SKU: 202300457
- 12. Screw SKU: 040000051
- 13. Label red SKU: 020008619
- 14. Repair kit swivel SKU: 200300100
- 15. Weep valve SKU: 202300465
- 16. Piston rod complete SKU: 202300380
- 17. Trigger complete SKU: 202600418
