1200MM ST72 FOAM LANCE - 2.3MM NOZZLE - YELLOW - 10/15 LPM
Description
Technical Spec
| Inlet | KEW Spigot Male |
|---|---|
| Max LPM | 15 LPM |
| Material | Stainless Steel |
| Bar | 250 |
| Angle in Degrees° | 0 |
| Colour | Yellow |
| Length | 1200mm |
| Max Temp °C | 80 |
| Nozzle Size | 2.3mm |
| Commodity Code | 8424200000 |
| Weight | 1.17 |
| Country of Origin | Germany |
Datasheets
-
Easyfoam365 professional foam cleaning Download
Need help?
Contact G&S 01768 865985
Overview
| Flow | Nozzle Diameter |
|---|---|
| 11-15 lpm | 2.3 mm |

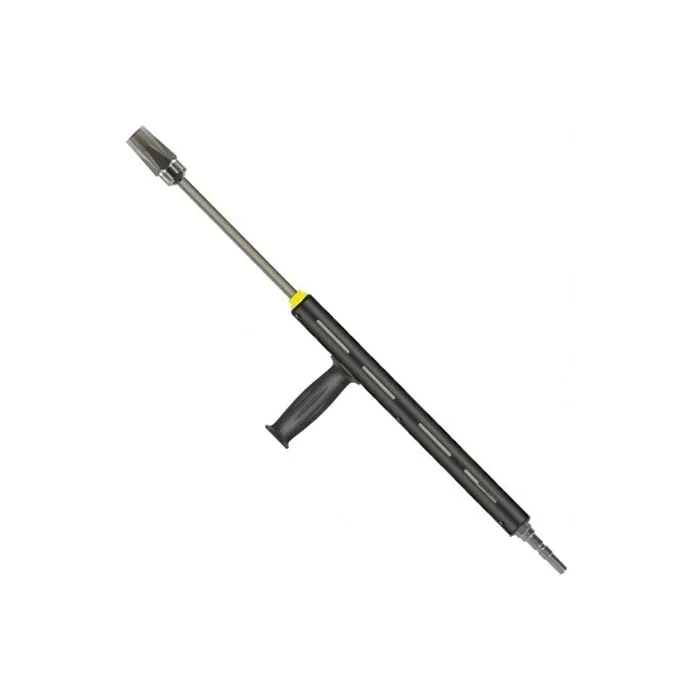

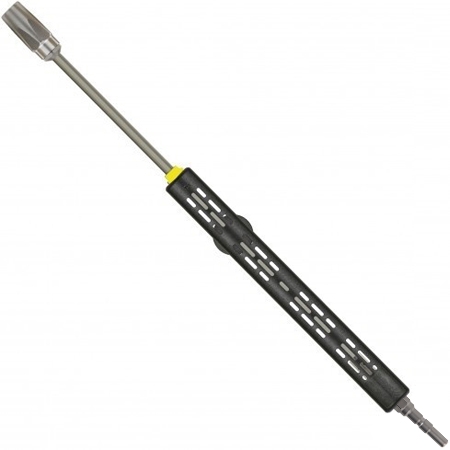

ST72 Foam Lance (Yellow 11 - 15 lpm)

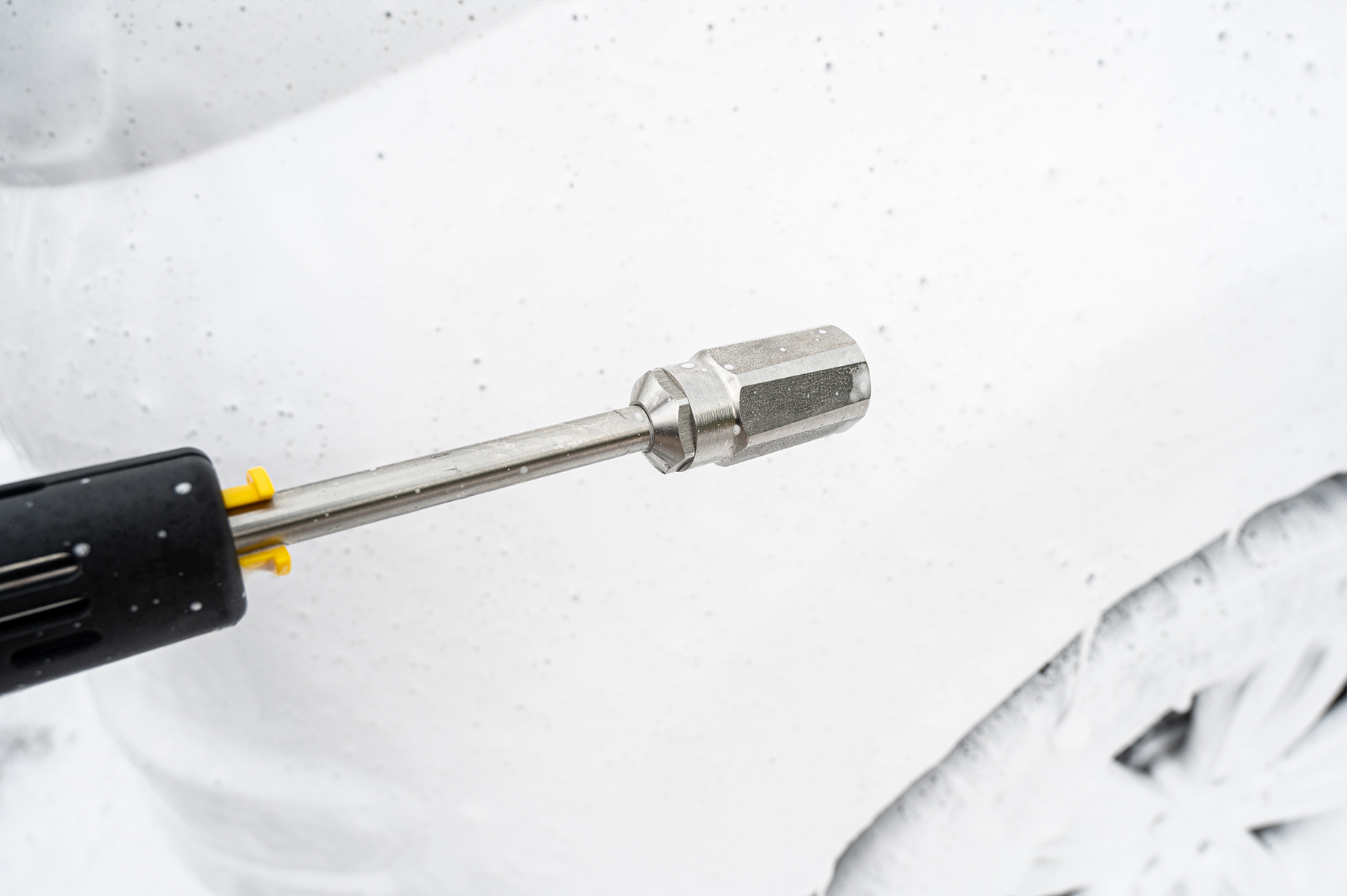

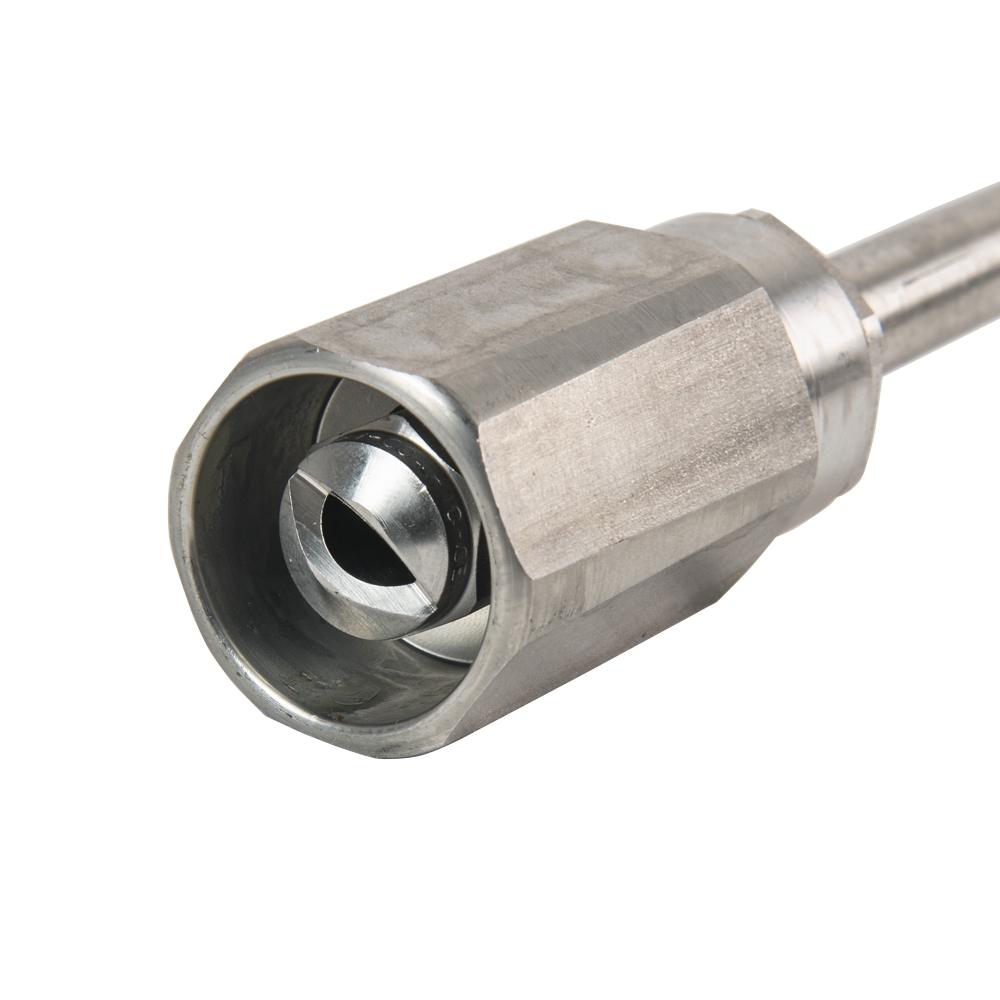

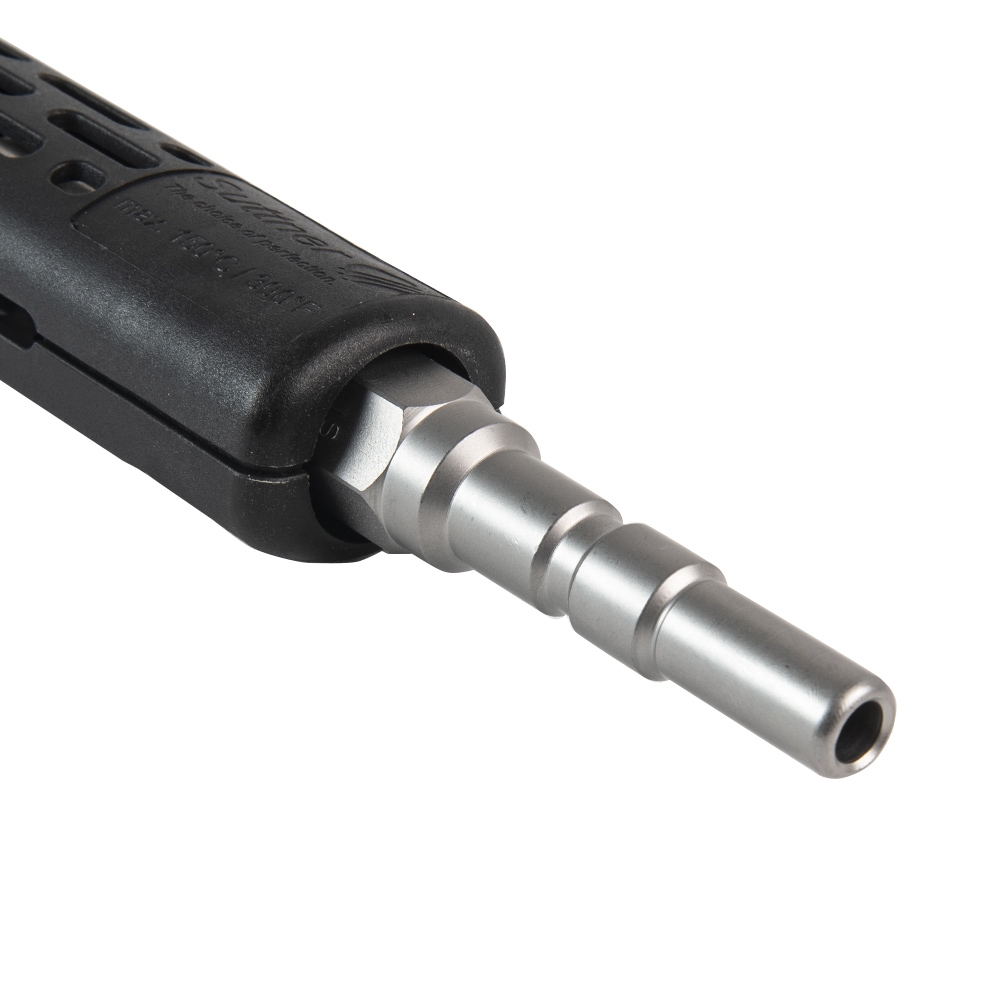

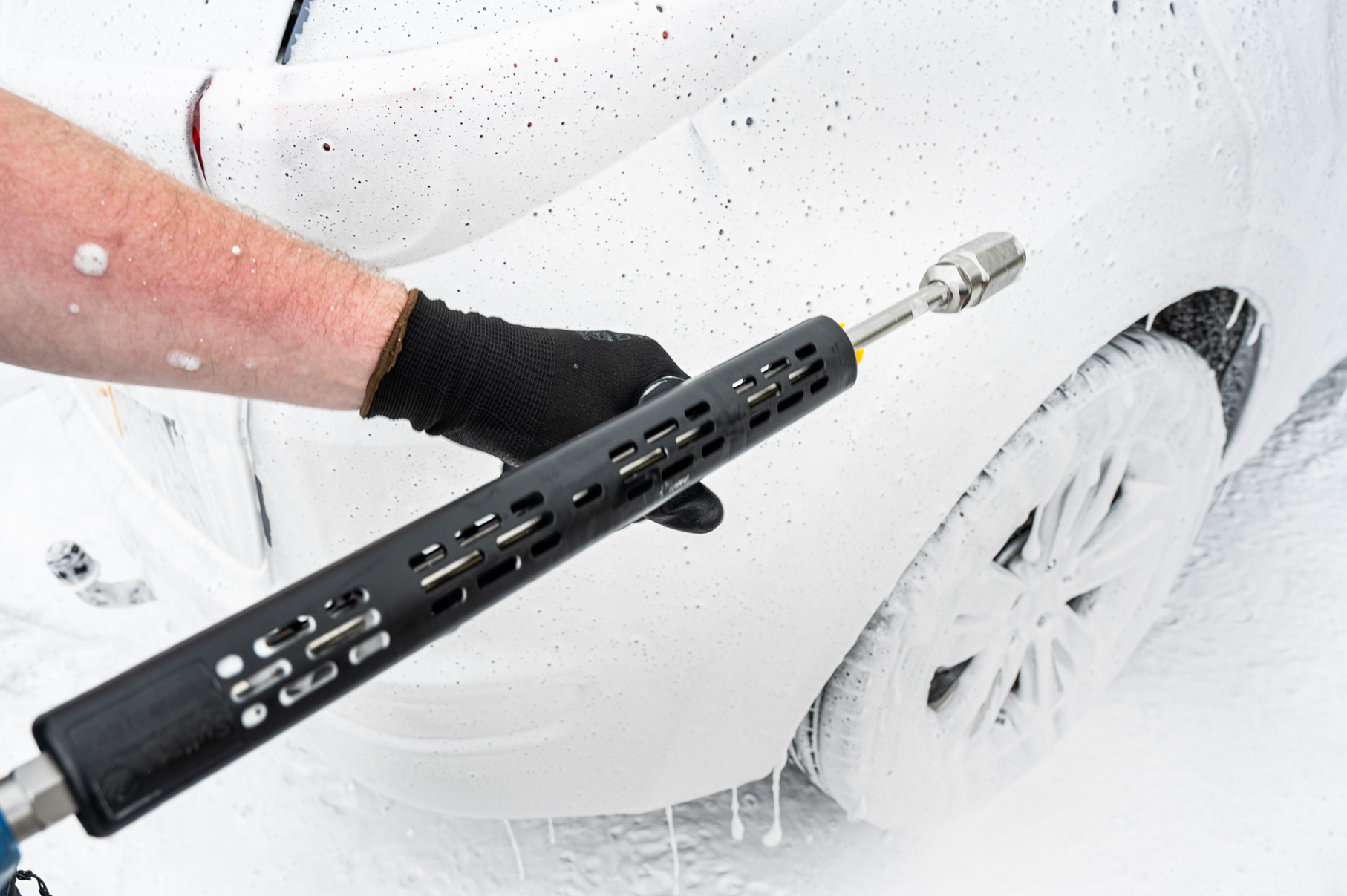

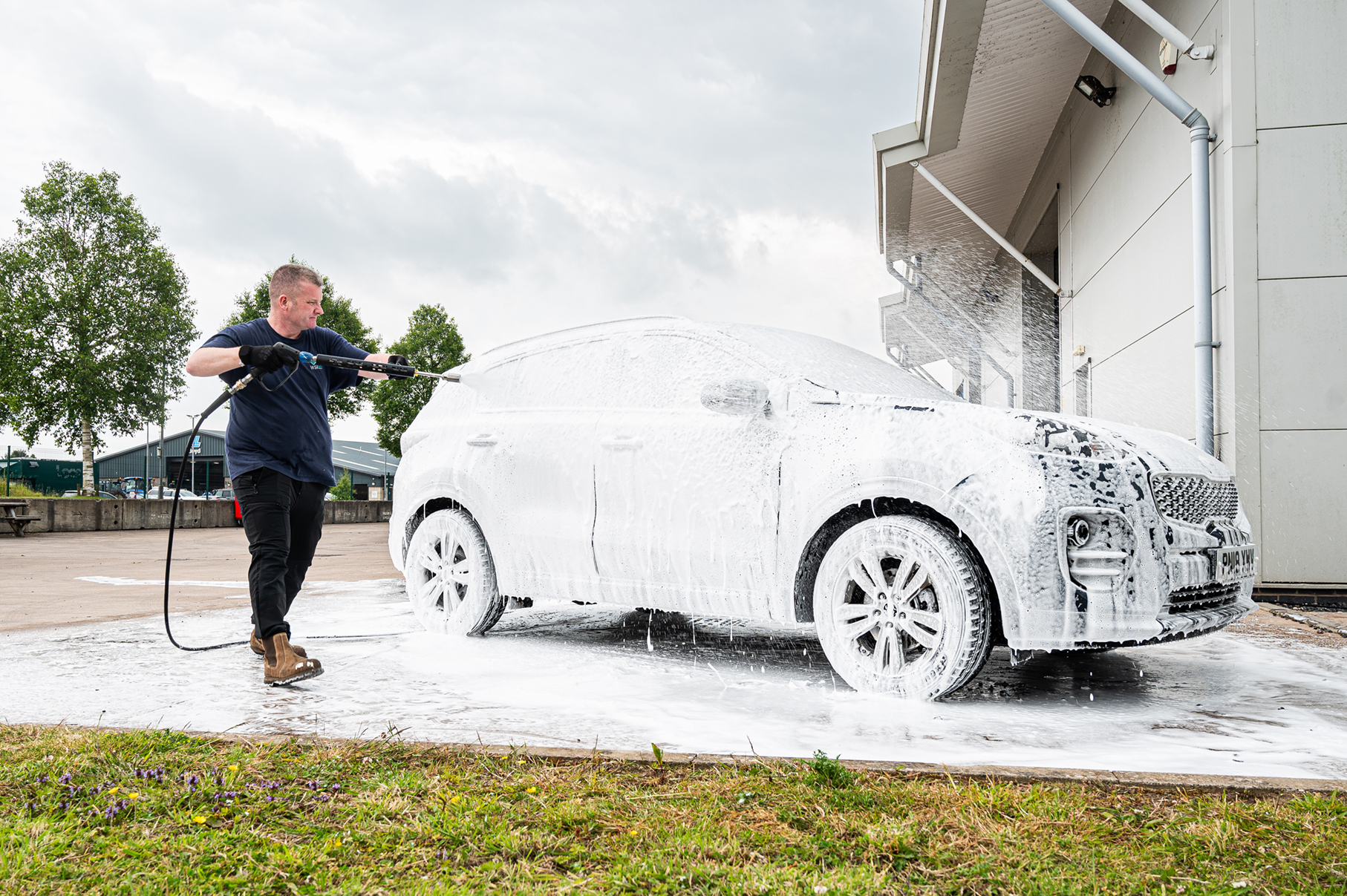

 The ST72 foam lance, manufactured in Germany by RM Suttner, is a high-quality tool designed for industrial and vehicle pre-cleaning applications. This heavy-duty lance is constructed from stainless steel, featuring a built-in air injector, a vented handle, a KEW spigot inlet, and a 2.3mm nozzle for precise foam application. Using foam with the ST72 lance effectively breaks down oils, dirt, and grime, while softening stubborn deposits for easier removal. For optimal results on vertical surfaces, foam should be applied from the bottom upwards without overlapping, as overlapping makes the foam heavier and causes it to slide down more quickly. Additionally, a foam injector is required for proper use of this product. The ST72 foam lance by RM Suttner combines durability and efficient design, making it an excellent choice for heavy-duty cleaning tasks.
| ST72 with Vented Grip & Side Handle | ST72.1 with 'no Excess Spray' Body & Side Handle | ||||||||
| Length | 600 | 1200 | 600 | 1200 | 600 | 1200 | 600 | 1200 | |
| Inlet | Nozzle size | 1/4"M | 1/4"M | QR Spigot | QR Spigot | 1/4"M | 1/4"M | QR Spigot | QR Spigot |
| 9-11 lpm | 2.0mm | - | - | - | - | 200072633 | 200072634 | 200072646 | 200072647 |
| 11-15 lpm | 2.3mm | 200072510 | 200072610 | 200072512 | 200072612 | 200072625 | 200072626 | 200072648 | 200072649 |
| 15-21 lpm | 3.2mm | 200072520 | 200072620 | 200072522 | 200072622 | 200072629 | - | 200072653 | - |
Help with sizes
Foam Injector size guide.
Use the below chart to help you select the correct injector size.
Pressure
Flow
| 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 190 | 200 | 210 | 220 | 230 | 240 | 250 | ||
| 10 |
2.2 (15) |
2.0 (15) |
1.8
(13) |
1.7
(10) |
1.6
(075) |
1.5 (07) |
1.4
(07) |
1.3
(05) |
|||||||||||||||||
| 11 |
2.2 (15) |
2.0 (15) |
1.9 (13) |
1.8 (13) |
1.7
(10) |
1.6
(075) |
1.5 (07) |
1.4
(07) |
1.3
(05) |
||||||||||||||||
| 12 |
2.2 (15) |
2.1 (15) |
2.0 (15) |
1.9 (13) |
1.8 (13) |
1.7
(10) |
1.6
(075) |
1.5
(07) |
1.4
(07) |
1.3 (05) |
|||||||||||||||
| 13 |
2.2 (15) |
2.1 (15) |
1.9
(13) |
1.8
(13) |
1.7
(10) |
1.6
(075) |
1.5
(07) |
1.4
(07) |
14 |
2.2 (15) |
2.1 (15) |
2.0 (15) |
1.9
(13) |
1.8
(13) |
1.7
(10) |
1.6
(075) |
1.5
(07) |
1.4
(07) |
|||||||
| 15 |
2.2 (15) |
2.1 (15) |
2.0 (15) |
1.9
(13) |
1.8
(13) |
1.7
(10) |
1.6
(075) |
1.5
(07) |
1.4 (07) |
||||||||||||||||
| 16 |
2.2 (15) |
2.1 (15) |
2.0
(15) |
1.9 (13) |
1.8
(13) |
1.7
(10) |
1.6
(075) |
||||||||||||||||||
| 18 |
2.3 (20) |
2.2 (15) |
2.1
(15) |
2.0
(15) |
1.9
(13) |
1.8
(13) |
1.7
(10) |
1.6 (075) |
|||||||||||||||||
| 19 |
2.3 (20) |
2.3 (20) |
2.2 (15) |
2.1
(15) |
2.0
(15) |
1.9 (13) |
1.8
(13) |
1.7
(10) |
|||||||||||||||||
| 21 |
1.9
(13) |
1.8
(13) |
1.7
(10) |
||||||||||||||||||||||
You will need to know the flow rate and pressure of the pressure washer or system that the injector is to be installed.
Firstly select the closest flow rate (round up if required)
Then move right across the chart until you are at the closest pressure column.
The top number (1.6) is the injector size.
For foam injectors not using compressed air the number in brackets underneath is the correct ST75 foam lance size required.
| Alternative | ||||
| Injector Size | Injector Part No | ST75 Size | ST75 Foam Lance | ST72 Foam Lance |
| 1.3 | 200160500 | 05 | 200075576 | 200072633 |
| 1.4 | 200160505 | 07 | 200075572 | 200072633 |
| 1.5 | 200160510 | 07 | 200075572 | 200072633 |
| 1.6 | 200160515 | 075 | 200075572 | 200072633 |
| 1.7 | 200160520 | 10 | 200075573 | 200072625 |
| 1.8 | 200160525 | 13 | 200075578 | 200072625 |
| 1.9 | 200160530 | 13 | 200075578 | 200072625 |
| 2.0 | 200160535 | 15 | 200075579 | 200072629 |
| 2.1 | 200160540 | 15 | 200075579 | 200072629 |
| 2.2 | 200160545 | 15 | 200075579 | 200072629 |
| 2.3 | 200160550 | 20 | Please Contact | 200072629 |
