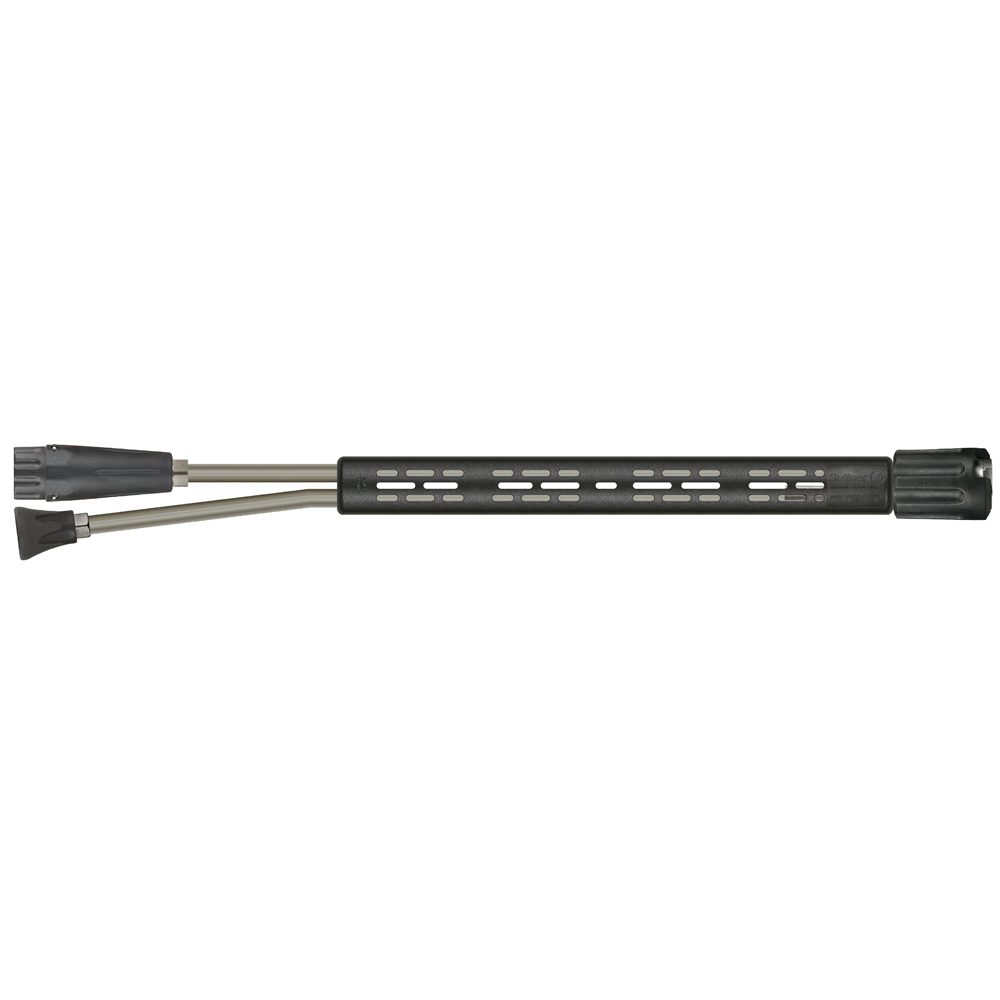

ST175 TWIN FOAM LANCE 1/4"F INC 08 NOZ
Description
By simply turning the switch over valve (ST58) on the lance the user can switch from foam to rinse easily. It is important to release the trigger when turning the switch over valve.
Technical Spec
Inlet | 1/4" Female |
---|---|
Max LPM | 45 LPM |
Bar | 350 |
Max Temp °C | 100 |
Commodity Code | 8424200000 |
Weight | 1.50 |
Country of Origin | Germany |
Need help?
Contact G&S 01768 865985
Help with sizes
Use the below chart to help you select the correct injector size.
You will need to know the flow rate and pressure of the pressure washer or system that the injector is to be installed.
Firstly select the closest flow rate (round up if required)
Then move right across the chart until you are at the closest pressure column.
The top number (1.6) is the injector size.
The number in brackets underneath is the recommended ST75 foam lance required.
Alternative | ||||
Injector Size | Injector Part No | ST75 Size | ST75 Foam Lance | ST72 Foam Lance |
1.3 | 200160500 | 05 | 200075576 | 200072633 |
1.4 | 200160505 | 07 | 200075572 | 200072633 |
1.5 | 200160510 | 07 | 200075572 | 200072633 |
1.6 | 200160515 | 075 | 200075572 | 200072633 |
1.7 | 200160520 | 10 | 200075573 | 200072625 |
1.8 | 200160525 | 13 | 200075578 | 200072625 |
1.9 | 200160530 | 13 | 200075578 | 200072625 |
2.0 | 200160535 | 15 | 200075579 | 200072629 |
2.1 | 200160540 | 15 | 200075579 | 200072629 |
2.2 | 200160545 | 15 | 200075579 | 200072629 |
2.3 | 200160550 | 20 | Please Contact | 200072629 |
