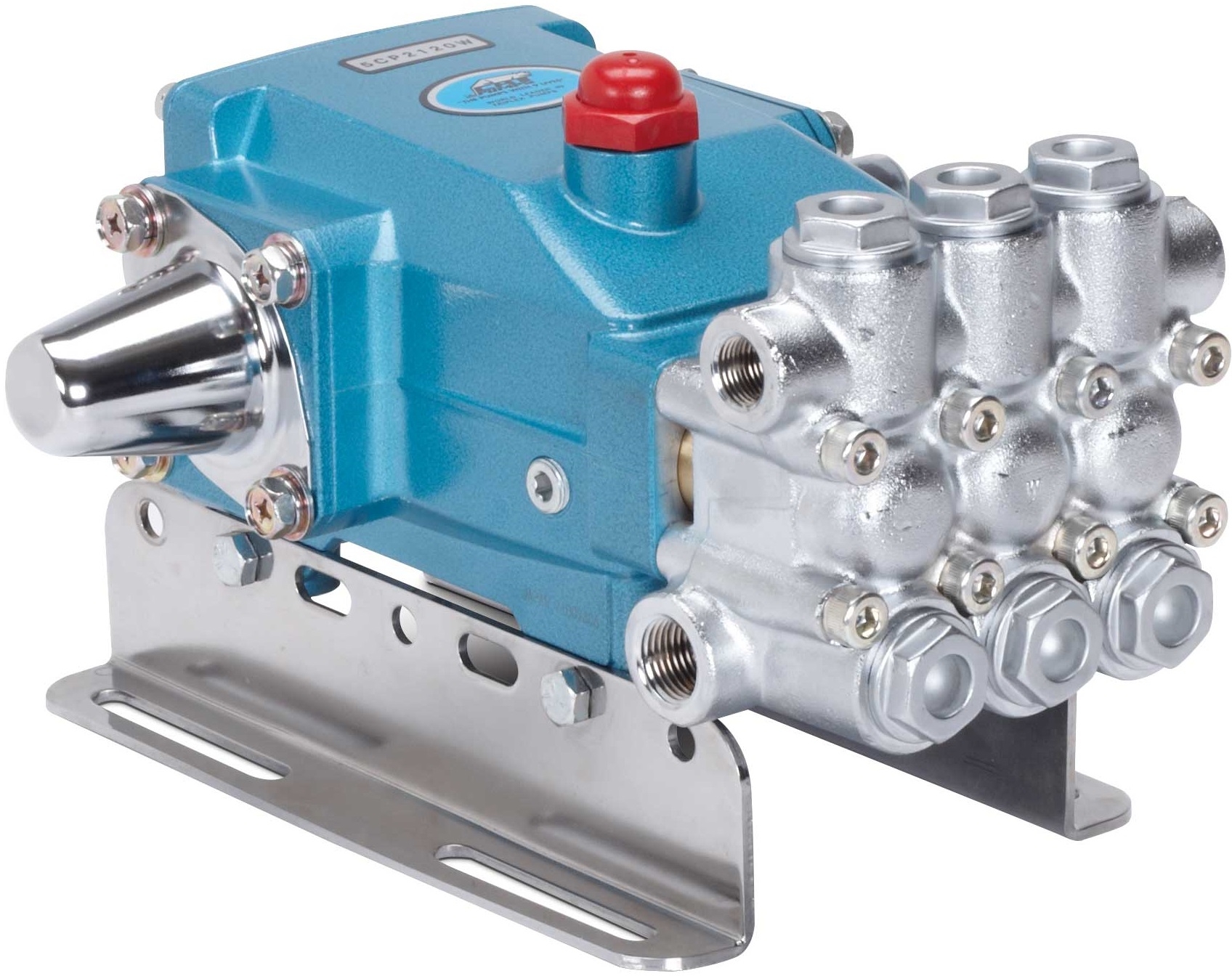

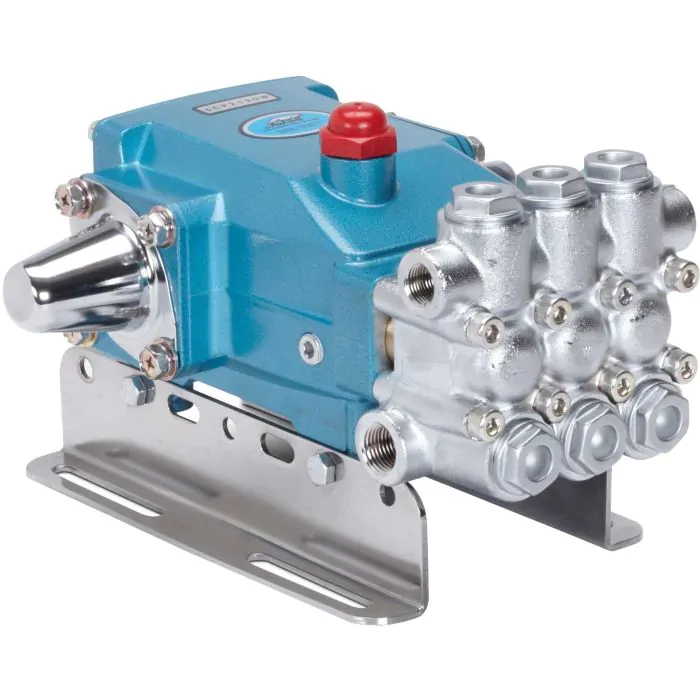

CAT PUMP 19 LPM 210 BAR 5CP5120

CAT PUMP 19 LPM 210 BAR 5CP5120

SKU

Technical Spec

Inlet 1/2" Female
Outlet 3/8" Female
Max LPM 19 LPM
Bar 210
RPM 1420 RPM
Dimensions - Ceramic Width 18mm

Description

CAT's 5CP series pumps are ideal for vehicle wash, site cleaning, test rigs and pressure washers.



CAT pumps are supplied without oil in the chassis and require filling before use.

Datasheets

Need help?

Contact G&S 01768 865985

Overview

CAT Pumps

CAT's 5CP series pumps are ideal for vehicle wash, site cleaning, test rigs and pressure washers. Their triplex piston design improves efficiency and reduces pulsation, while their internal seals are cooled during use which greatly increases service life.

  • High Pressure: These pumps can output a maximum pressure of 210 bar.
  • Compact: Measuring just 277 x 254 x 146mm, these pumps can fit into the smallest of setups.

Using this pump? Click here to see which accessories we recommend.

Measurements

Technical Specification

  • Max Flow Rate: 19LPM
  • Max Working Pressure: 210bar / 3,000psi
  • Minimum Required Power: 7.7kW / 10.3HP
  • RPM: 1415
  • Shaft Size: 20mm
  • Piston Width: 18mm
  • Inlet x Outlet: 1/2"F x 3/8"F
Measurements

Export Information

  • Commodity Code: 8413502090
  • Country of Origin: Japan
  • Weight: 9.0kg

G&S Penrith stock a wide range of spare parts and repair kits for our pumps, see below for the ones to suit this model.

CAT pumps are supplied without oil in the chassis and require filling before use.

We would recommend an oil change after 50 and 200 hours of use.
