CAT COUPLING 20 X 28 (5CP/310/340)
SKU
1330721
Description
Suits pump models:
5PFR
5CP
Pump Shaft diameter: 20mm
Motor Shaft Diameter: 28mm
IEC Motor Frame Size B34 mounting: 100 to 112mm
Suits Bell Housing models: 30715, 701730

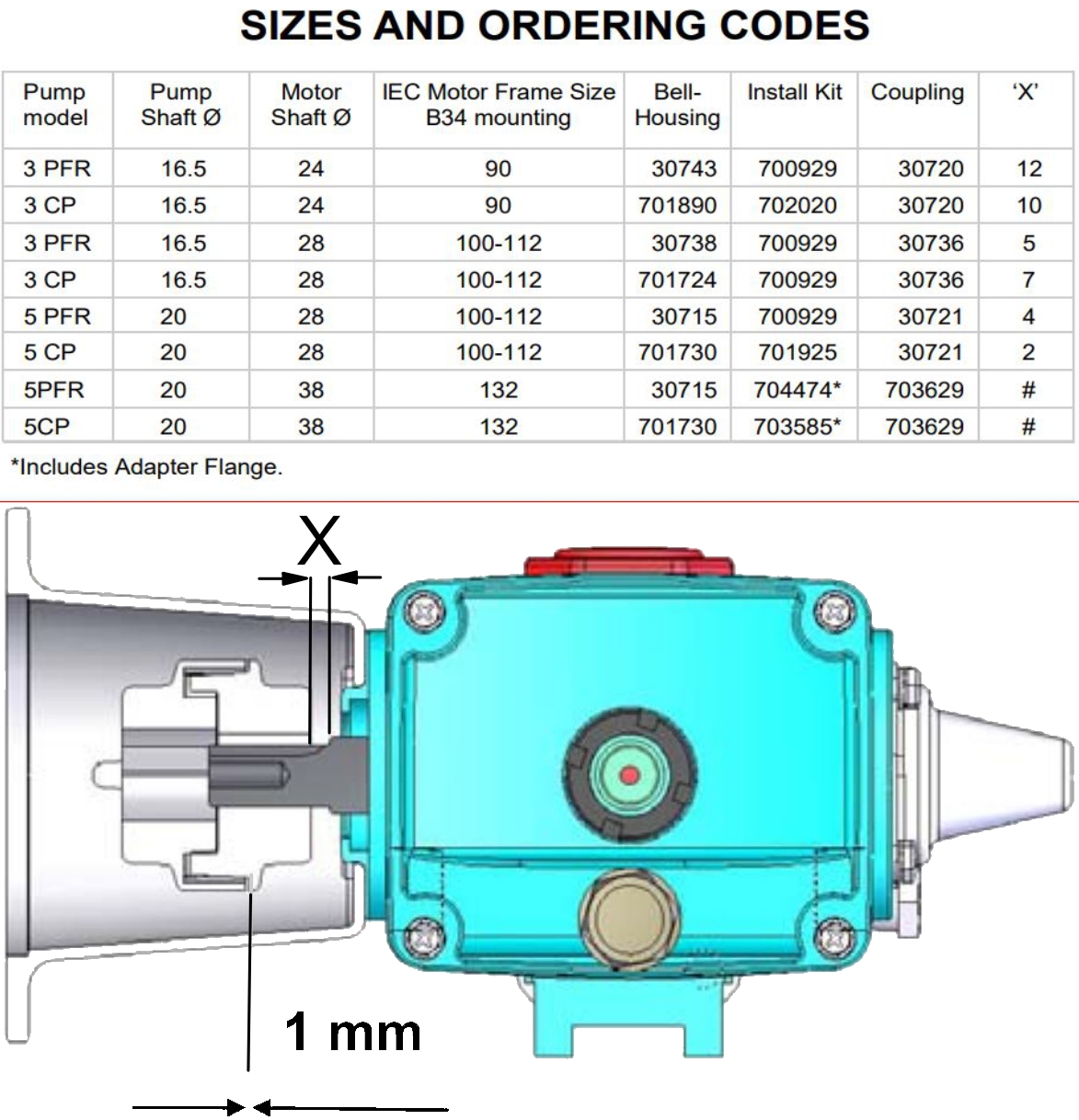

Install Kit numbers:
5PFR = 700929
5CP = 701925
Technical Spec
Weight | 0.37 |
---|---|
Country of Origin | United Kingdom |
Datasheets
Need help?
Contact G&S 01768 865985
Overview

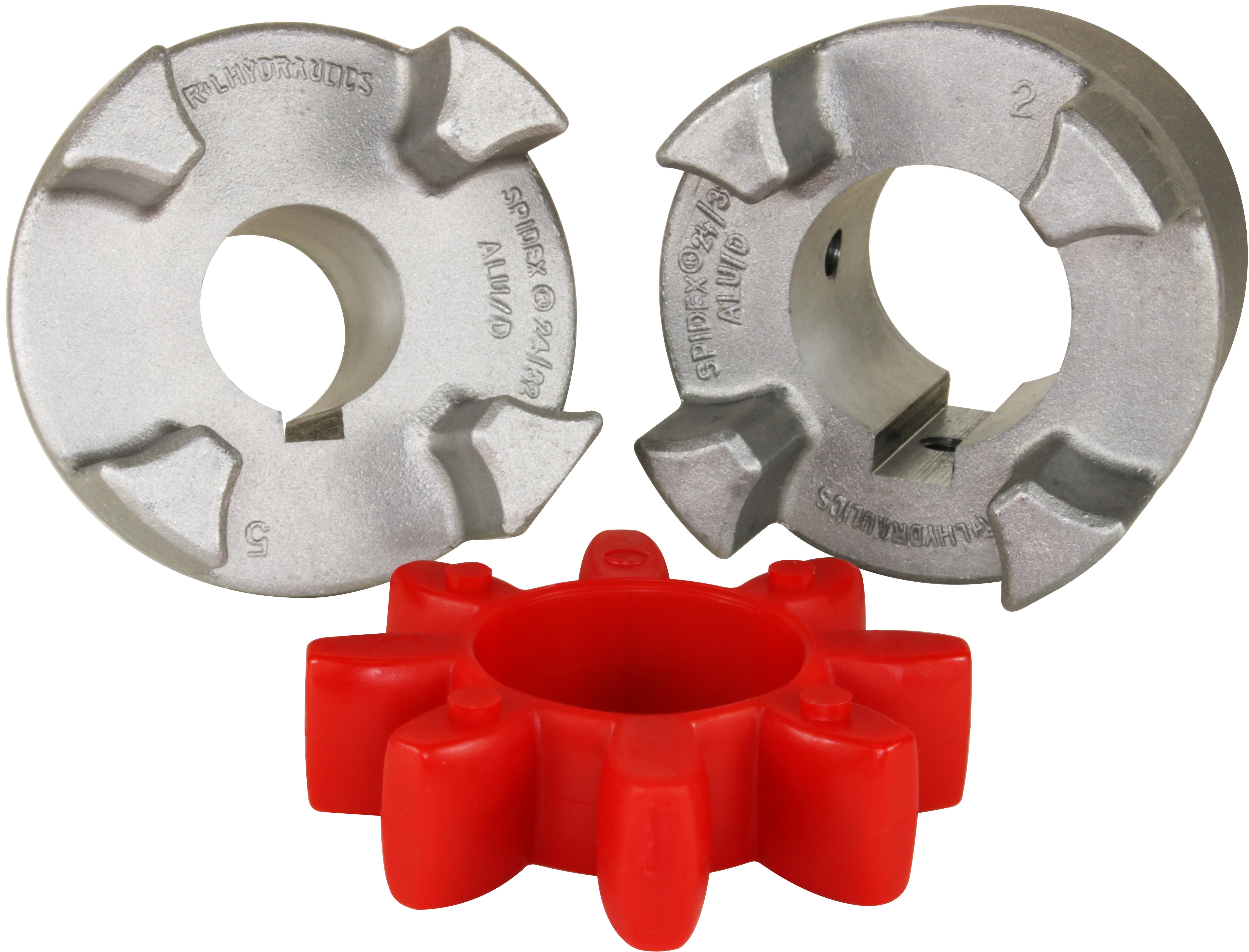

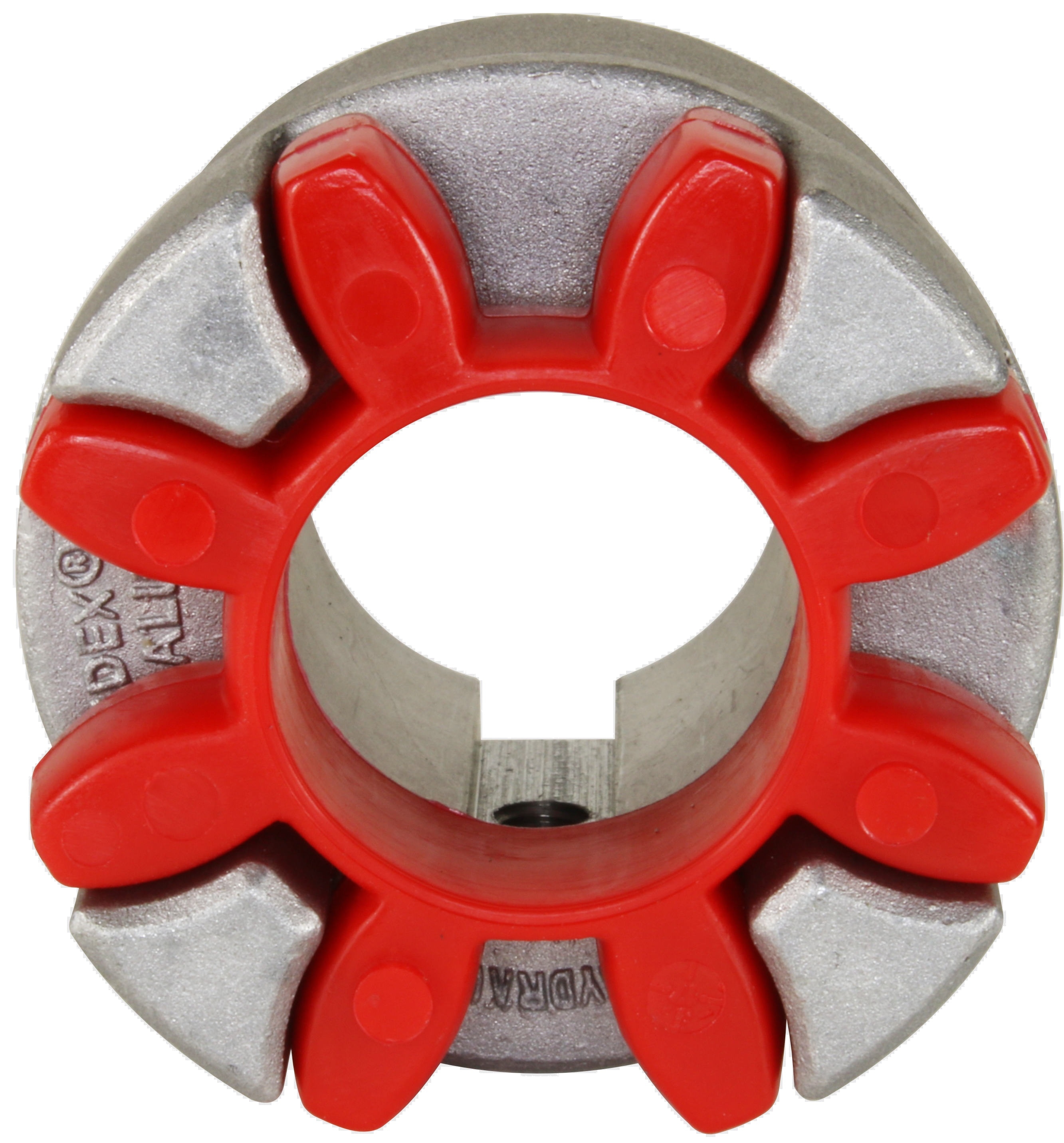

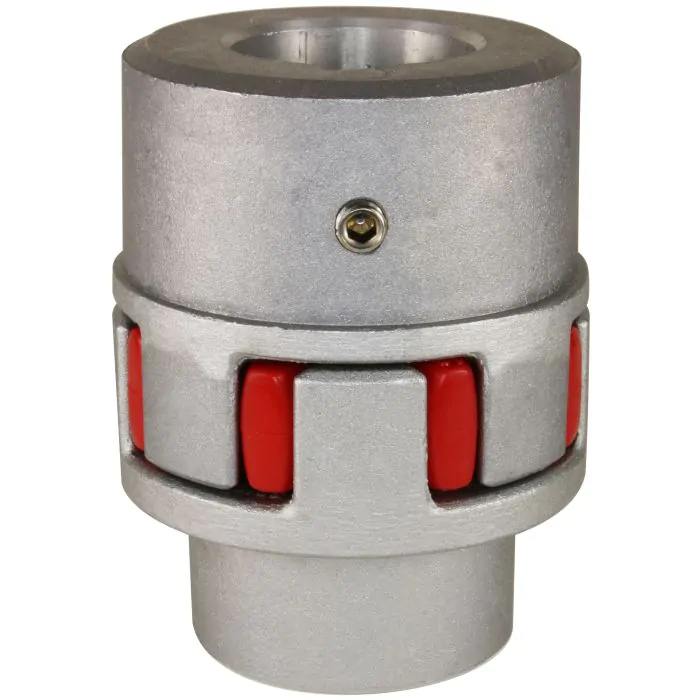

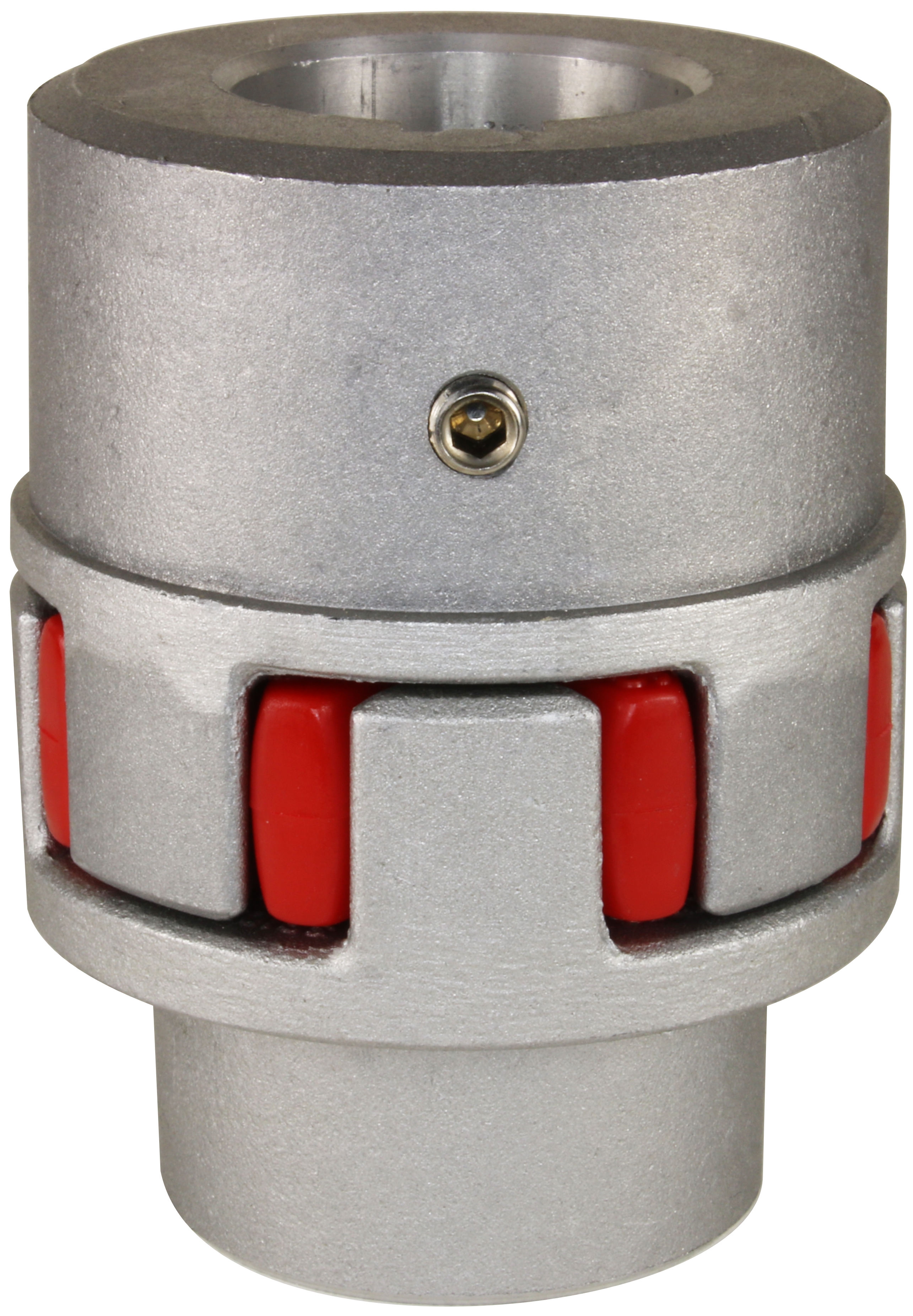

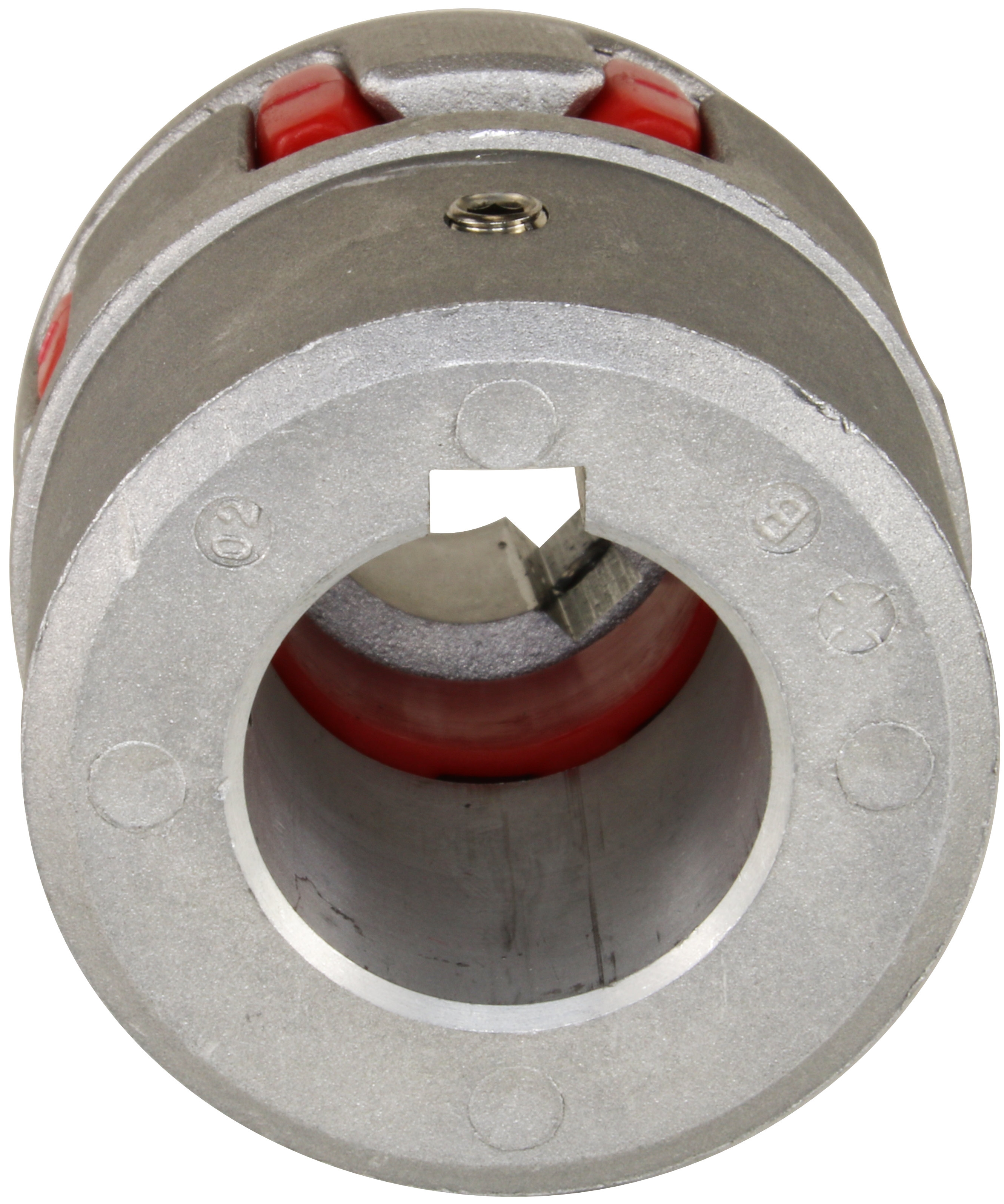

CAT drive coupling.
Features and benefits:
-Pump mounts directly onto motor, eliminating the need for drive belts, guards and baseplate.
-Fits to standard metric motors with B14 face.
-Prevents contact with moving parts, improving personal safety.
-Compact design reduces installation space.
-Simple self-alignment minimises side-loading on pump and motor shaft, extending bearing life.
-Special finger-type coupling designed for extended life; tolerates high temperature and high running speeds.
