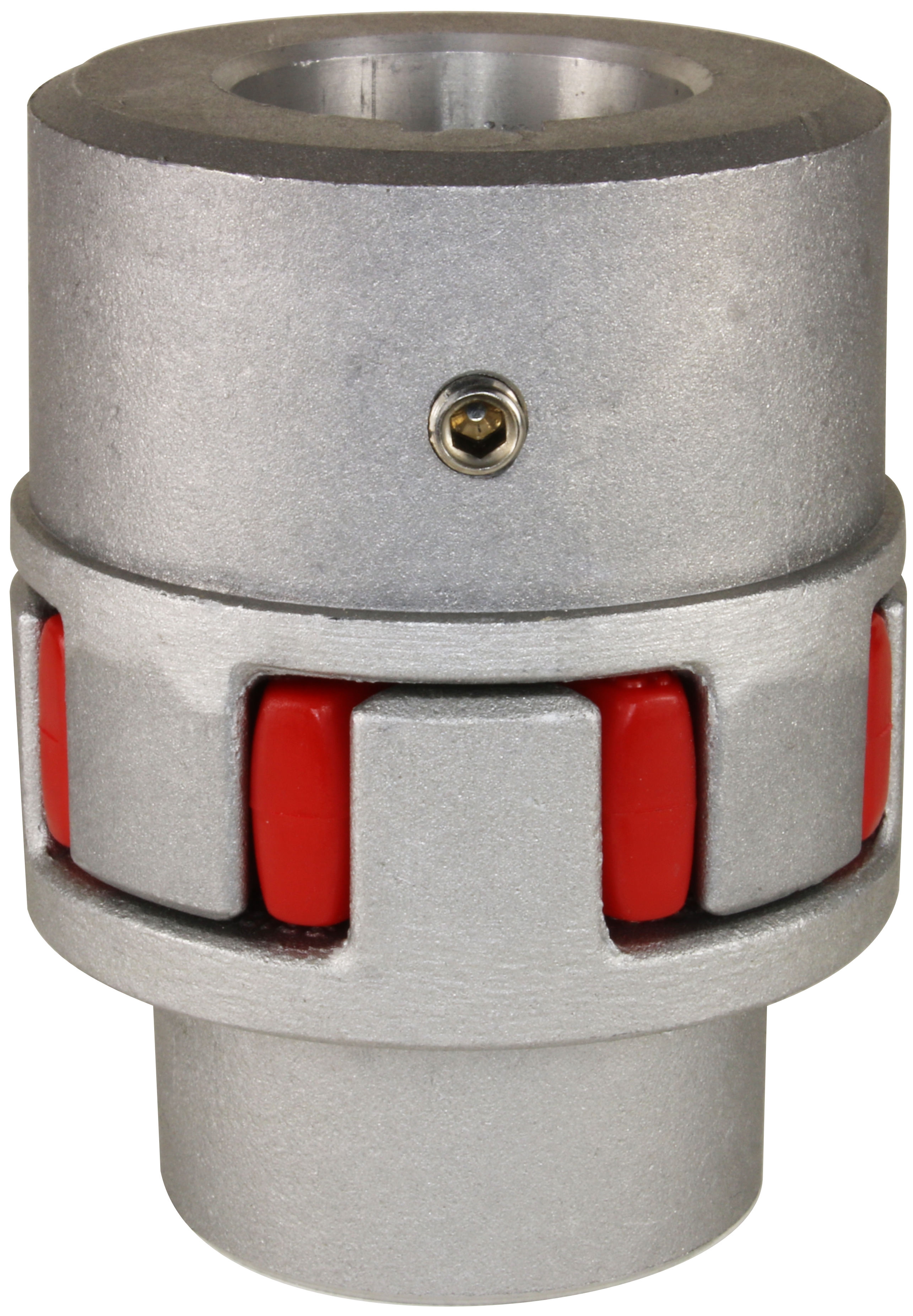

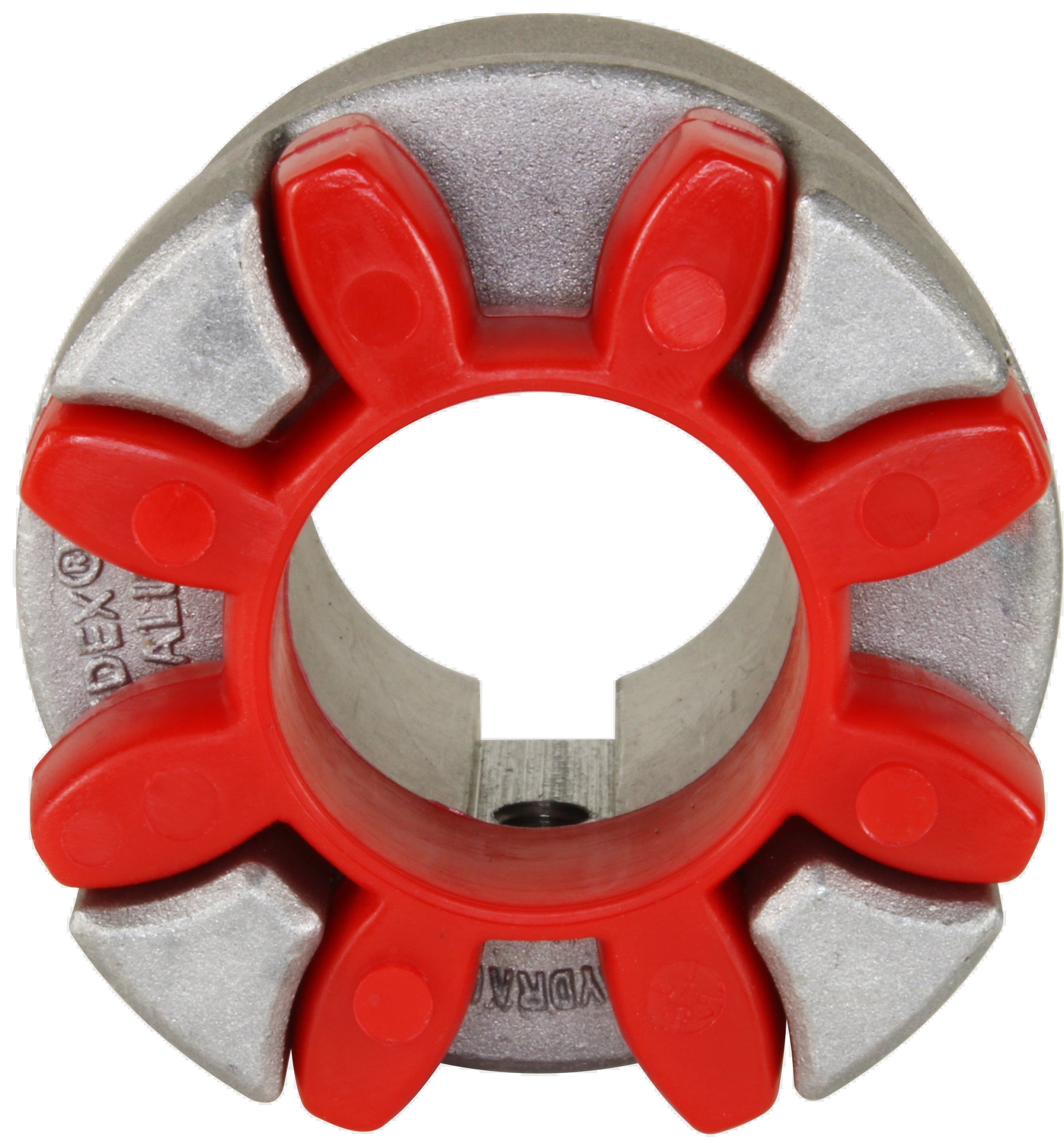

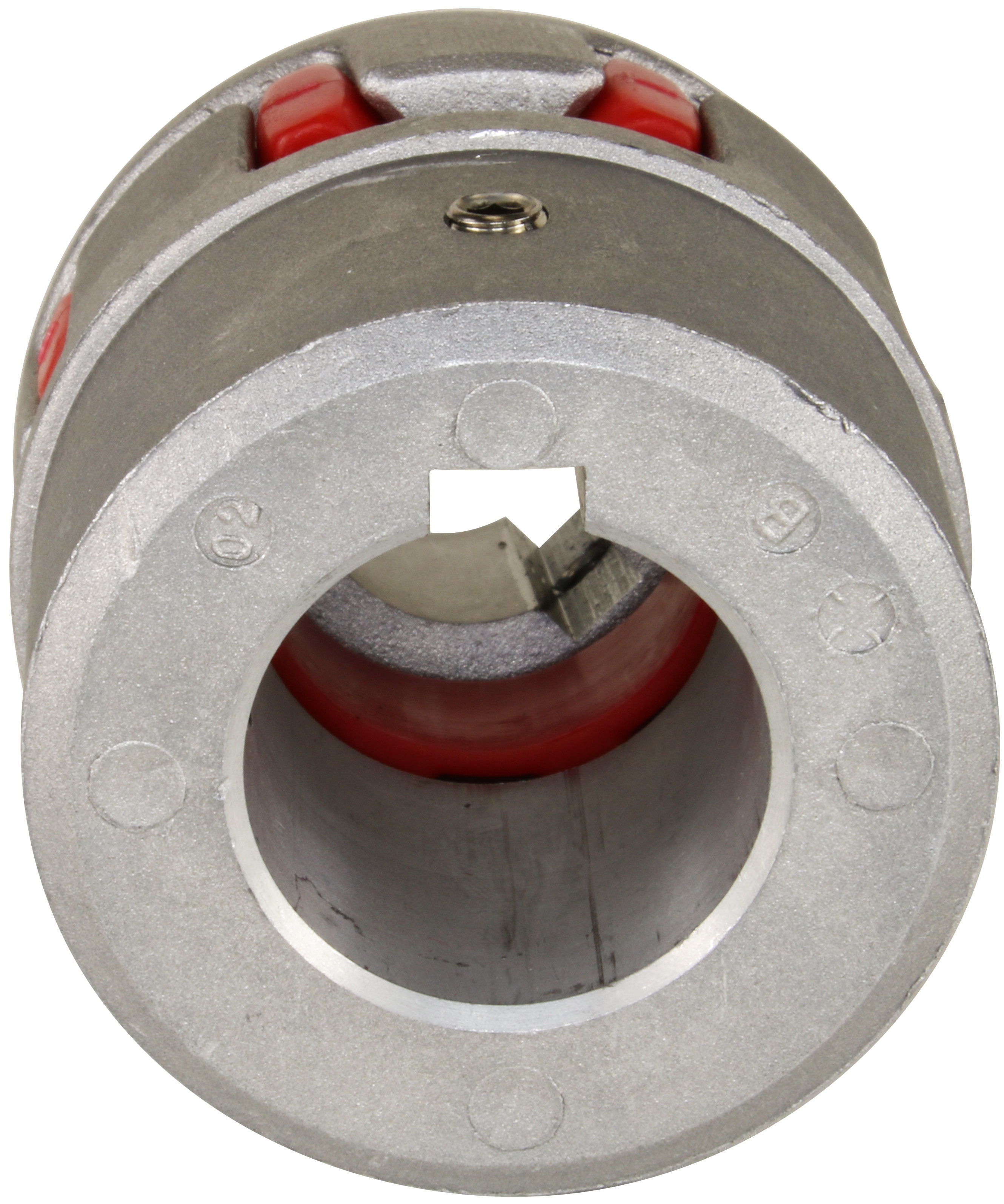

CAT COUPLING 16.5 X 28 (3CP/230/240/270)

CAT COUPLING 16.5 X 28 (3CP/230/240/270)

SKU

Description

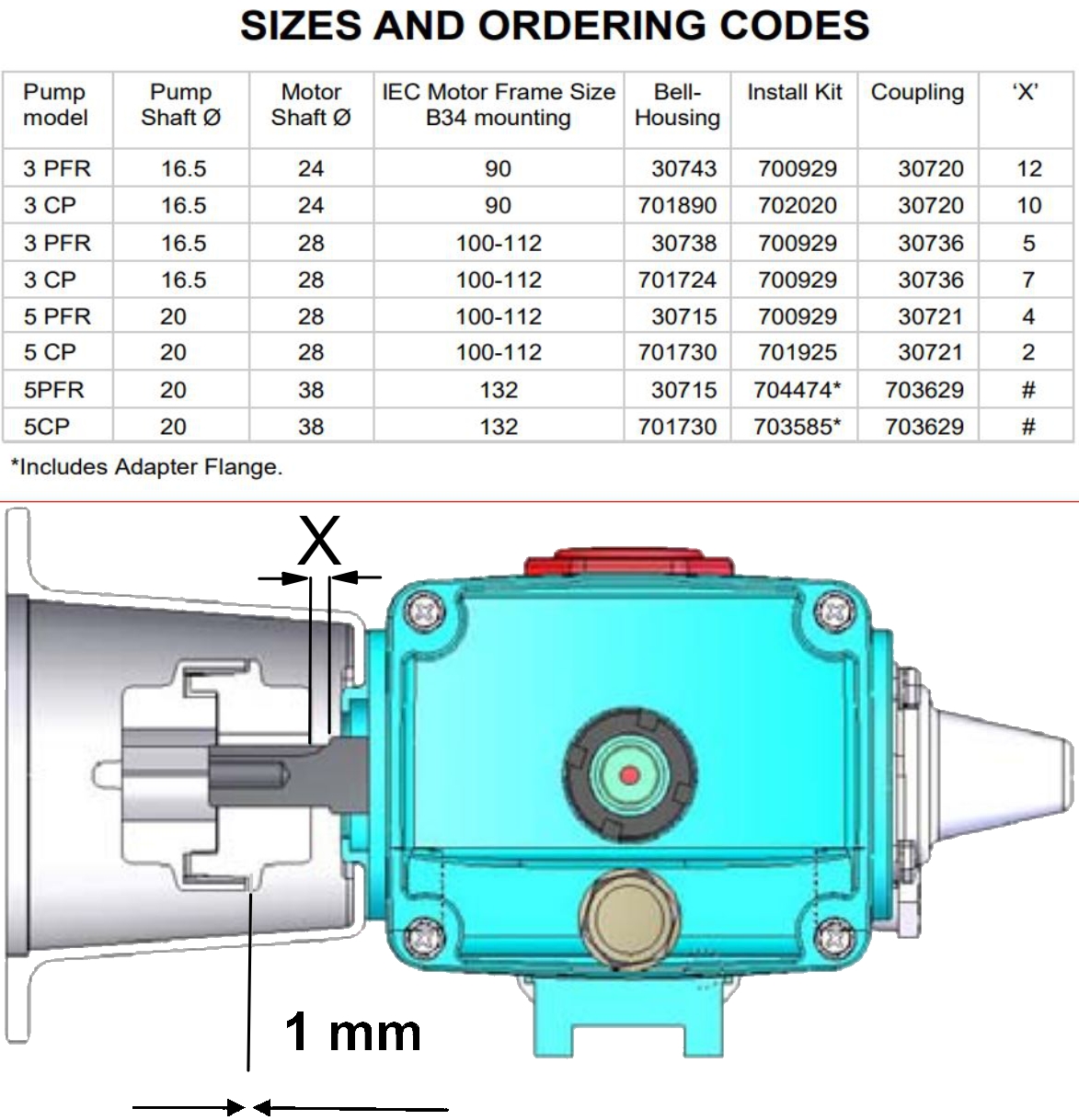

Suits pump models:
3PFR
3CP

Pump Shaft diameter: 16.5mm
Motor Shaft Diameter: 28mm
IEC Motor Frame Size B34 mounting: 100 to 112mm
Suits Bell Housing models: 30738, 701724
Install Kit numbers: 700929

Technical Spec

Weight0.39
Country of OriginUnited Kingdom

Datasheets

Need help?

Contact G&S 01768 865985

Overview

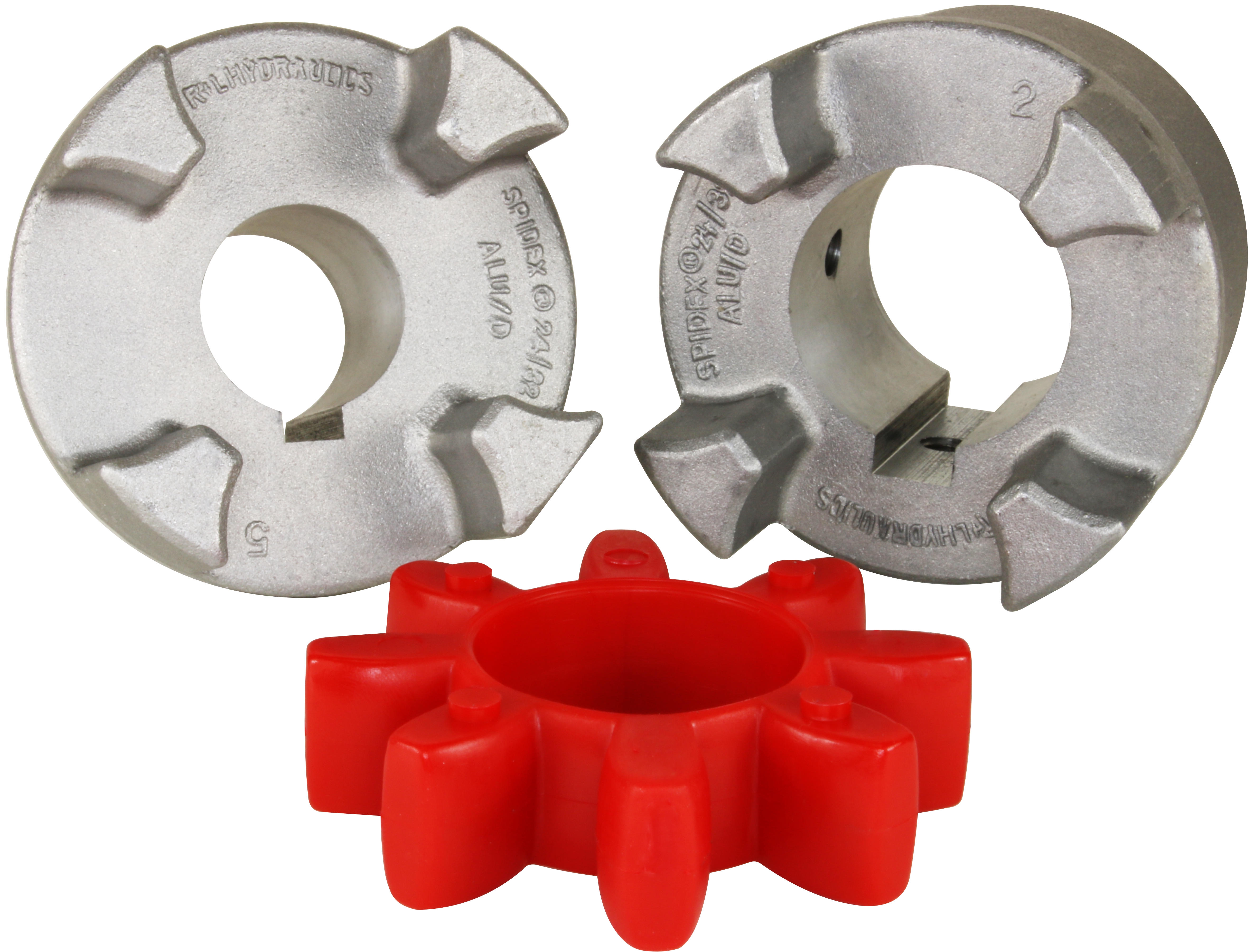

CAT drive coupling Features and benefits: - Pump mounts directly onto motor, eliminating the need for drive belts, guards and baseplate - Fits to standard metric motors with B14 face - Prevents contact with moving parts, improving personal safety - Compact design reduces installation space - Simple self-alignment minimises side-loading on pump and motor shaft, extending bearing life - Special finger-type coupling designed for extended life; tolerates high temperature and high running speeds
