MAZZONI FIREBOX 25 LTR 250 BAR -12V
Description

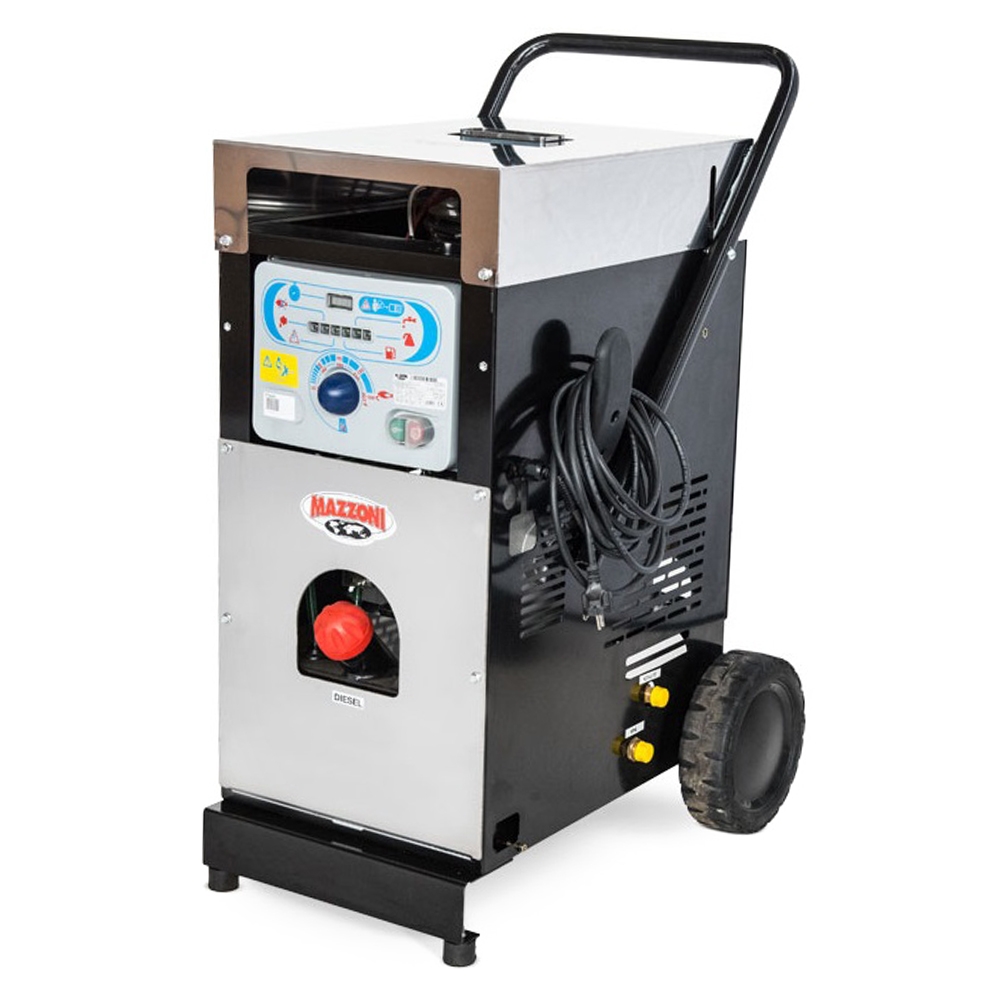

The Mazzoni firebox is a great product for converting cold water to hot water when more effective cleaning is required using a pressure washer. The unit is electrically powered and diesel heated, the Mazzoni firebox has the ability to heat cold water up to 150 ° C. The heaters manufactured by Mazzoni, are high performance and low power consumption. The values of gas emissions are lower than those required by recent European regulations. The structure of the heater is made of stainless steel on the outside.
Technical Spec
Max LPM | 25 LPM |
---|---|
Voltage | 12 V |
Bar | 250 |
Commodity Code | 8419190000 |
Weight | 70.00 |
Country of Origin | Italy |
Datasheets
Need help?
Contact G&S 01768 865985
Overview
Mazzoni Firebox

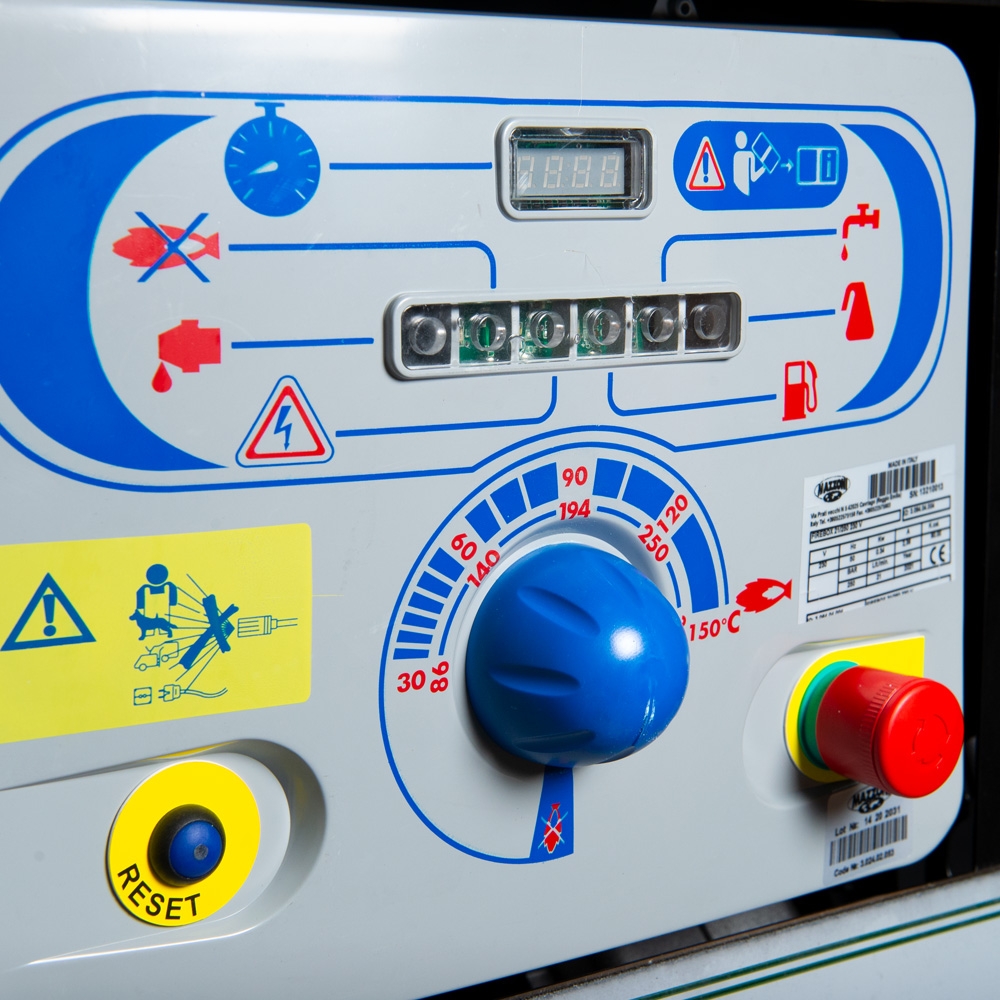

The Mazzoni firebox is a great product for converting cold water to hot water when more effective cleaning is required using a pressure washer. The unit is electrically powered and diesel heated, it has the ability to heat cold water up to 150 ° C and features a stainless steel cover on a powder coated steel frame. The unit gives high performance with low fuel consumption and has a control panel with switch and thermostat to regulate the temperature. It also features flame control, flow switch, level switch, LED alarm, safety valve and hours counter display.
What are the advantages of hot water cleaning?
Enhanced Cleaning Power: Hot water helps to break down and dissolve dirt, grease, oil, and other stubborn substances more effectively than cold water. The increased temperature accelerates chemical reactions, making it easier to remove grime from surfaces.
Faster Cleaning: The combination of heat and pressure allows for quicker cleaning. Hot water pressure washers can often achieve the same level of cleanliness in less time compared to cold water counterparts. This increased efficiency is particularly beneficial for large-scale cleaning projects.
Improved Sanitization: Hot water is more effective at killing bacteria, viruses, and other microorganisms. This makes hot water pressure washing ideal for environments where sanitation is crucial, such as in the food industry, healthcare facilities, and public spaces.
Reduced Chemical Dependency: The heat in hot water pressure washing can reduce the reliance on chemical cleaning agents. This is environmentally friendly and can also result in cost savings, as less chemical detergent may be needed to achieve the desired cleaning results.
Effective Degreasing: Hot water is especially effective in cutting through and removing grease and oil. This is particularly important in automotive, industrial, and commercial settings where machinery and equipment may accumulate oily residues.
Improved Surface Penetration: Hot water can penetrate porous surfaces more effectively, allowing for a deeper and more thorough cleaning. This is beneficial when cleaning surfaces like concrete, where contaminants can penetrate into the pores.
Technical Features
- Flame Control
- Flow switch, Level Switch, Pressure Switch
- Fuel pump directly connected to fan by a coupling
- High performance and low fuel consumption heater
- Minimum pressure 15bar water supply
- Hours counter
- Safety valve
- Electrical box with power switch and thermostat to regulate temperatures
- Stainless Steel cover and base in painted steel
How it works


FIREBOX | FLOW | PRESSURE | VOLTAGE | FUEL NOZZLE | ELECTRODE | FUEL PUMP | FUEL SOL COIL | DRIVE PEG | IGN TRANS | HT LEAD | COIL + MAT | THERMOSTAT | BURNER MOTOR | FLOW SWITCH | MAGIC EYE KIT |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAZ013 | 15 | 250 | 12 | 67540 | MAZ104 | MAZ446 | GS404004013 | MAZ440 | MAZ125 | MAZ424 | MAZHC15 | MAZ135 | MAZ404 | MAZ451 | MAZ421 |
MAZ021 | 15 | 250 | 240 | 67540 | MAZ104 | 82120 | GS404004001 | MAZ440 | SCETRA30 | MAZ424 | MAZHC15 | MAZ135 | MAZ407 | MAZ451 | MAZ421 |
MAZ012 | 21 | 250 | 12 | MAZ104 | MAZ446 | GS404004013 | MAZ440 | MAZ125 | MAZ424 | MAZHC25 | MAZ135 | MAZ404 | MAZ451 | MAZ421 | |
MAZ014 | 21 | 250 | 240 | MAZ104 | 82120 | GS404004001 | MAZ440 | SCETRA30 | MAZ424 | MAZHC25 | MAZ135 | MAZ407 | MAZ451 | MAZ421 | |
MAZ020 | 25 | 250 | 12 | MAZ205 | MAZ104 | MAZ446 | GS404004013 | MAZ440 | MAZ125 | MAZ424 | MAZHC25 | MAZ135 | MAZ404 | MAZ451 | MAZ421 |
MAZ019 | 25 | 250 | 240 | MAZ205 | MAZ104 | 82120 | GS404004001 | MAZ440 | SCETRA30 | MAZ424 | MAZHC25 | MAZ135 | MAZ407 | MAZ451 | MAZ421 |
