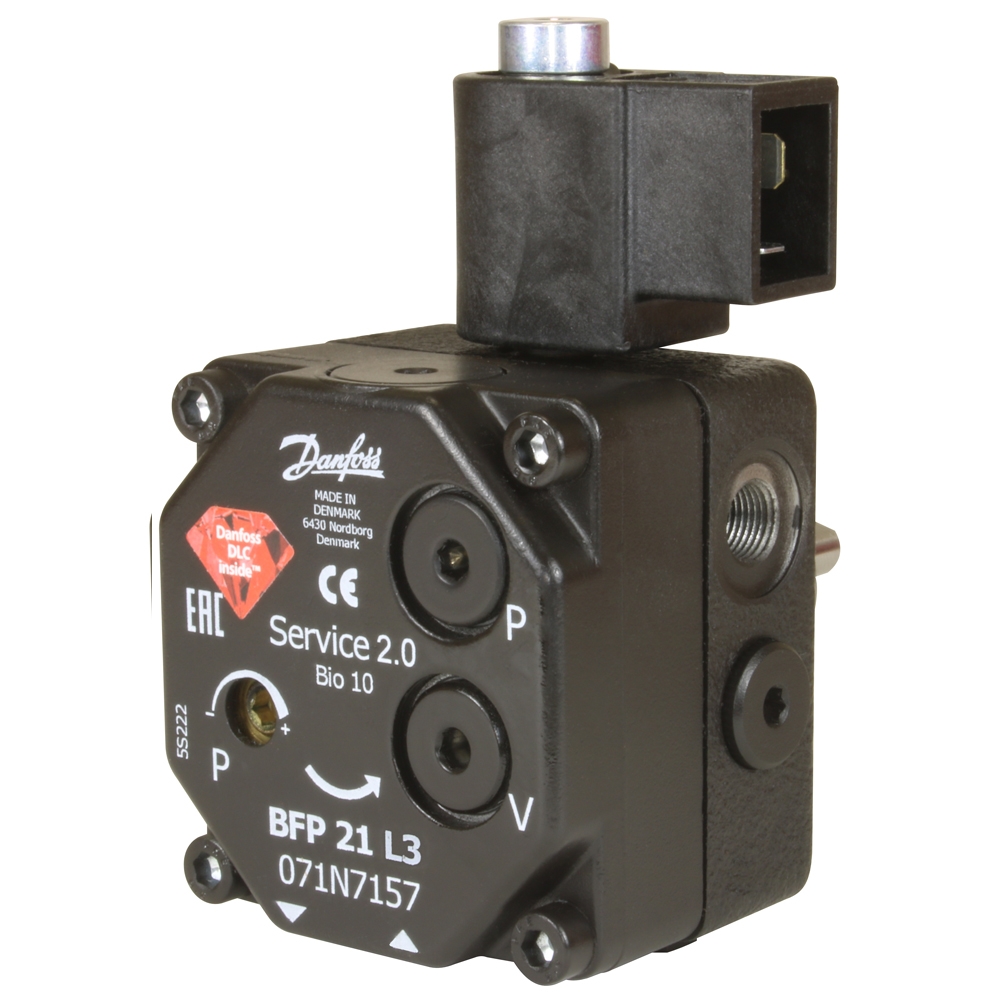

DANFOSS FUEL PUMP BFP 21 L3
Description
Danfoss Diamond service fuel pumps are engineered with Diamond-Like Carbon (DLC) technology, these fuel pumps offer extraordinary robustness, durability, and strength by combining the hardness of diamond with the lubricity of carbon. The result is a pump that lasts up to 10 times longer in critical applications, making it the most reliable choice on the market.
Pressure: Adjustable 7 - 15 Bar
Coil: 230V
Hub: 32mm
Type: BFP21L3
Anti-Clockwise rotation
Technical Spec
| Voltage | 230 V |
|---|---|
| Bar | 15 |
| Colour | Black |
| Commodity Code | 8413603990 |
| Weight | 2.00 |
| Country of Origin | Germany |
Datasheets
-
Danfoss Fuel Pump technical data Download
Need help?
Contact G&S 01768 865985
Overview
Danfoss Diamond series fuel pumps
Introducing the strongest service pumps ever built – the Danfoss Diamond Series (1- and 2-stage). These pumps set a new standard for durability and performance in small commercial and residential markets.
The extra-durable Diamond Coil is designed to withstand more than five times as many cycles in crash tests compared to previous service coils, ensuring long-term performance. These pumps are suitable for both light and heavy oil applications and come with a piston regulator, shut-off function, and built-in filter, making them ideal for a wide range of uses.
With Danfoss Diamond Service Pumps, you’re choosing a solution that offers exceptional power, reliability, and longevity.
Technical Data BFP 20/21
- Viscosity range: (1.3) 1.8 to 12.0 cSt. (mm²/s)
- Filter area / mesh: 11 cm²/200
- Pressure range 7 - 20 bar
- Max pressure in suction inlet/return outlet: 2 bar
- Coil power consumption: 9 W
- Rated voltage: 230V, 50/60 Hz
- Coil enclosure: IP 40
- Shaft/neck: EN 225
